Rear Door Window Regulator: Service and Repair

Removal and Installation

1. Remove the rear door trim panel.




2. Remove the screw and the rear door trim panel bracket.
3. Position the water shield aside.

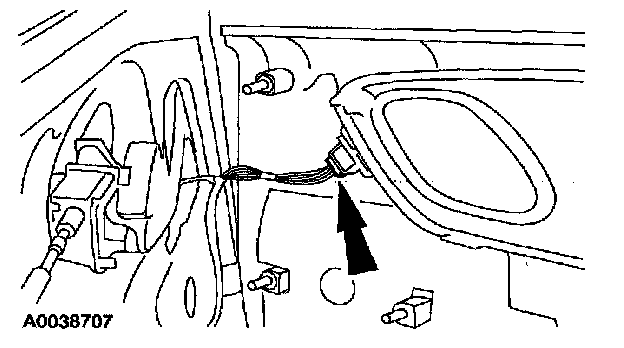

4. Connect the window control switch electrical connector.
5. Lower the rear door window glass to gain access to the screws.




6. Disconnect the window control switch electrical connector.

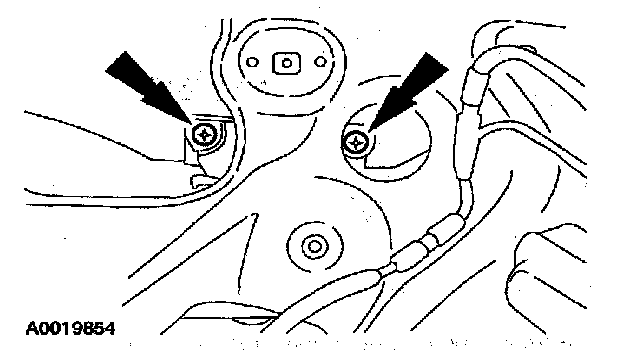

7. Remove the rear door window glass screws.
8. Support the rear door window glass in the full up position.

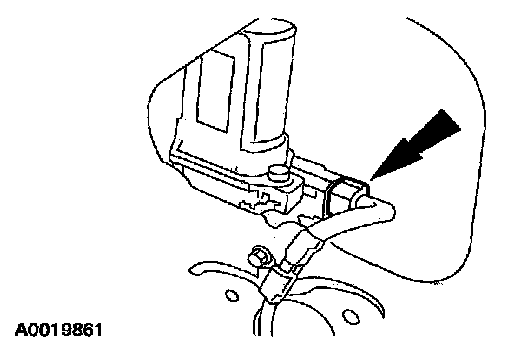

9. Disconnect the rear door power window regulator electrical connector.

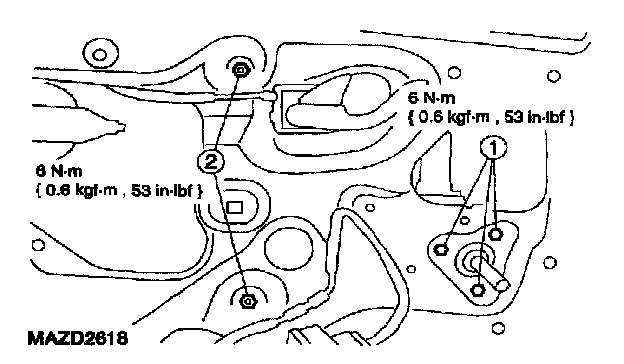

10. Remove the rear door power window regulator assembly.
1. Remove the bolts.
2. Remove the nuts.




11. Remove the rear door window regulator assembly
1. Remove the bolts.
2. Remove the nuts.

12. To install, reverse the removal procedure.
- Cycle the door glass to make sure of correct window glass engagement.
