Home >> Mazda >> 2007 >> 3 L4-2.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> PID/Data Monitor Table >> (Dynamic Stability Control (DSC))

(Dynamic Stability Control (DSC))

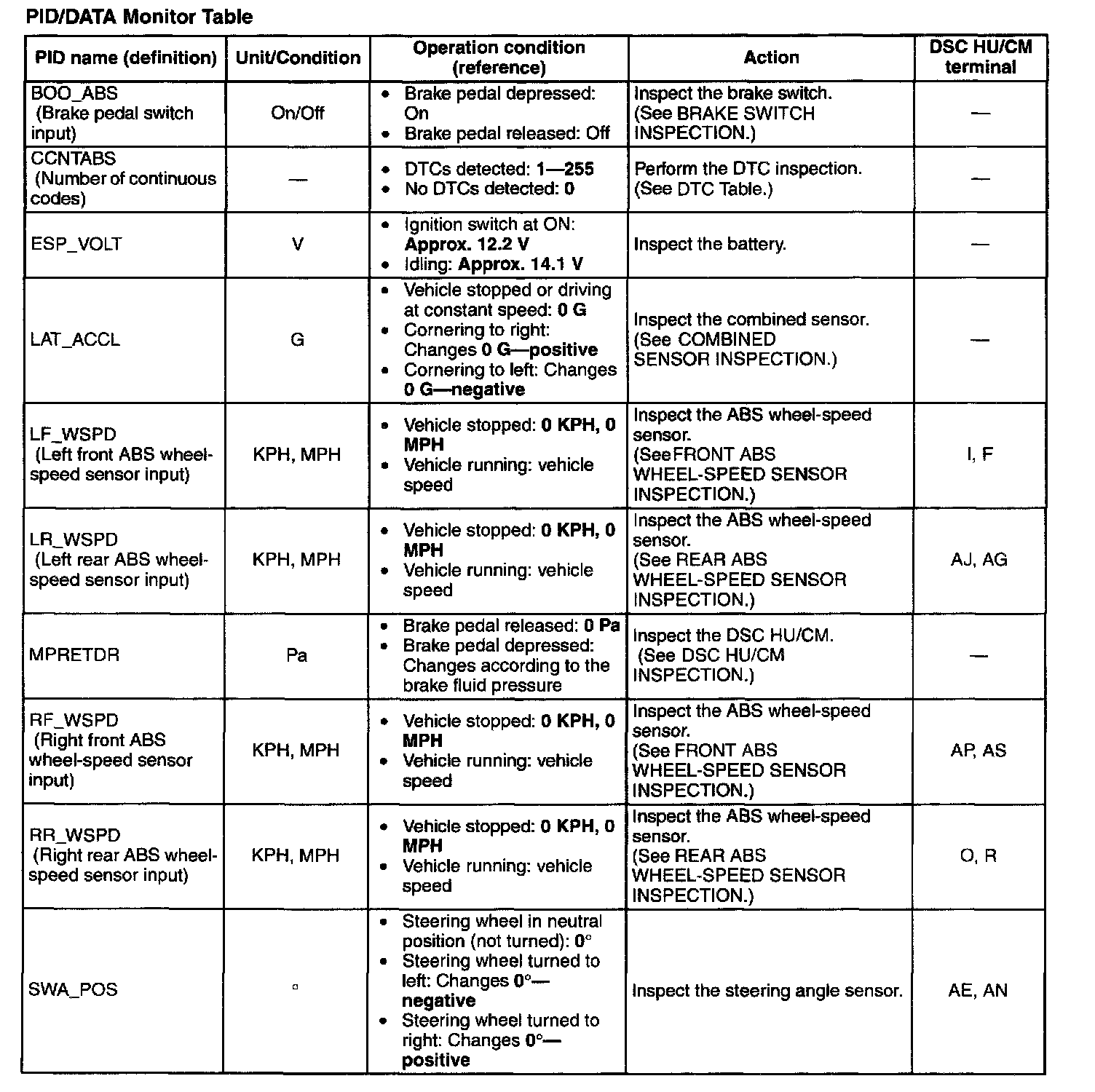

PID/DATA Monitor Table (part 1):

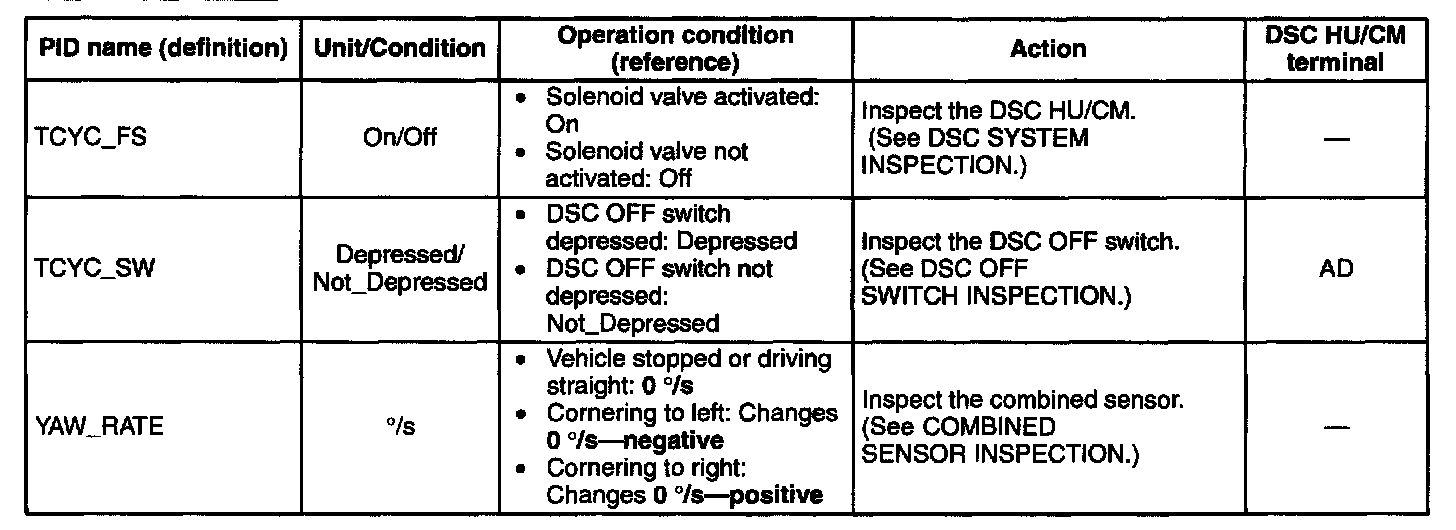

PID/DATA Monitor Table (part 2):
