Home >> Mazda >> 2007 >> 3 L4-2.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Transmission and Drivetrain >> Sensors and Switches - M/T >> Gear Sensor/Switch >> Locations

Gear Sensor/Switch: Locations

MANUAL TRANSAXLE LOCATION INDEX [G35M-R]

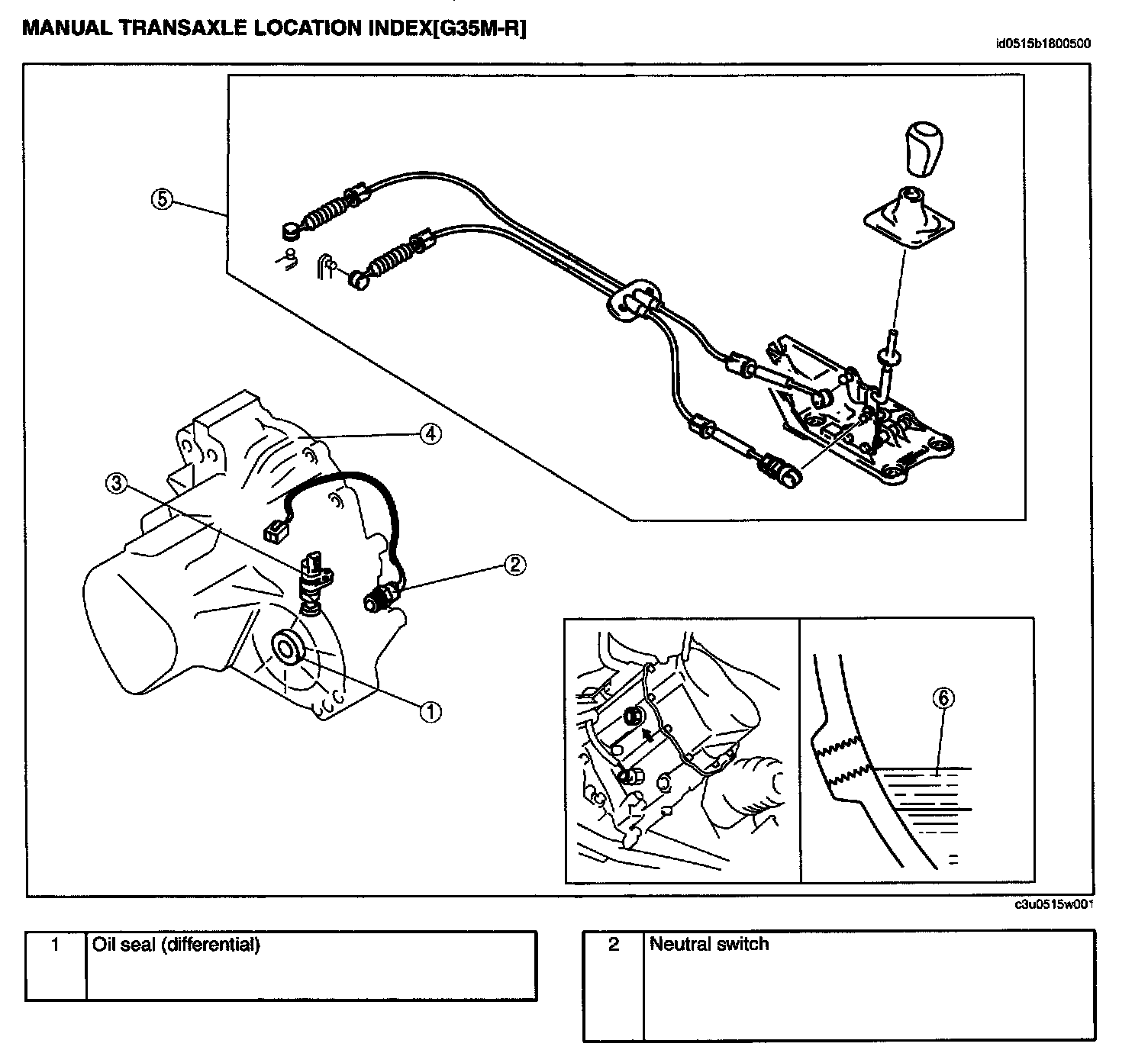

Manual Transaxle Location Index [G35M-R] (part 1):

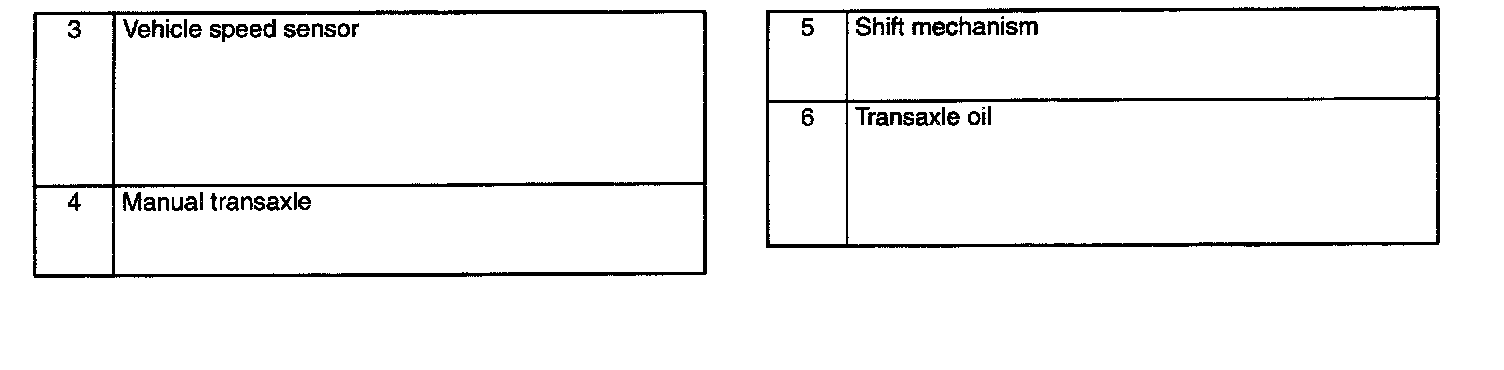

Manual Transaxle Location Index [G35M-R] (part 2):
