Steering Control Module: Locations

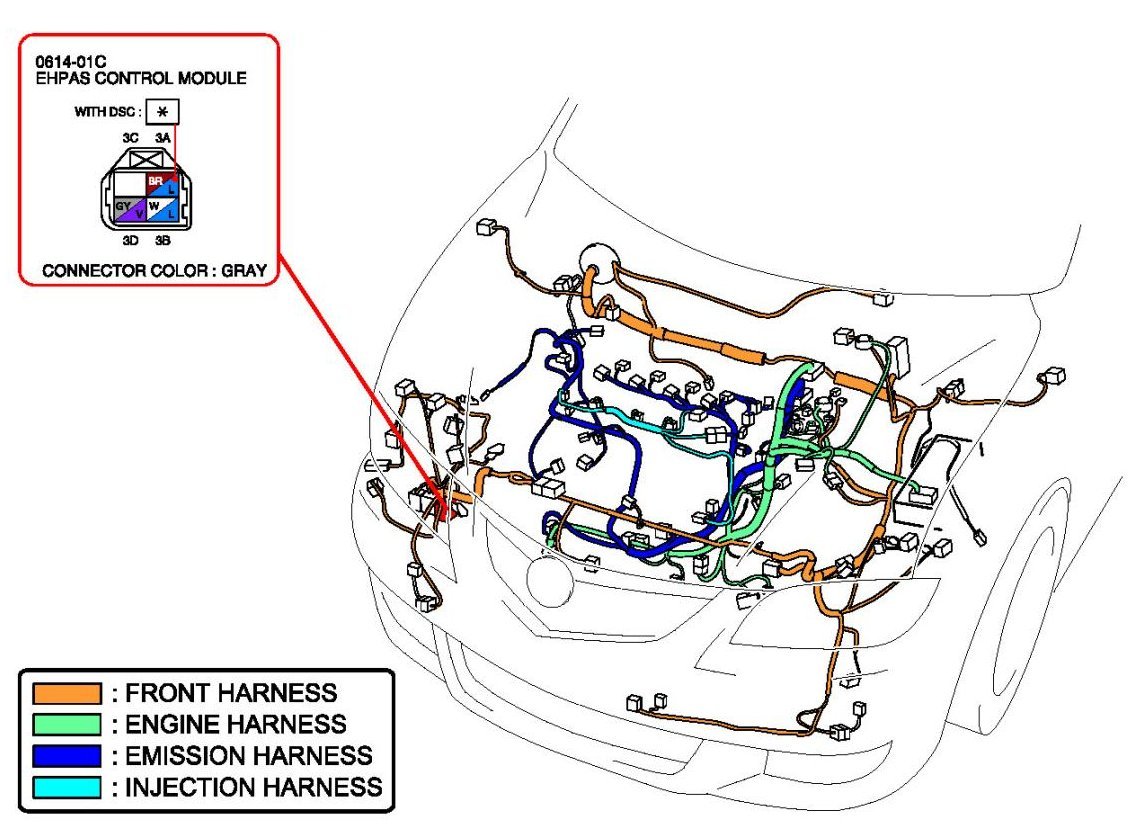

EHPAS Control Module:

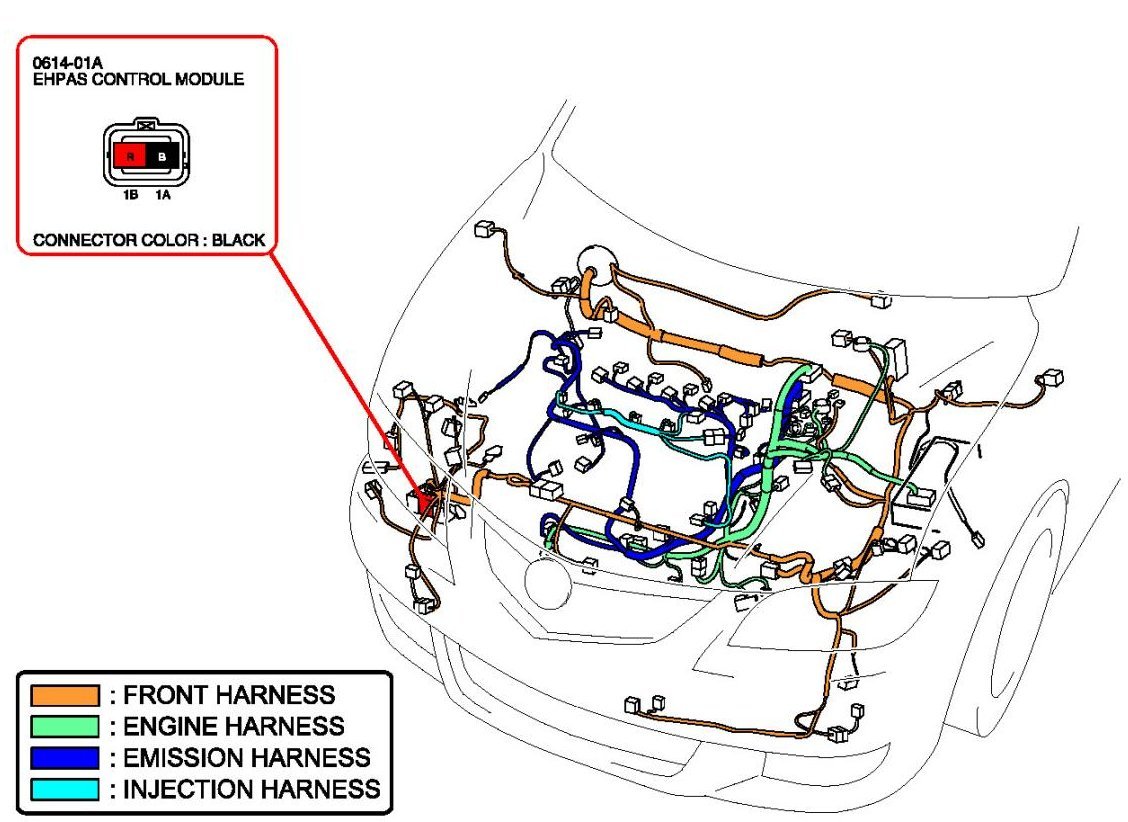

EHPAS Control Module:

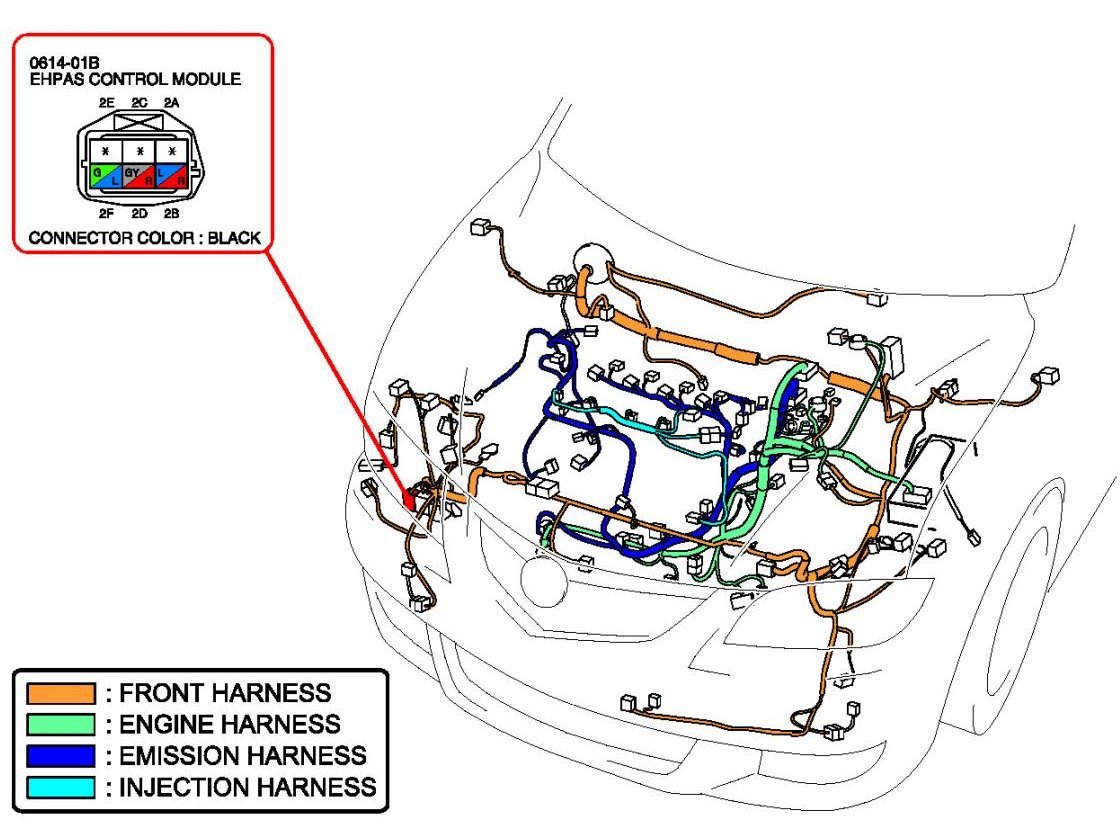

EHPAS Control Module:
