Bearing Disassembly Note

Bearing Disassembly Note

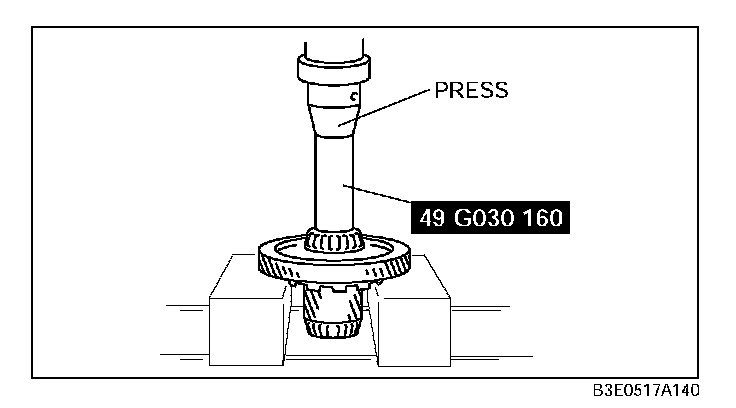

1. Remove the bearing (secondary gear side) from the output gear using the SST.

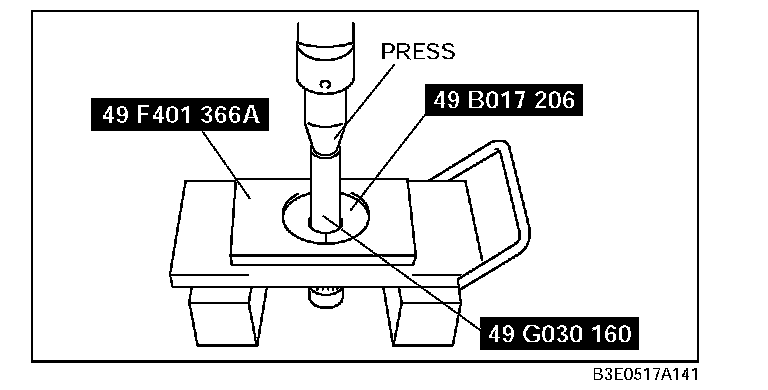

2. Remove the bearing (output gear side) from the output gear using the SST.
