Shift-Lock Solenoid Inspection

SHIFT-LOCK SOLENOID INSPECTION
1. Disconnect the negative battery cable.
2. Remove the console.
3. Disconnect the selector lever component connector.

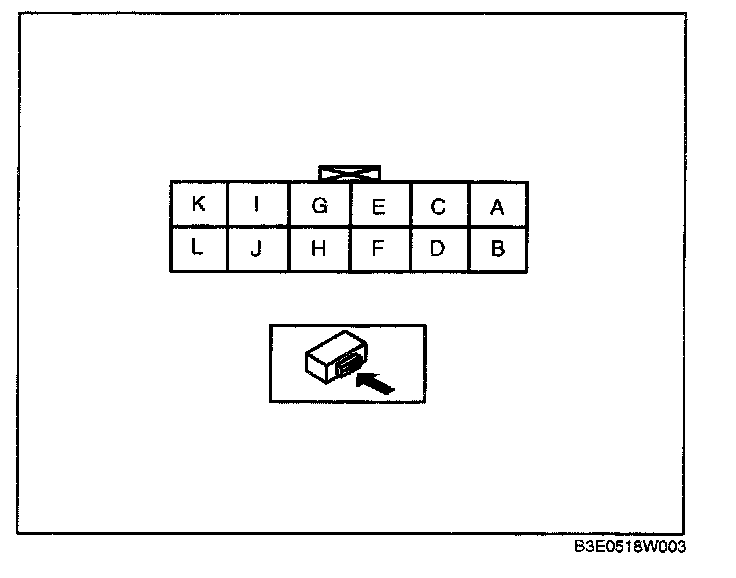

4. Measure the continuity between terminals E and F If there is any malfunction, replace the selector lever component.
