No.2 All on-Board Diagnostic Functions Inoperative[Keyless Entry System]
No.2 All on-Board Diagnostic Functions Inoperative[Keyless Entry System]

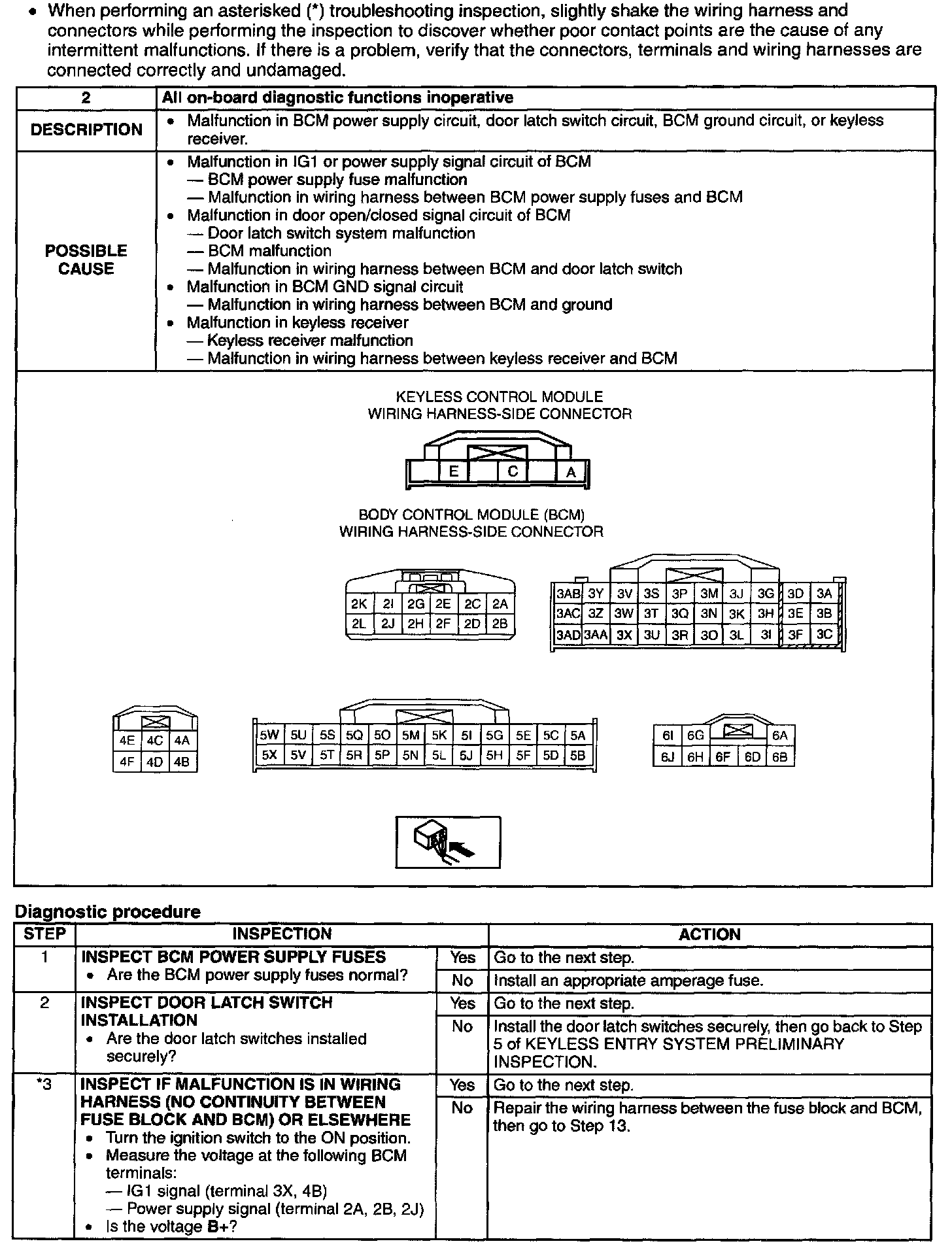

step 1-step 3:

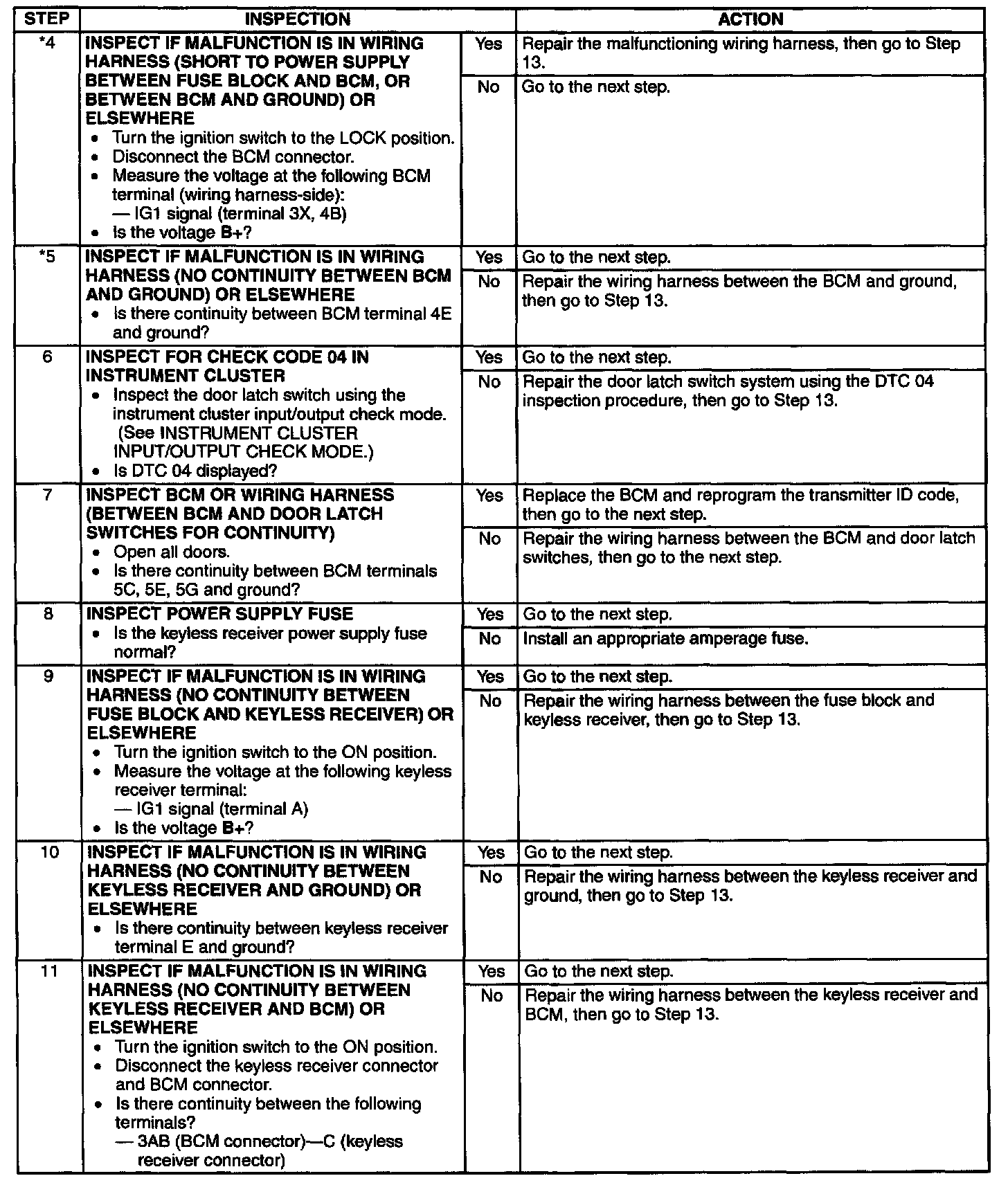

Step 4-Step 11:

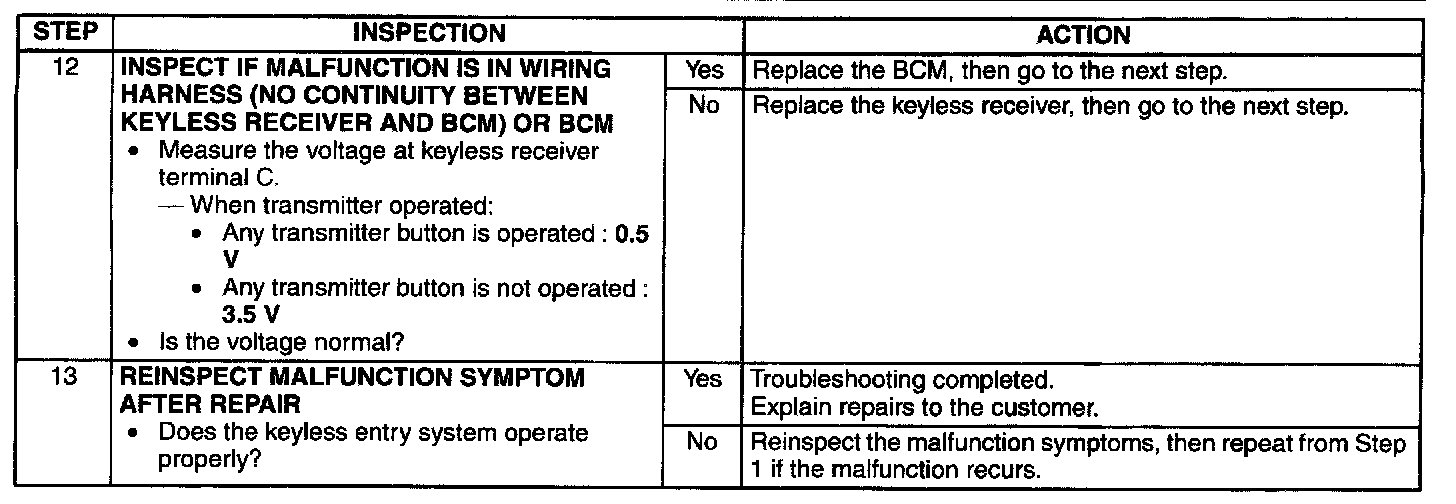

Step 12-Step 13:
