Seat Temperature Switch
>>
Locations
>>
Connector Locations
Connector Locations

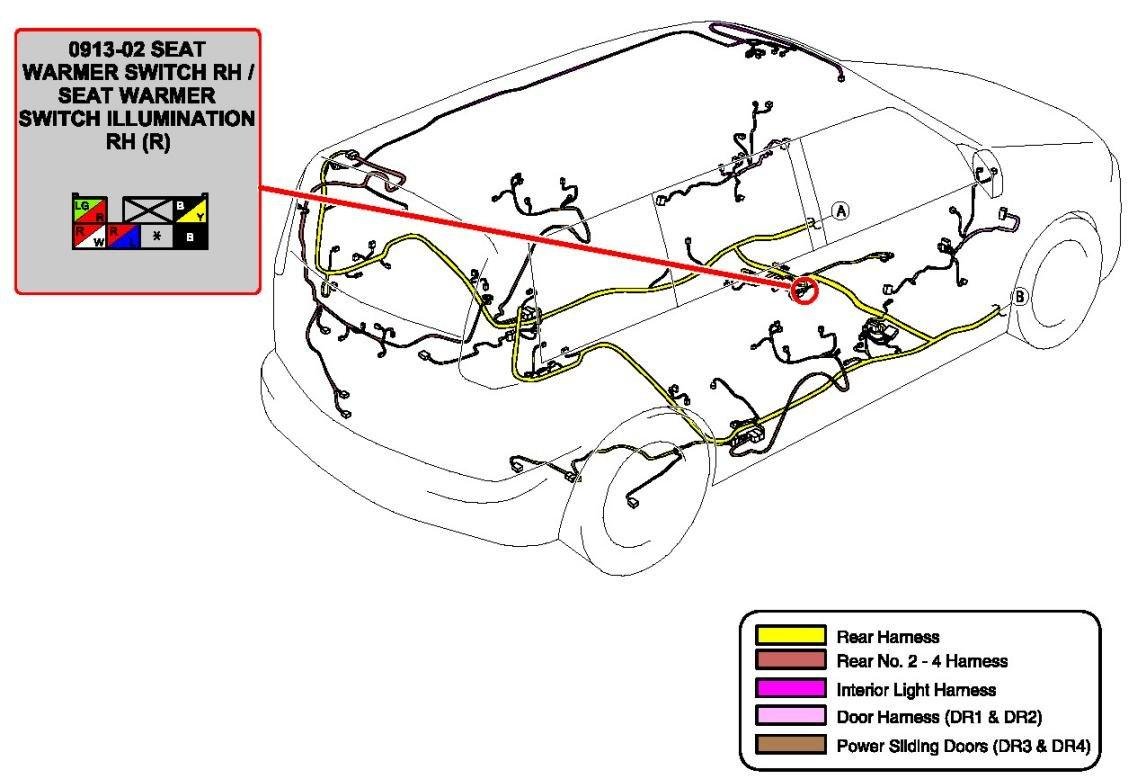

Seat Warmer Switch RH/Seat Warmer Switch Illumination RH:

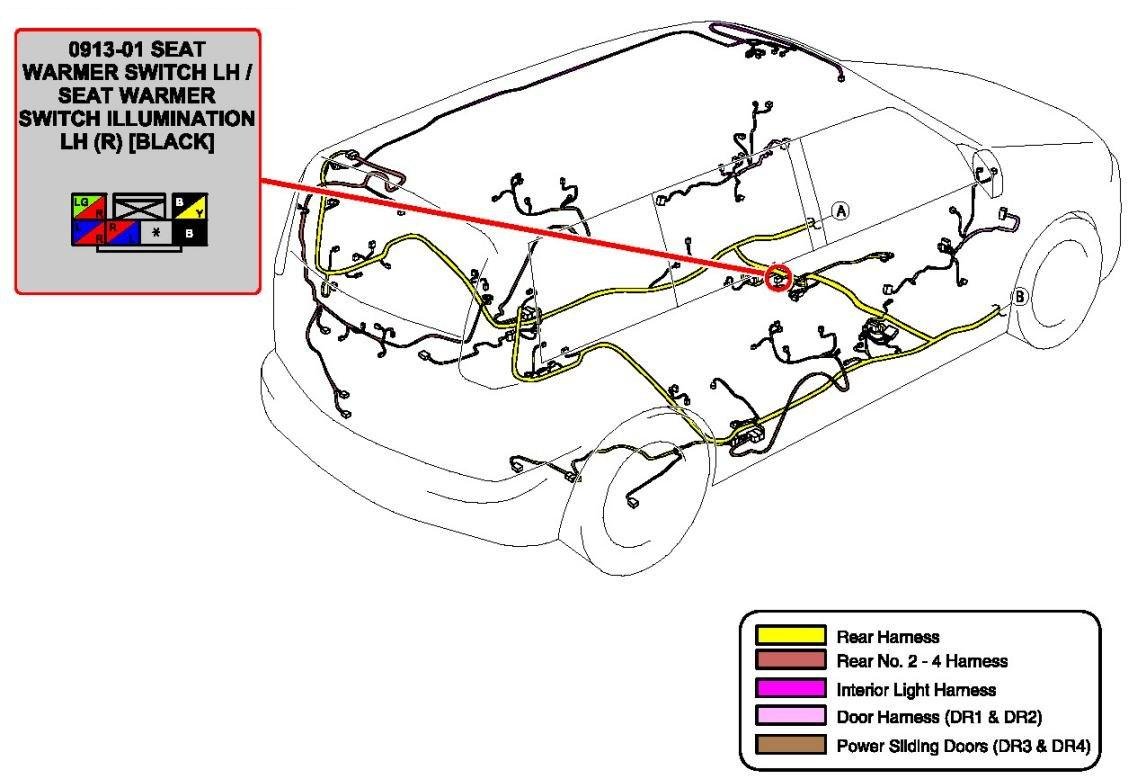

Seat Warmer Switch LH/Seat Warmer Switch Illumination LH:
