Second-Row Seat Removal/Installation

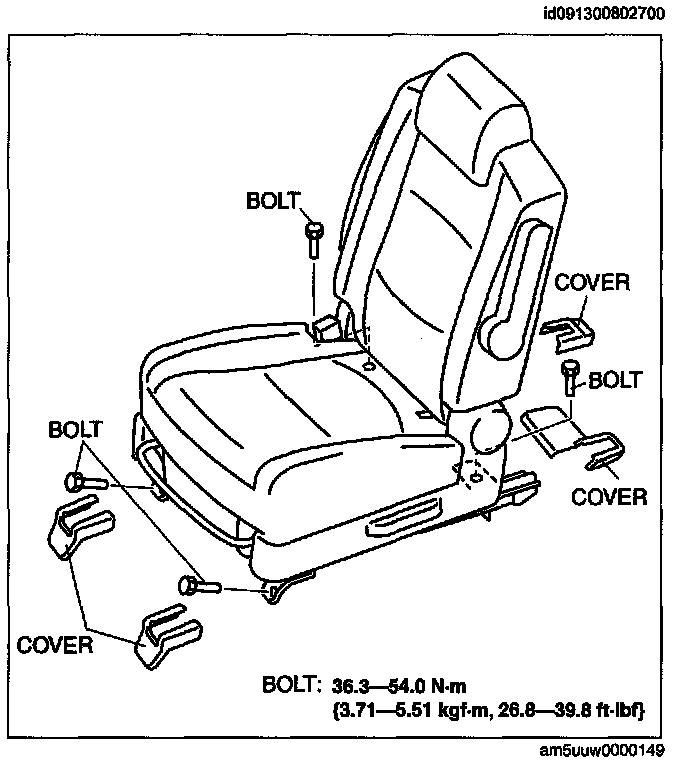

SECOND-ROW SEAT REMOVAL/INSTALLATION

1. Remove the covers.
2. Remove the bolts, then remove the second-row seat.
3. Install in the reverse order of removal.
