SYMPTOM TROUBLESHOOTING
^

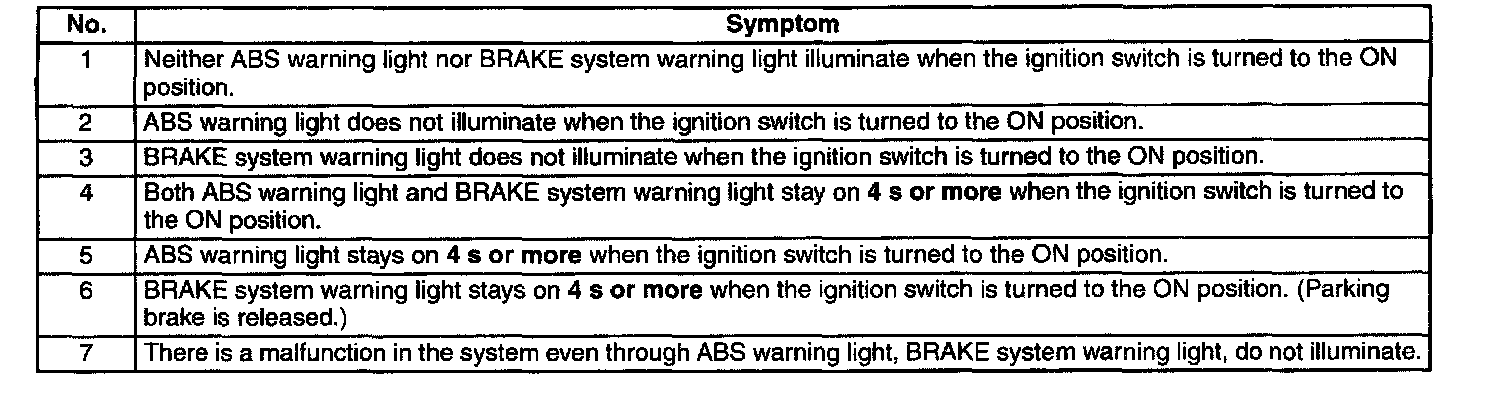

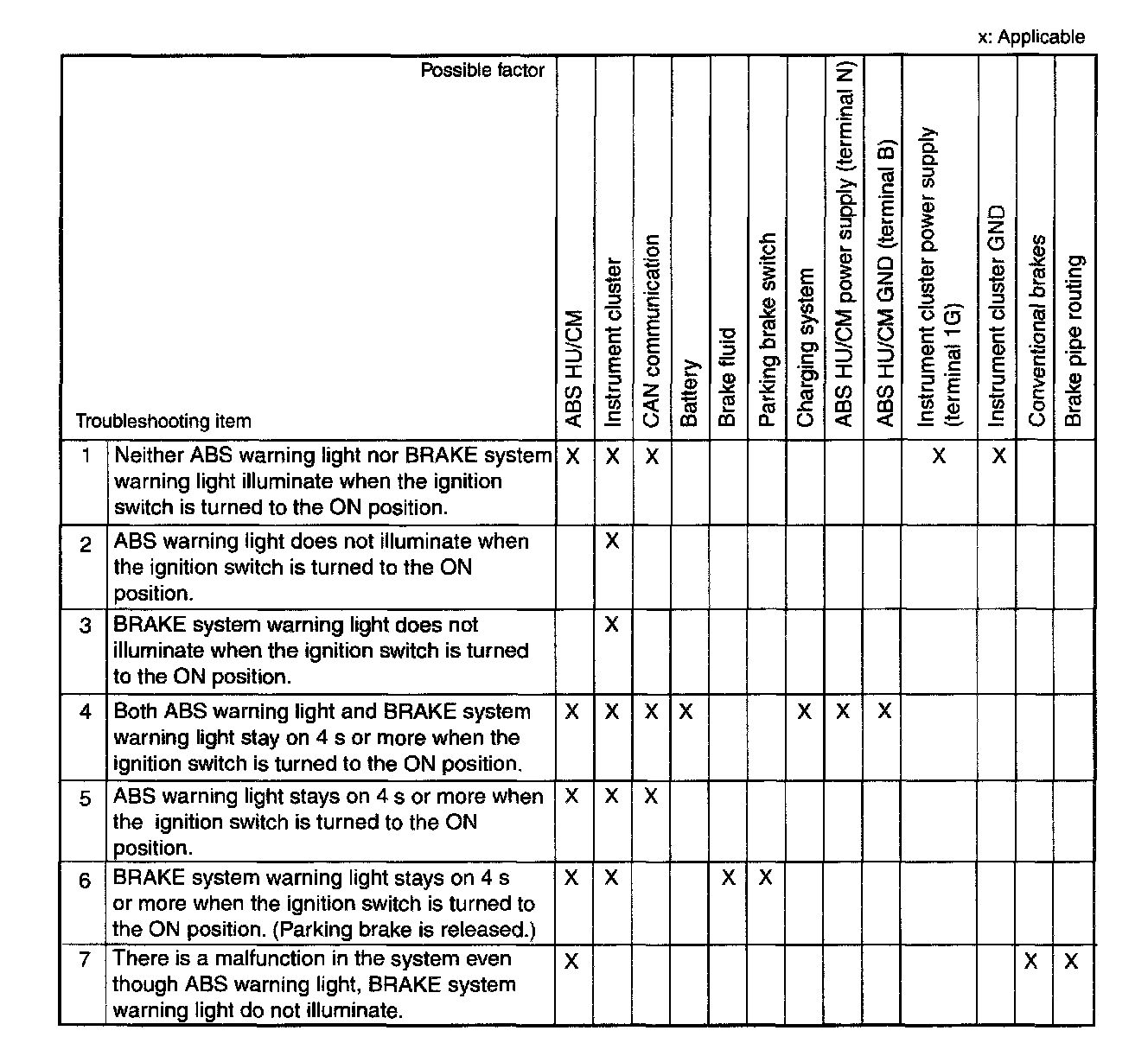

Verify the symptoms, and perform troubleshooting according to the appropriate number.
