Home >> Mazda >> 2007 >> 5 L4-2.3L >> Repair and Diagnosis >> Brakes and Traction Control >> Locations

Brakes and Traction Control: Locations

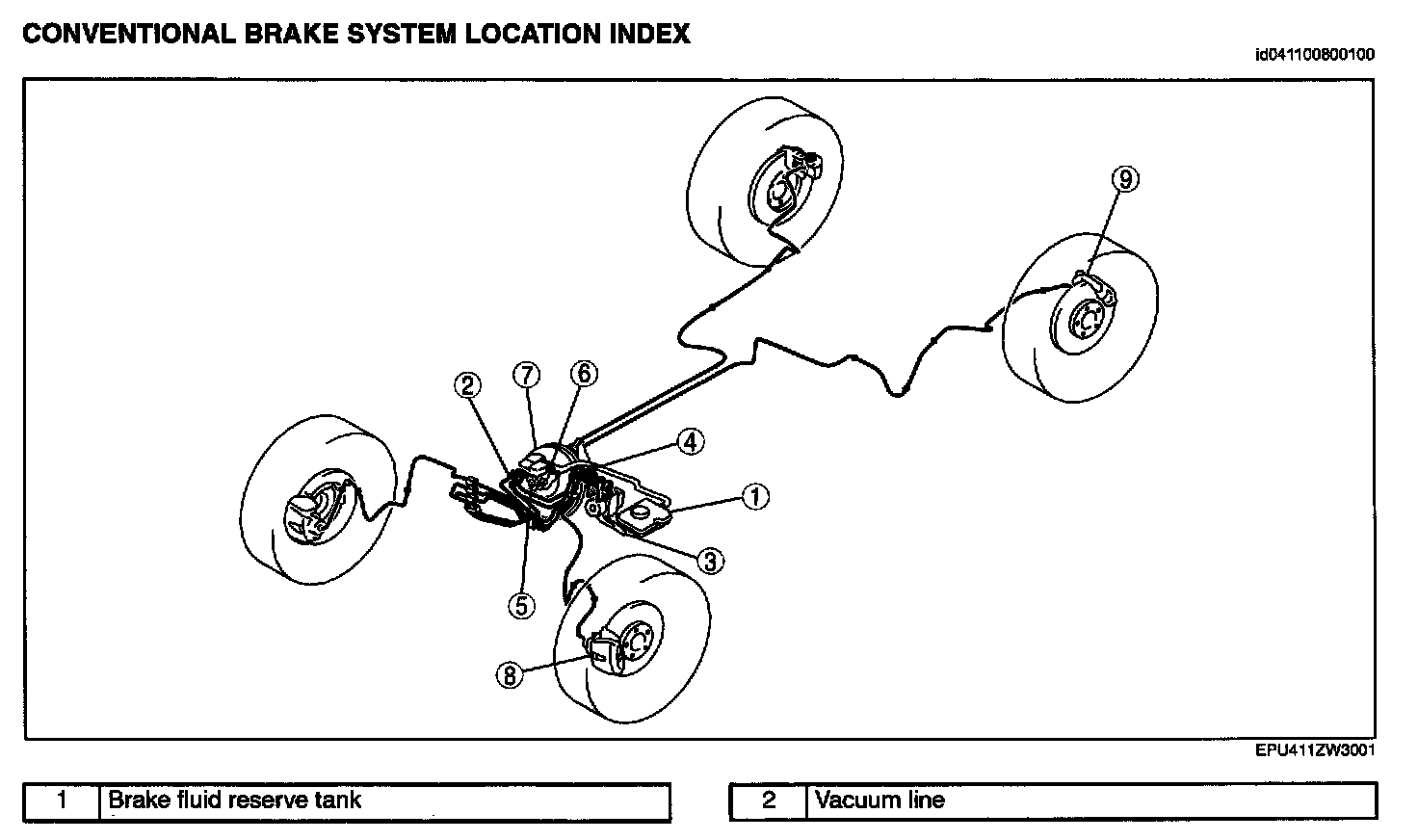

Conventional Brake System Location Index (part 1):

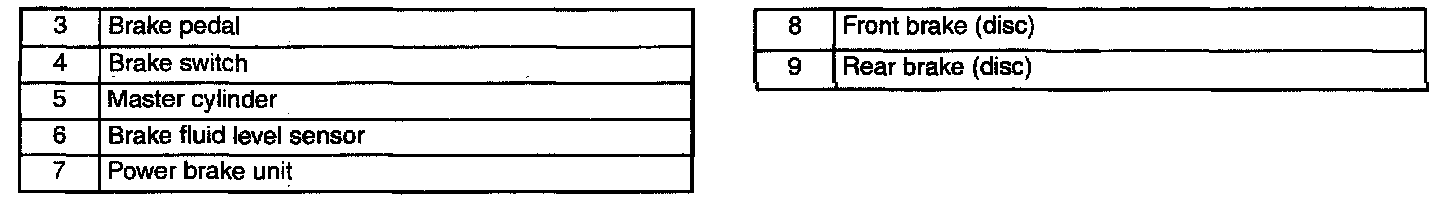

Conventional Brake System Location Index (part 2):
