Diagram 0940-c

Diagram 0940-c:

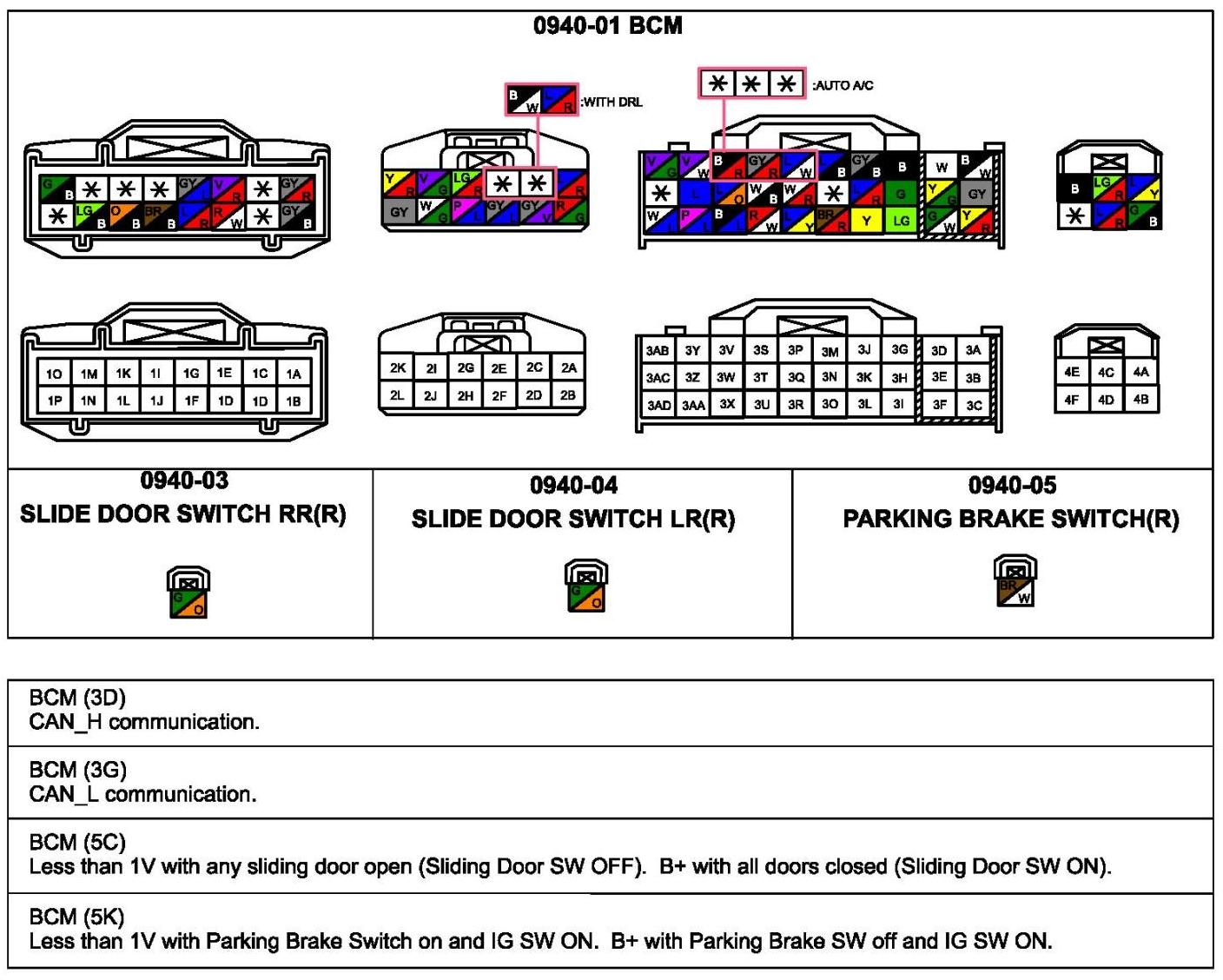

Connectors 0940-c:

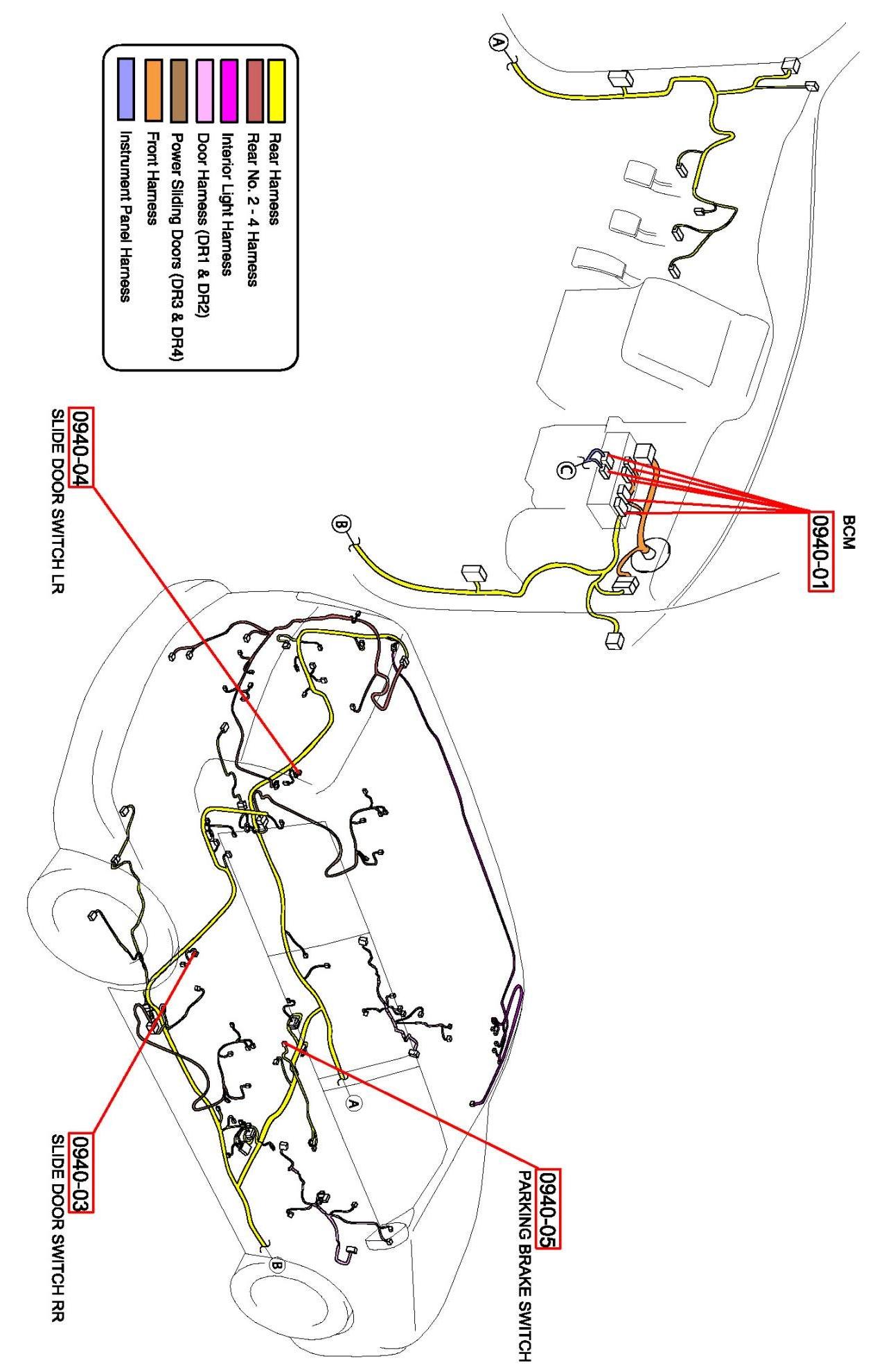

Routing View 0940-c:

Next Diagram Diagram 0940-d


Previous diagram Diagram 0940-b


Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
