System Schematic

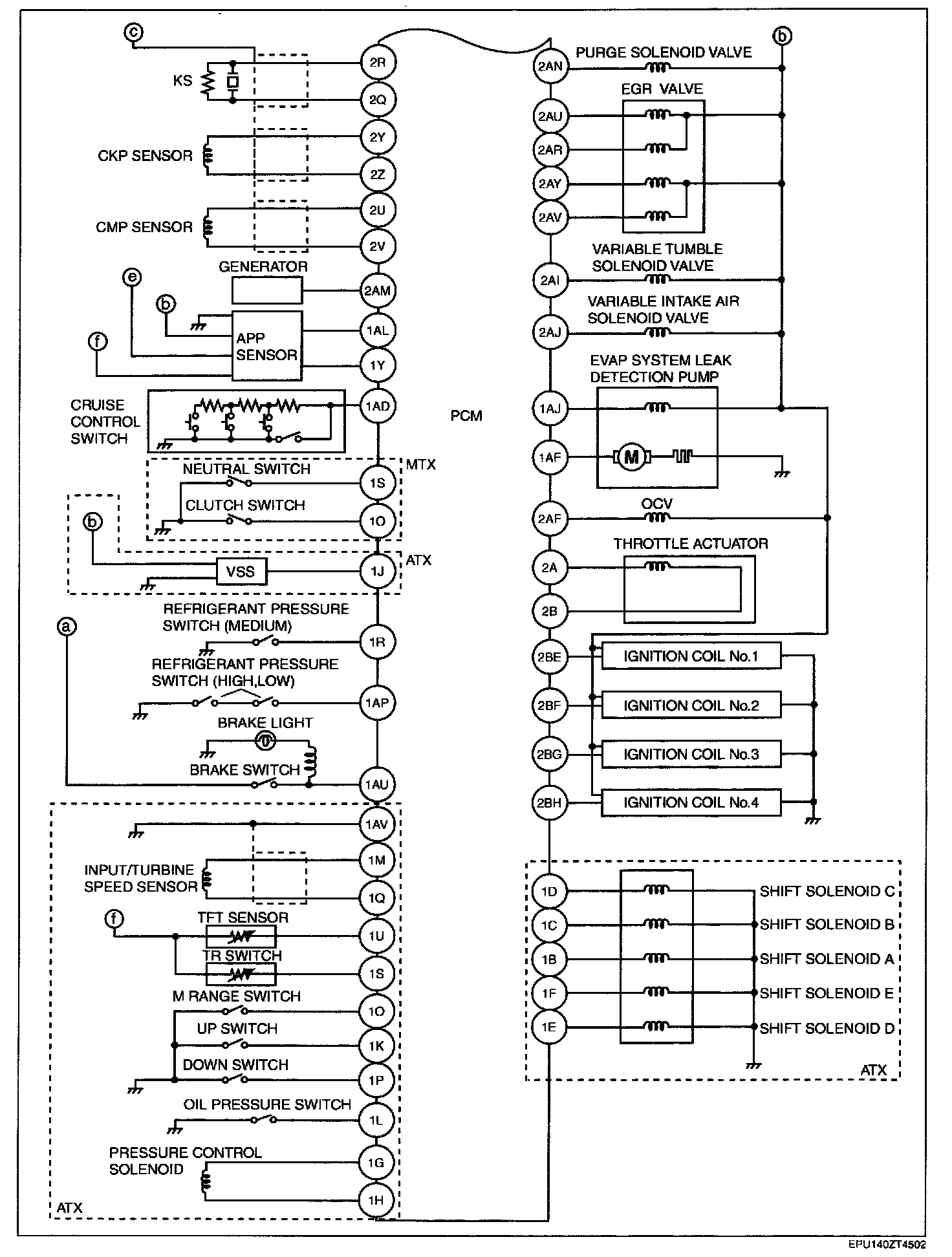

Control System Wiring Diagram (L3) Part 1:

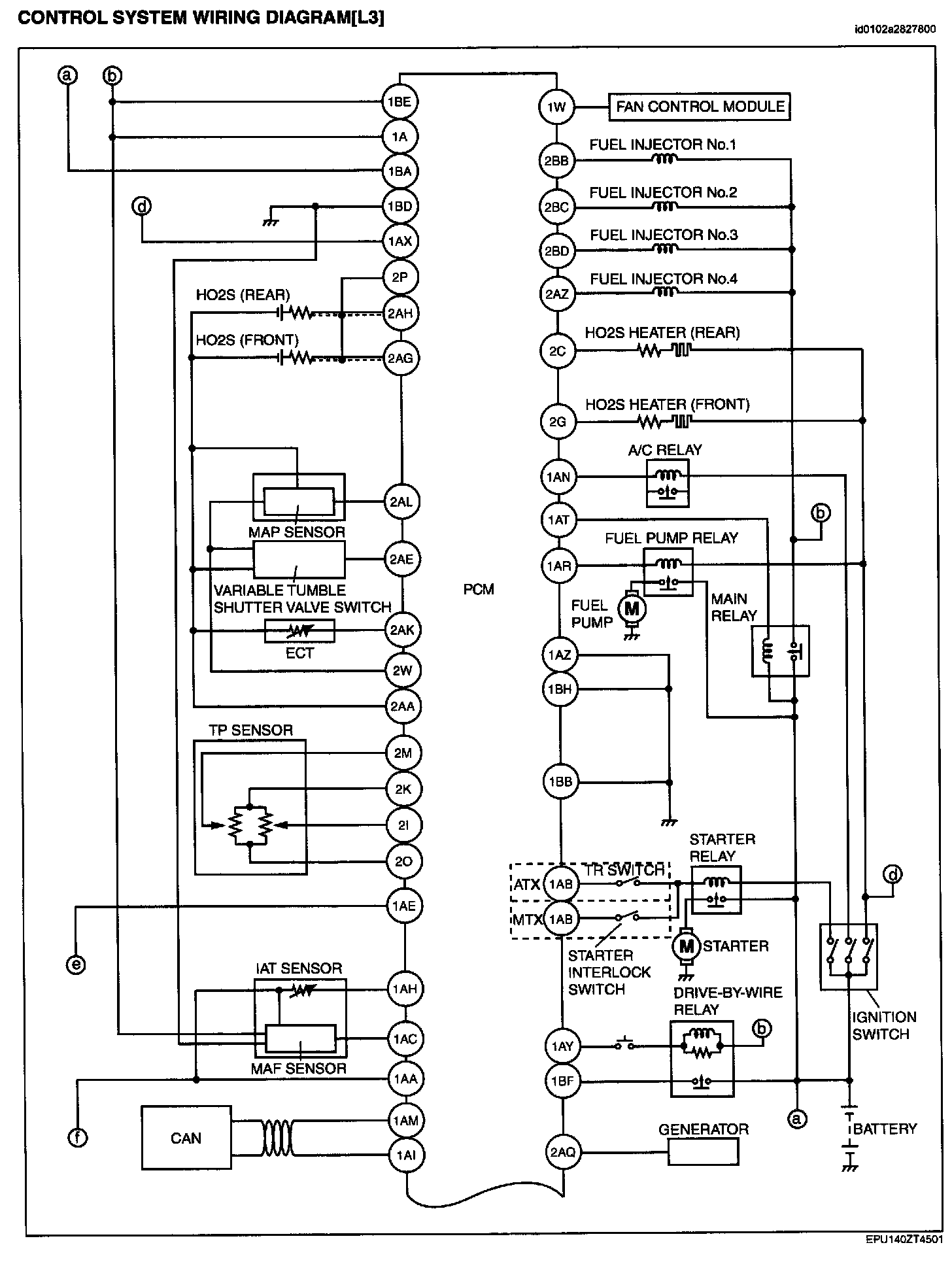

Control System Wiring Diagram (L3) Part 2:
