Home >> Mazda >> 2007 >> 5 L4-2.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Windows >> Electrical Diagrams

Electrical Diagrams

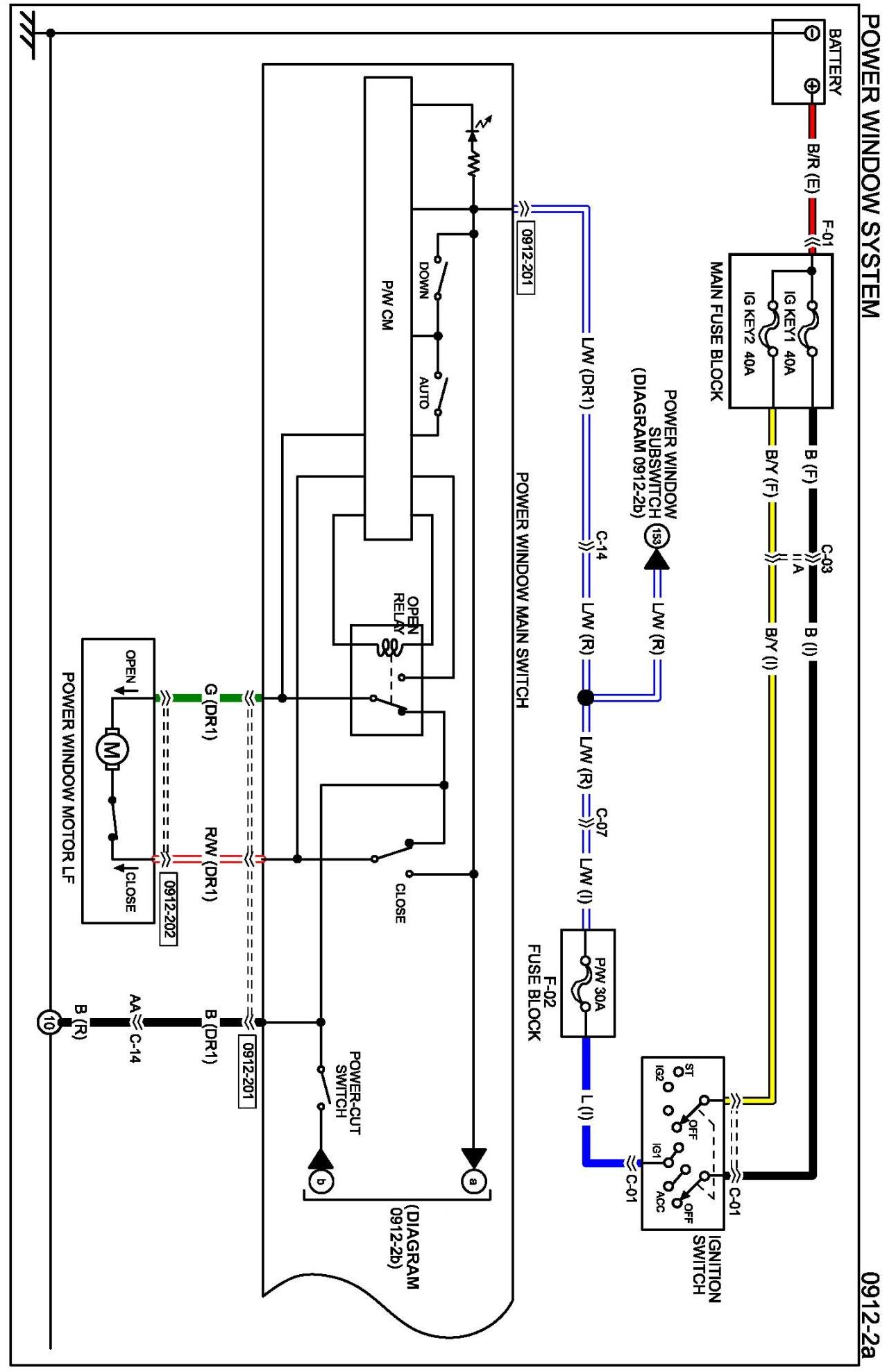

Diagram 0912-2a:

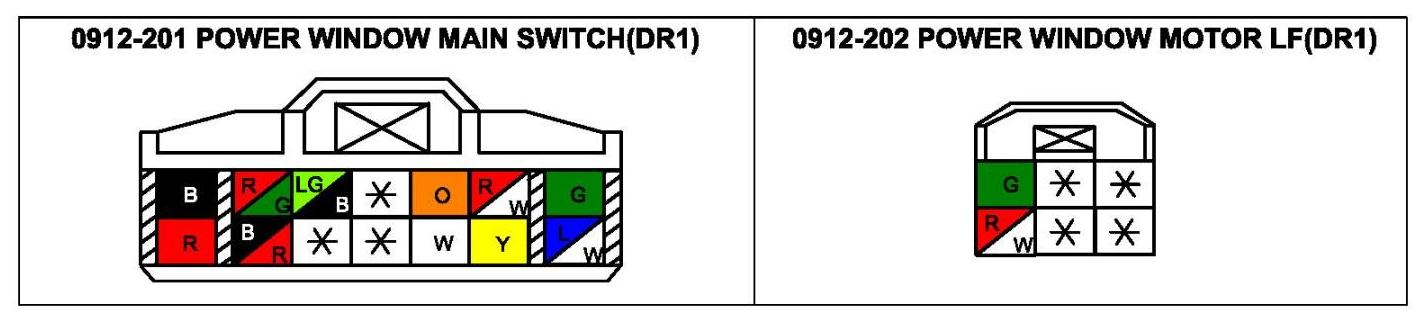

Connectors 0912-2a:

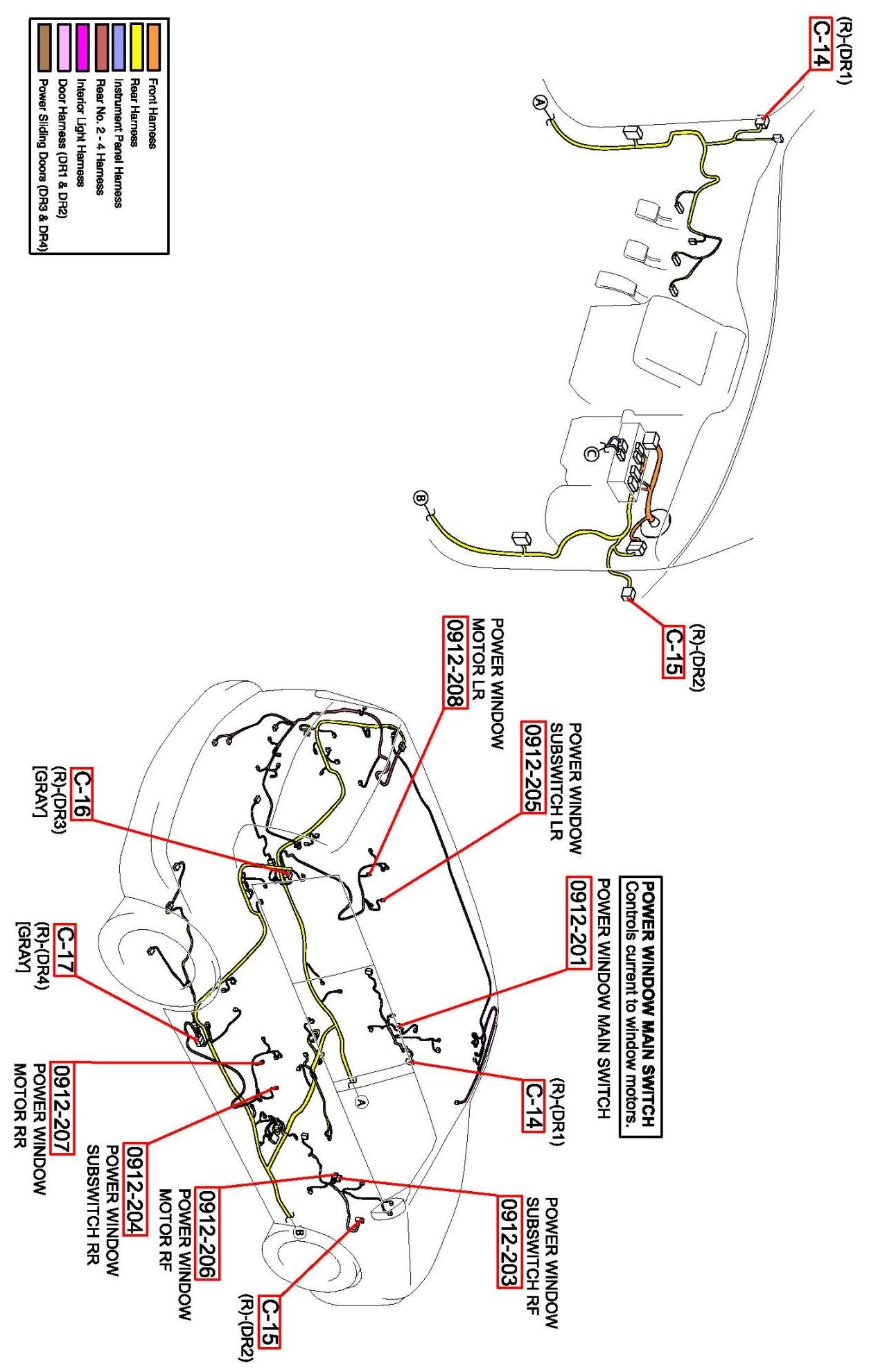

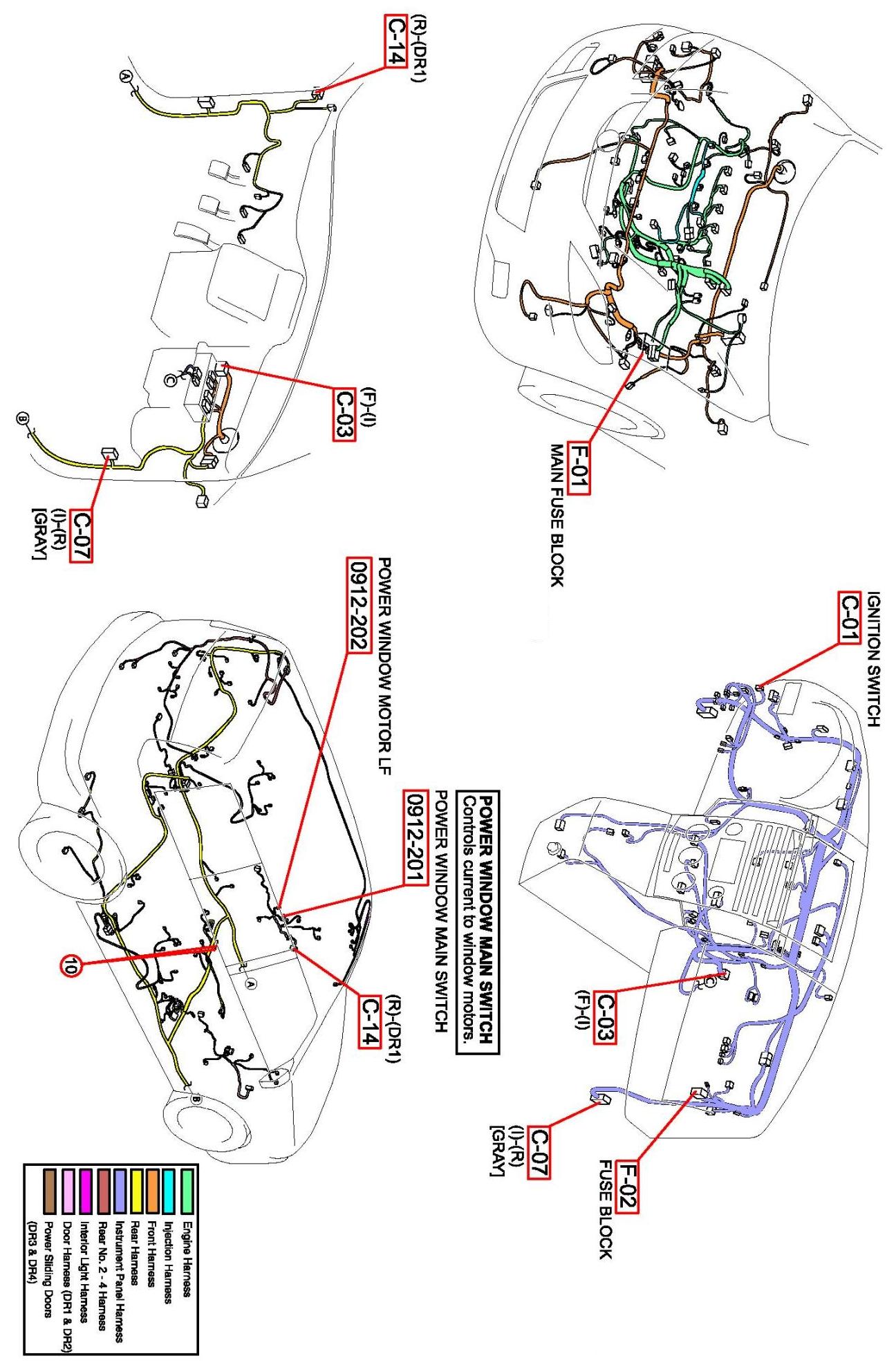

Routing View 0912-2a:

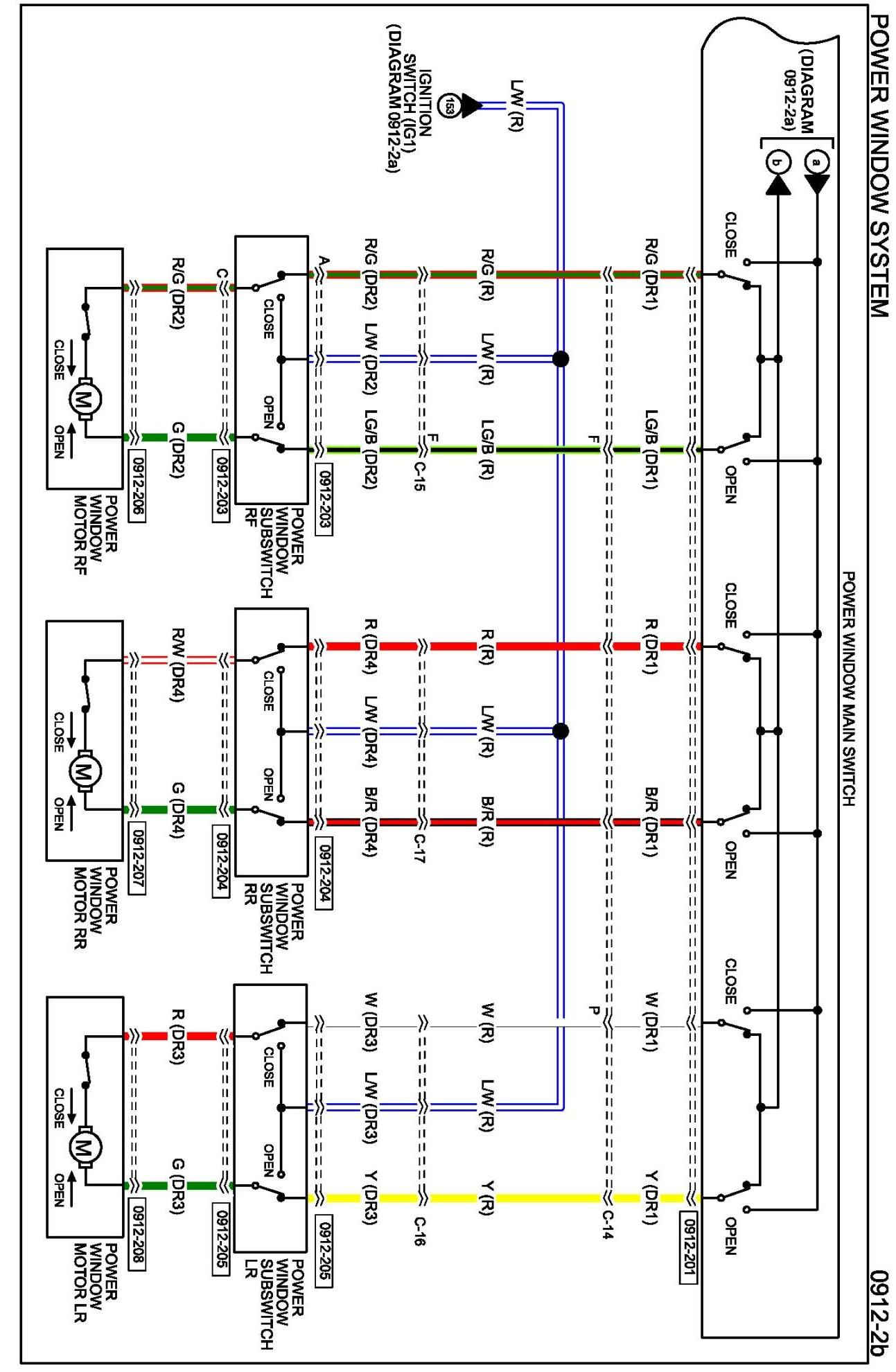

Diagram 0912-2b:

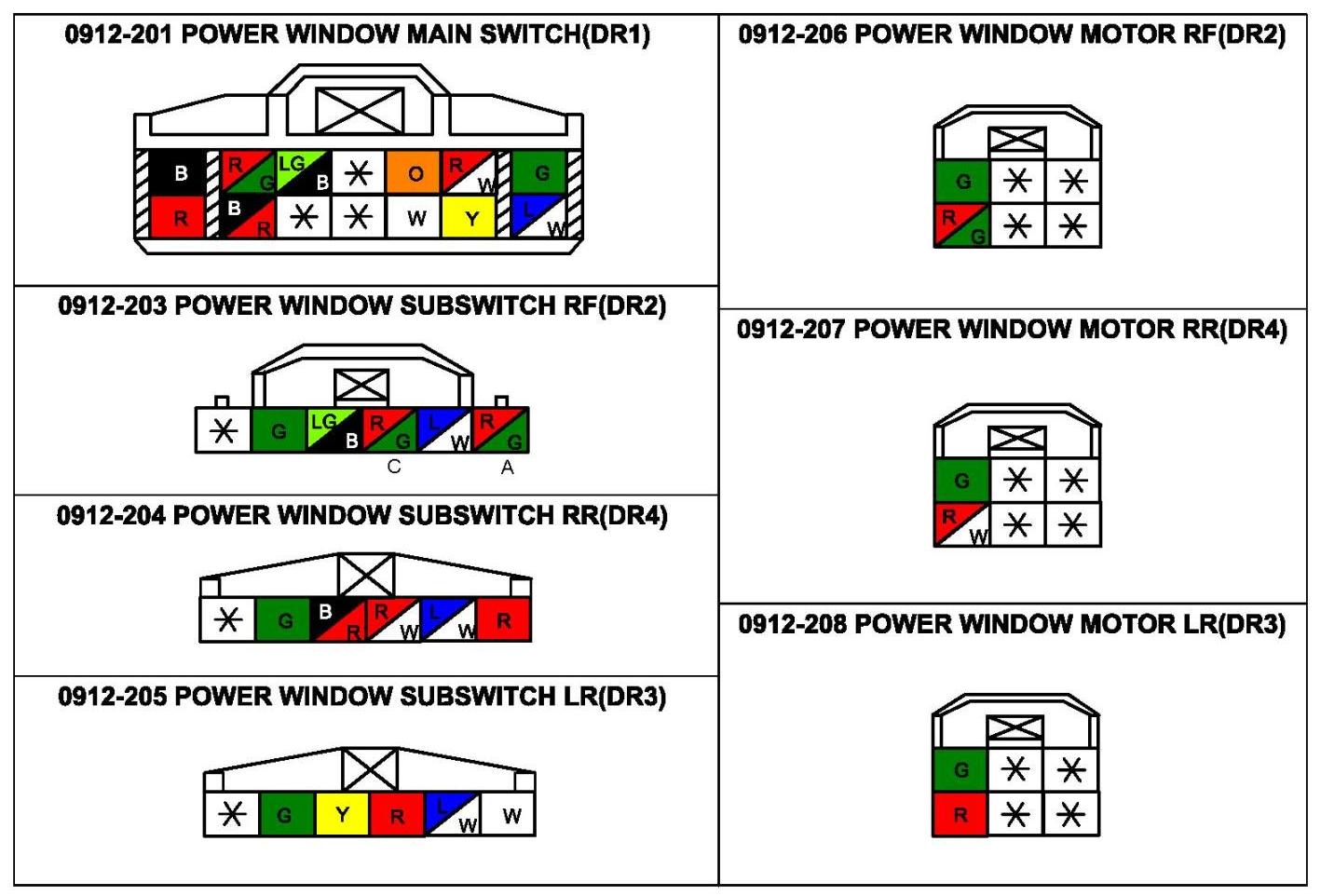

Connectors 0912-2b:




Routing View 0912-2b:






Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
