Front Combination Light

FRONT COMBINATION LIGHT REMOVAL/INSTALLATION

1. Remove the battery cover.
2. Disconnect the negative battery cable.
3. Remove the front bumper.

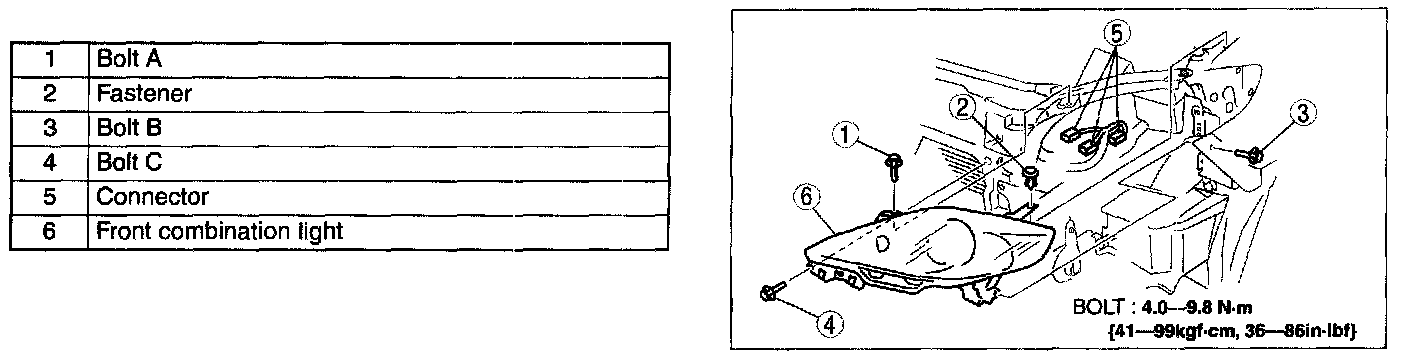

4. Remove in the order indicated in the above table.
5. Install in the reverse order of removal.
6. Adjust the headlight aiming.
