Home >> Mazda >> 2007 >> 5 L4-2.3L >> Repair and Diagnosis >> Locations >> Connector Locations >> C-05 (Short Connector)

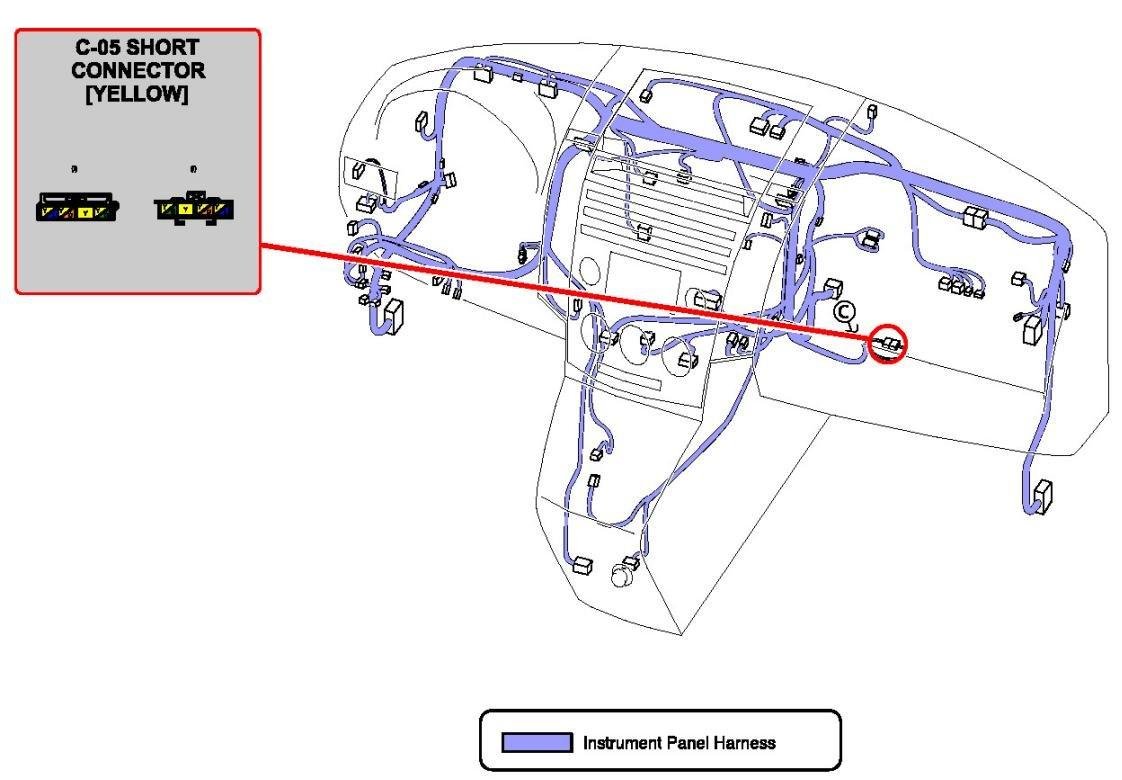

C-05 (Short Connector)

C-05 (Short Connector):
