Home >> Mazda >> 2007 >> 5 L4-2.3L >> Repair and Diagnosis >> Locations >> Connector Locations >> C-22 (Rear-Short Cord)

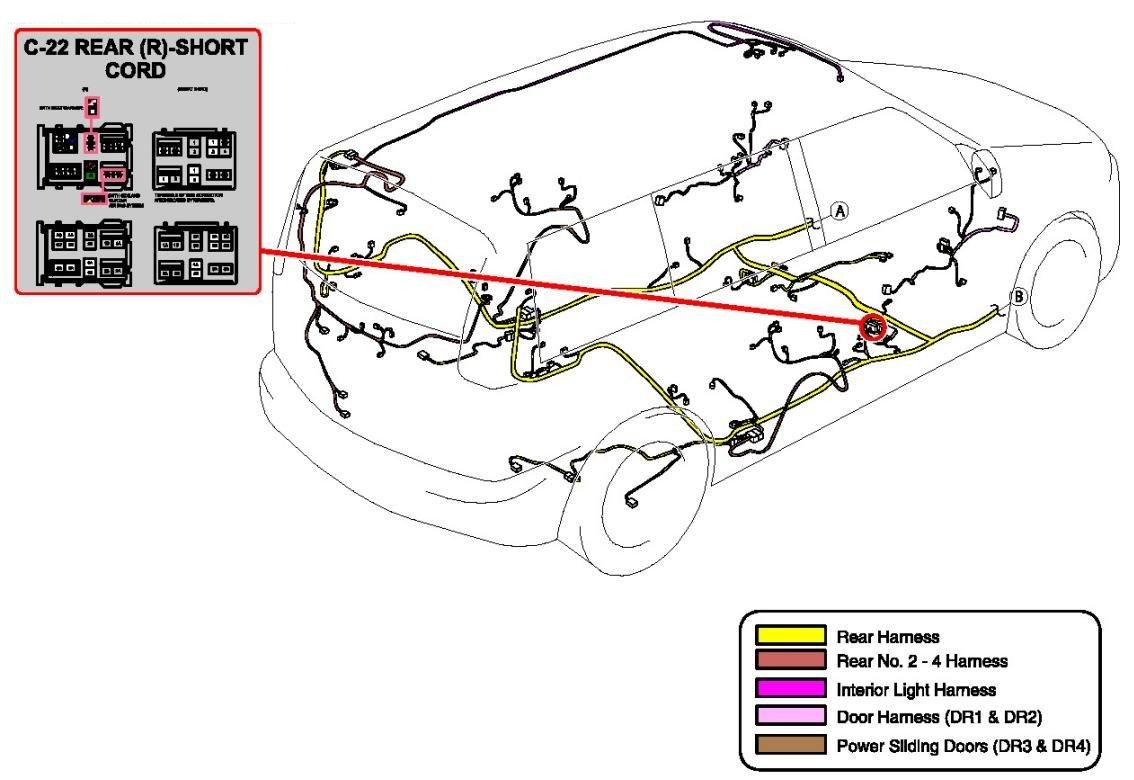

C-22 (Rear-Short Cord)

C-22 (Rear-Short Cord):
