Home >> Mazda >> 2007 >> 5 L4-2.3L >> Repair and Diagnosis >> Locations >> Connector Locations >> C-35 (Joint Connector)

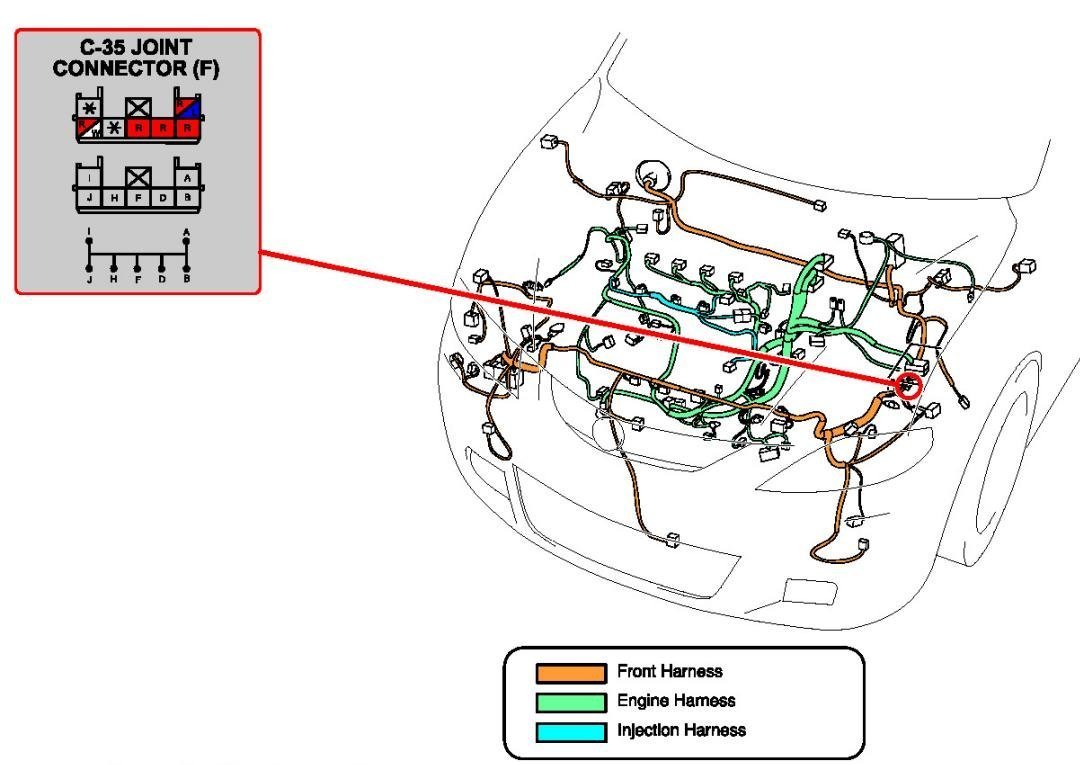

C-35 (Joint Connector)

C-35 (Joint Connector):
