Camshaft, Engine

Camshaft Specifications





Maximum runout

(Maximum) 0.03 mm {0.0012 in}





Camshaft standard height (mm {in})

With variable valve timing mechanism

IN: 42.44 {1.671}
EX: 41.18 {1.621}

Without variable valve timing mechanism

IN: 42.12 {1.659}
EX: 41.08 {1.618}

Camshaft minimum height (mm {in})

With variable valve timing mechanism

IN: 42.33 {1.666}
EX: 41.06 {1.616}

Without variable valve timing mechanism

IN: 42.01 {1.653}
EX: 40.96 {1.612}

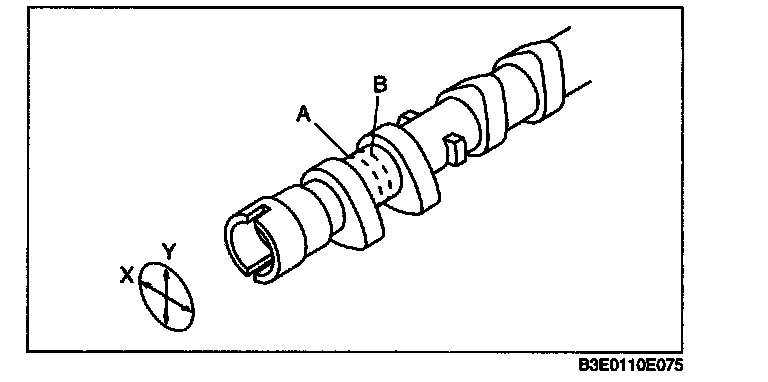

Camshaft journal diameter

(Standard) 24.96-24.98 mm {0.9827-0.9834 in}
(Minimum) 24.95 mm {0.982 in}





Camshaft journal oil clearance

(Standard) 0.03S-O.080 mm {0.0014-0.OO31 in}
(Maximum) 0.09 mm {0.0035 in}





Camshaft end play

(Standard) 0.09-0.24 mm {0.003S-O.0094 in}
(Maximum) 0.25 mm {0.0098 in}

Camshaft Cap bolts

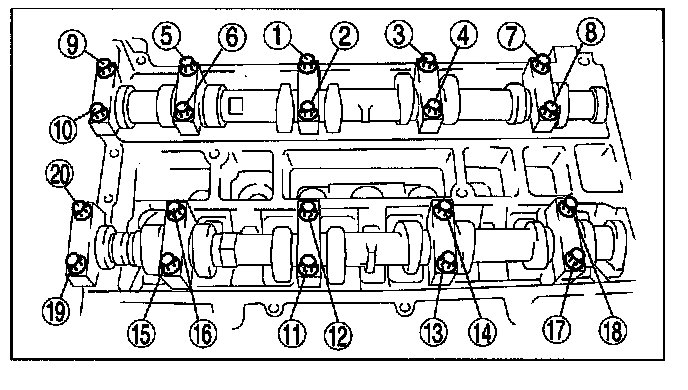

Tighten the camshaft cap bolts in the order shown with the following two steps.





Tighten torque
1. 5.0-9.0 N-m (51-91 kgf-cm, 44.3-79.6 in-lbf)
2. 14-17 N-m (1.5-1.7 kgf-m, 10.4-12.5 ft-lbf)
