Flex Plate
Flex Plate
Drive Plate

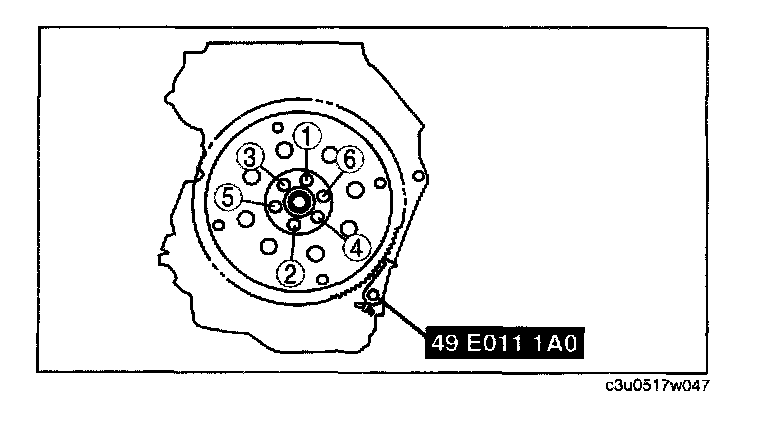

Tighten the drive plate mounting bolts in two or three steps in the order as shown in the figure.
Tightening torque
108-116 Nm (11.0-11.8 kgf.m, 79.7-85.5 ft.lbf)
