Forward Clutch Piston Disassembly Note

Forward Clutch Piston Disassembly Note
1. Set the forward clutch drum and turbine shaft onto the oil pump.

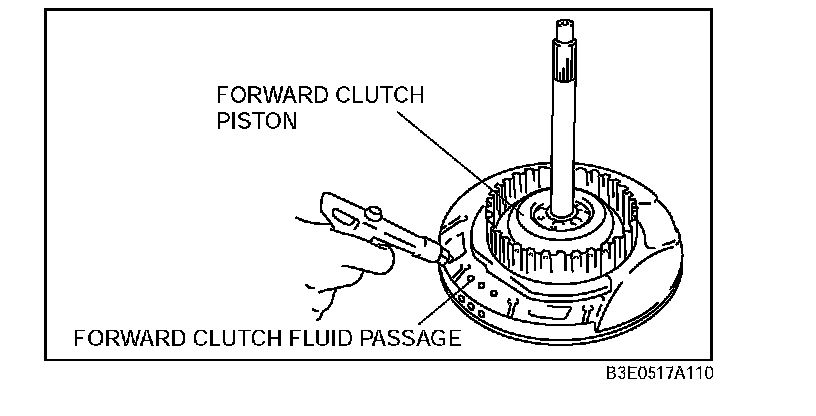

2. Remove the forward clutch piston by applying compressed air through the fluid passage.

Air pressure:
392 kPa (4.0 kgf-cm2, 57 psi) max.
