Transmission Speed Sensor: Service and Repair

INPUT/TURBINE SPEED SENSOR REMOVAL/INSTALLATION (FN4A-EL)

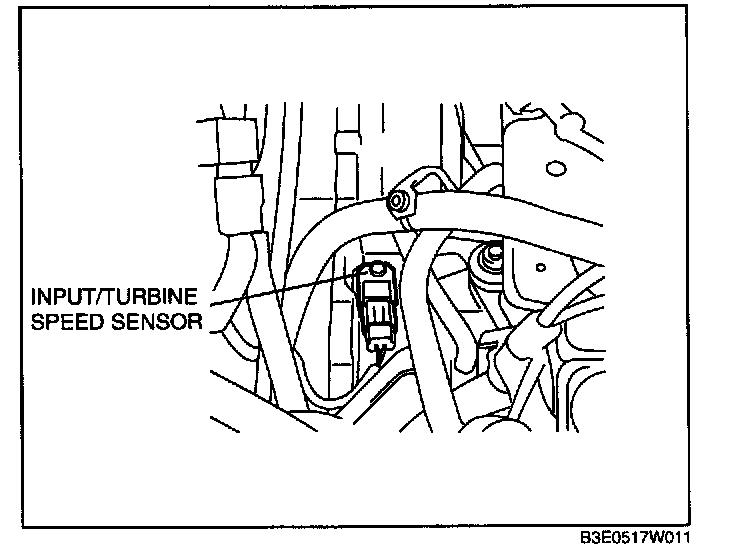

1. Remove the battery duct and battery cover.
2. Remove the battery, battery box and battery tray.





3. Disconnect the input/turbine speed sensor connector.
4. Remove the input/turbine speed sensor.
5. Apply ATF to a new O-ring and install it on a new input/turbine speed sensor.
6. Install the input/turbine speed sensor.

Tightening torque
8-11 Nm (82-112 kgf.cm, 71-97 in.lbf)

7. Connect the input/turbine speed sensor connector.
8. Install the battery, battery box and battery tray.
9. Install the battery duct and battery cover.
