Home >> Mazda >> 2007 >> 5 L4-2.3L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Power Window System Preliminary Inspection[Power Window System]

Power Window System Preliminary Inspection[Power Window System]

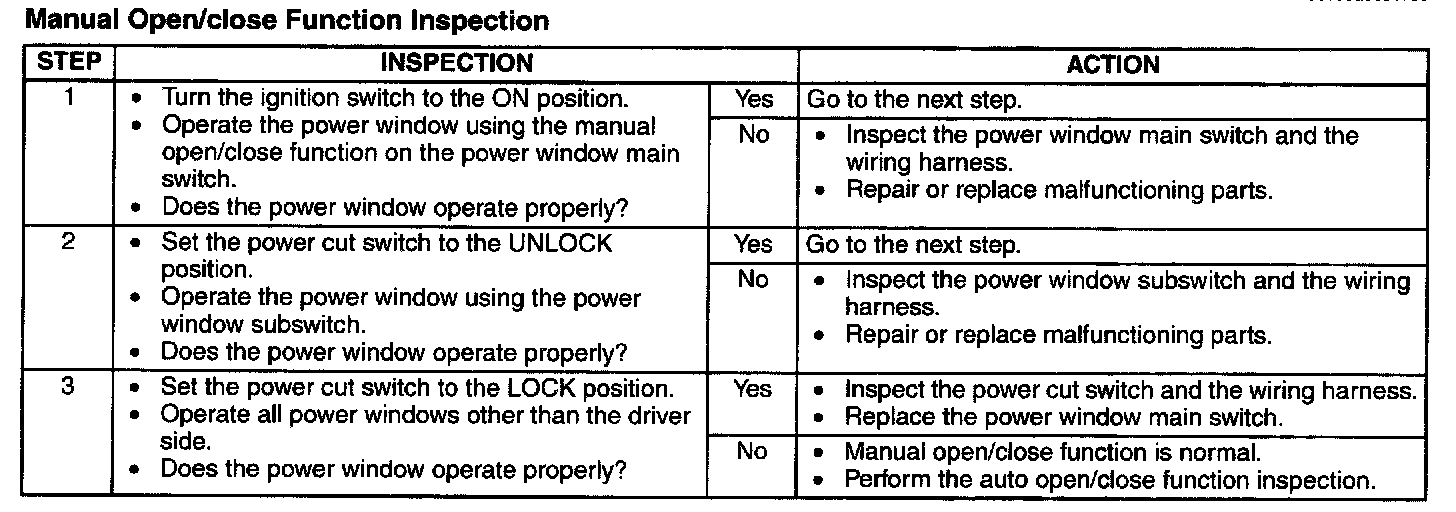

Step 1-Step 3:

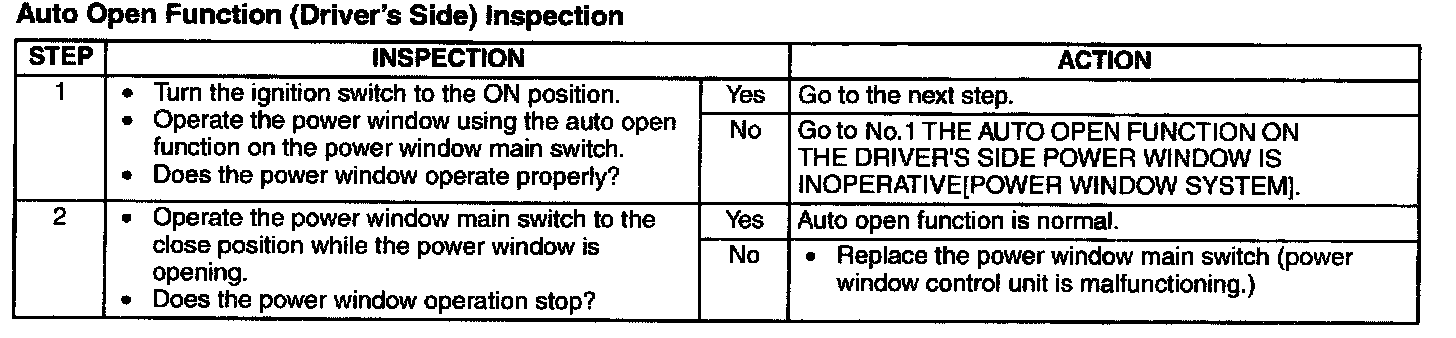

Step 1-Step 2:
