Front

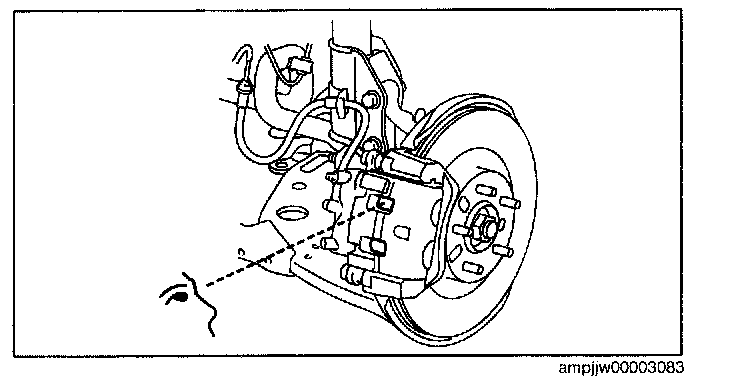

Disc Pad Thickness Inspection
1. Jack up the front of the vehicle and support it with safety stands.
2. Remove the wheels.
3. Verify the remaining thickness of the pads.
^ Replace the pads as a set: right and left wheels, if either one is at or less than the minimum thickness.





Minimum front disc pad thickness 2.0 mm (0.08 in)
