Climate Control Unit [Full-Auto Air Conditioner]

CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

1. Disconnect the negative battery cable.
2. Remove the following parts:
1. Console
2. Lower panel
3. Center panel
4. Audio unit

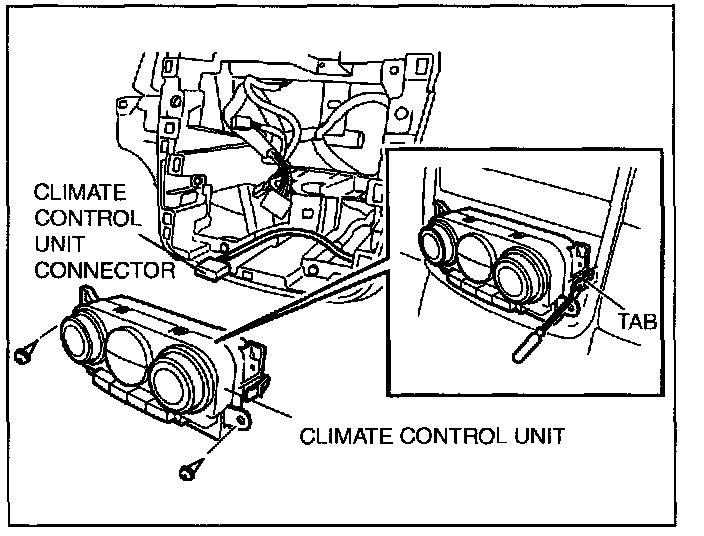

3. Remove the screws and climate control unit.




4. Release the tab and pull the climate control unit toward you.
5. Disconnect the climate control unit connectors and remove the climate control unit.
6. Install in the reverse order of removal.
