Climate Control Unit Removal [Manual Air Conditioner]

CLIMATE CONTROL UNIT REMOVAL [MANUAL AIR CONDITIONER]

1. Disconnect the negative battery cable.
2. Remove the following parts:
1. Glove compartment.
2. Console
3. Lower panel
4. Center panel
5. Audio unit

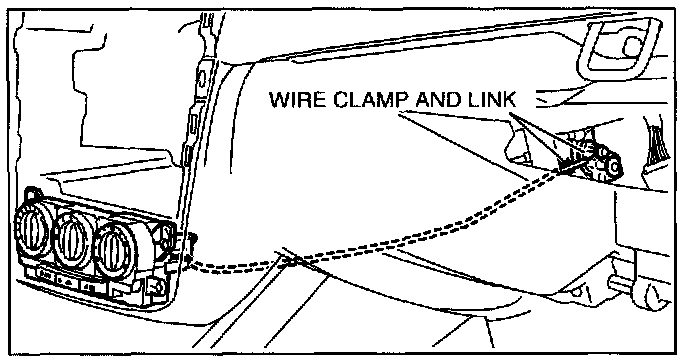

3. Disconnect the air mix wire from wire clamp and link.
4. Remove the screws and climate control unit.

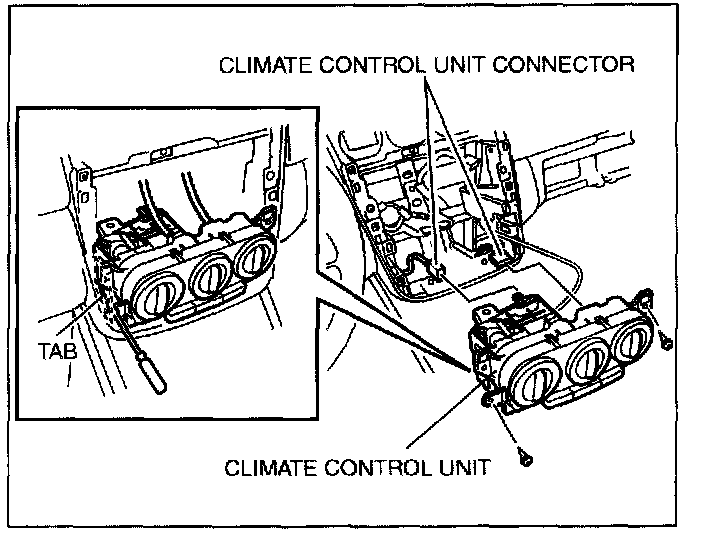

5. Release the tab and pull the climate control unit toward you.




6. Disconnect the climate control unit connectors and remove the climate control unit.
