Accelerator Pedal: Service and Repair

ACCELERATOR PEDAL REMOVAL/INSTALLATION[L3 WITH TC]

1. Disconnect the negative battery cable.

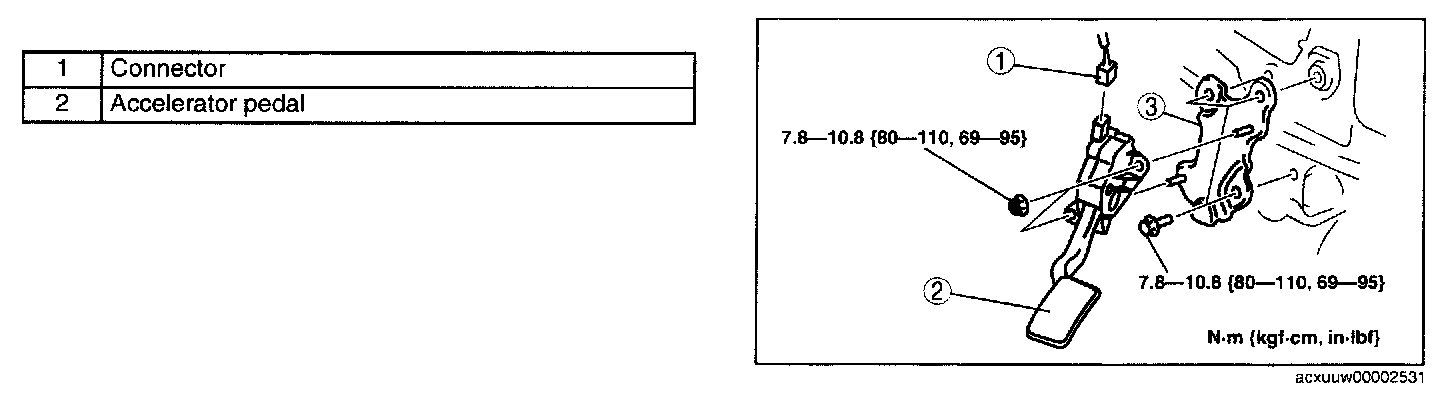

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
