Removal and Replacement
TRANSFER REMOVAL/INSTALLATION1. Disconnect the negative battery cable.
2. Remove the following parts:
(1) Battery, battery try
(2) Engine cover
(3) Intercooler
(4) Front pipe
3. Disconnect the propeller shaft from the transfer side.
4. Remove the transfer oil cooler with the hose still connected.

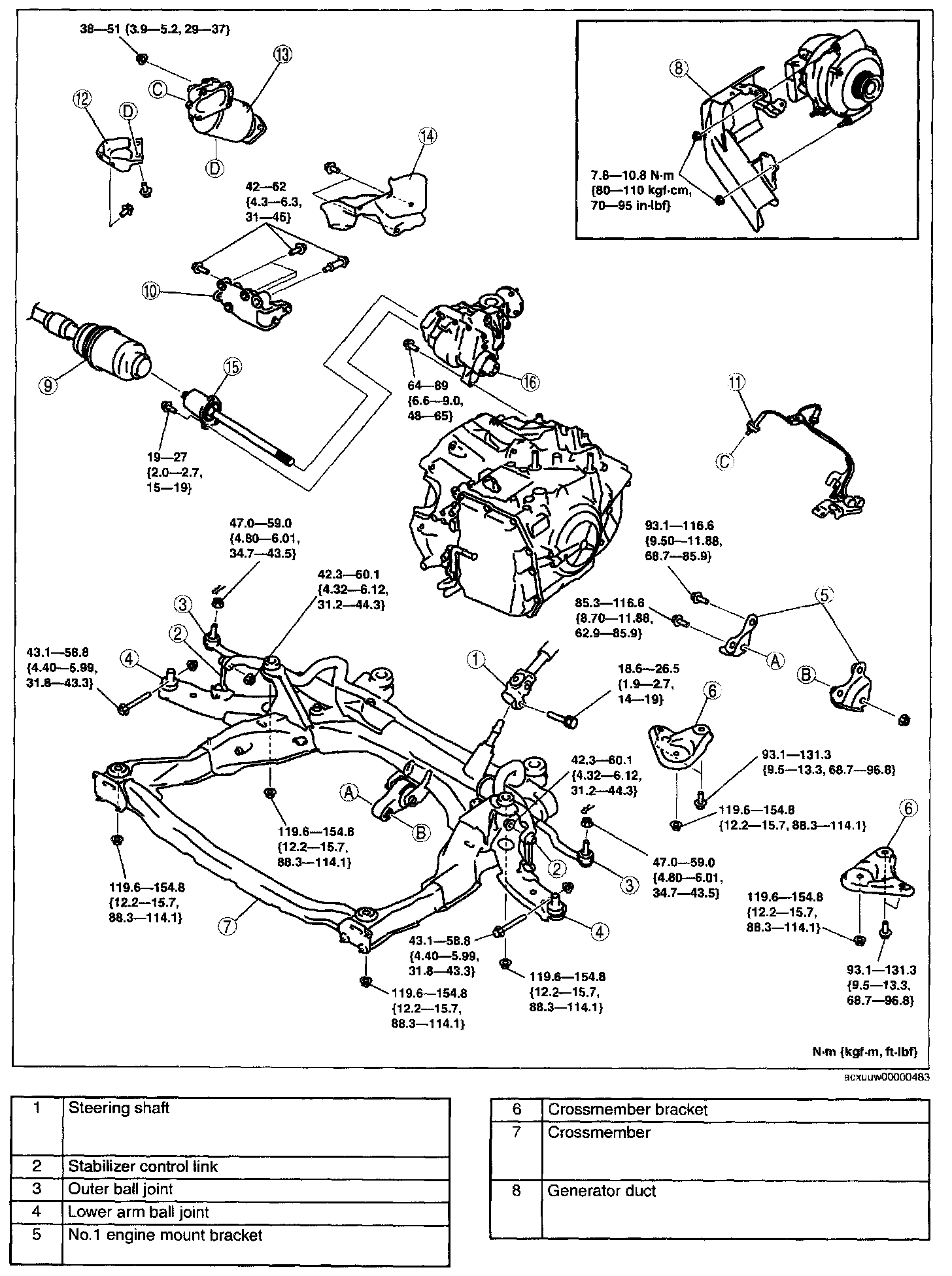

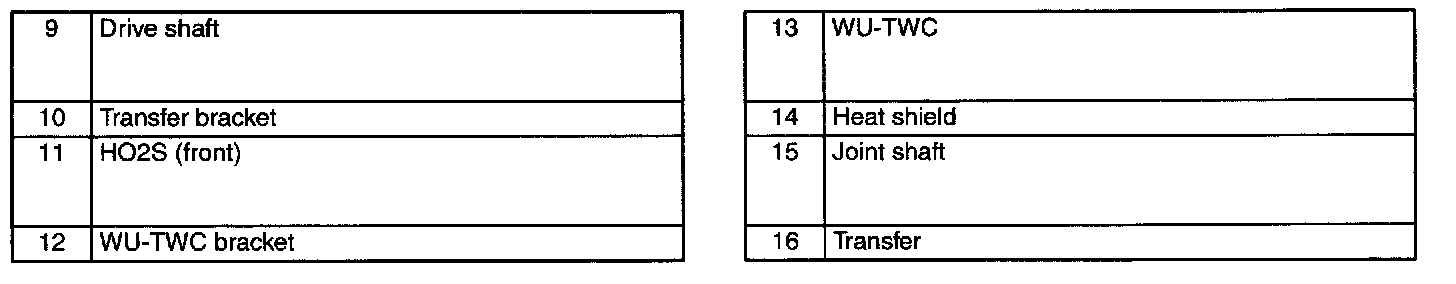

5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
7. Warm up the engine and transaxle, inspect for oil leakage, and inspect the transfer operation.

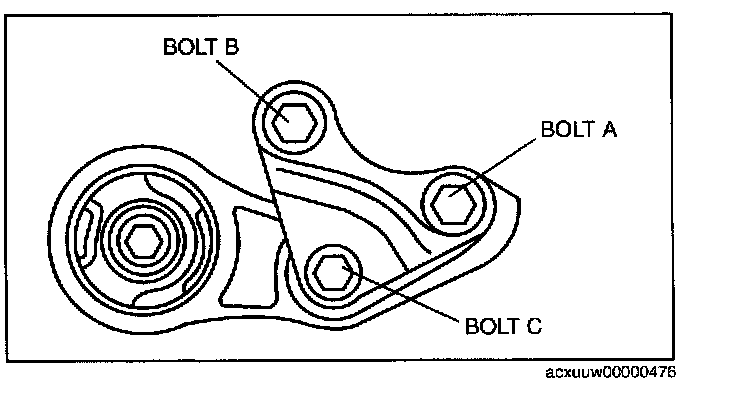

No.1 Engine Mount Installation Note
1. Install the No.1 engine mount bracket on the automatic transaxle case and temporarily tighten bolt A and B.
2. Install the No. 1 engine mount rubber on the bracket and temporarily tighten bolt C.
3. Fully tighten bolt A and B in order of A->B.
Tightening torque
Bolt A, B: 93.1 - 116.6 Nm (9.50 - 11.88 kgf-m, 68.7 - 85.9 ft-lbf)
Bolt C: 85.3 - 116.6 Nm (87.0 - 11.88 kgf-m, 62.9 - 85.9 ft-lbf)
4. Fully tighten the bolt C.
