Second-Row Seat Removal/Installation
Second-Row Seat Removal/Installation

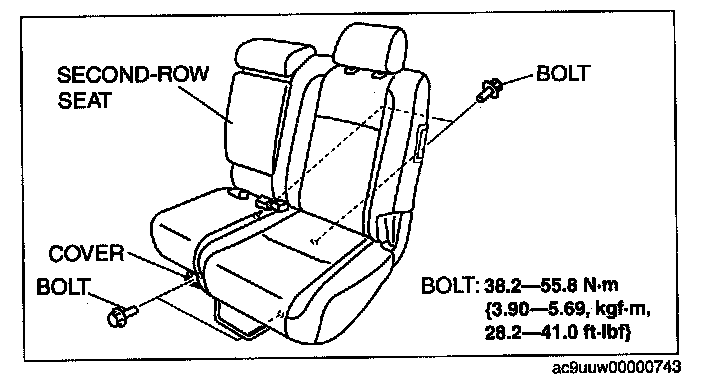

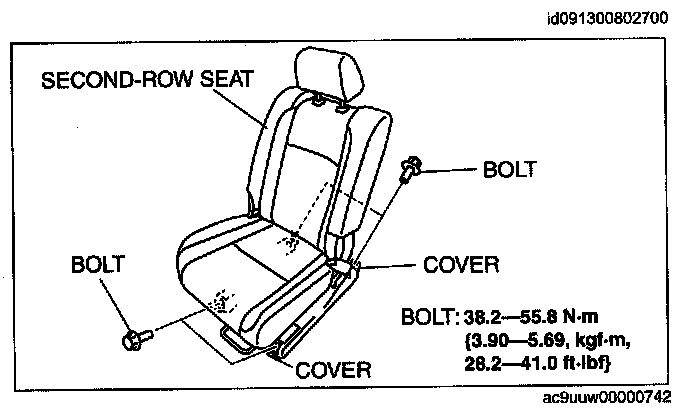

SECOND-ROW SEAT REMOVAL/INSTALLATION
1.
Remove the covers.
2.
Remove the bolts, then remove the second-row seat.
3.
Install in the reverse order of removal.
