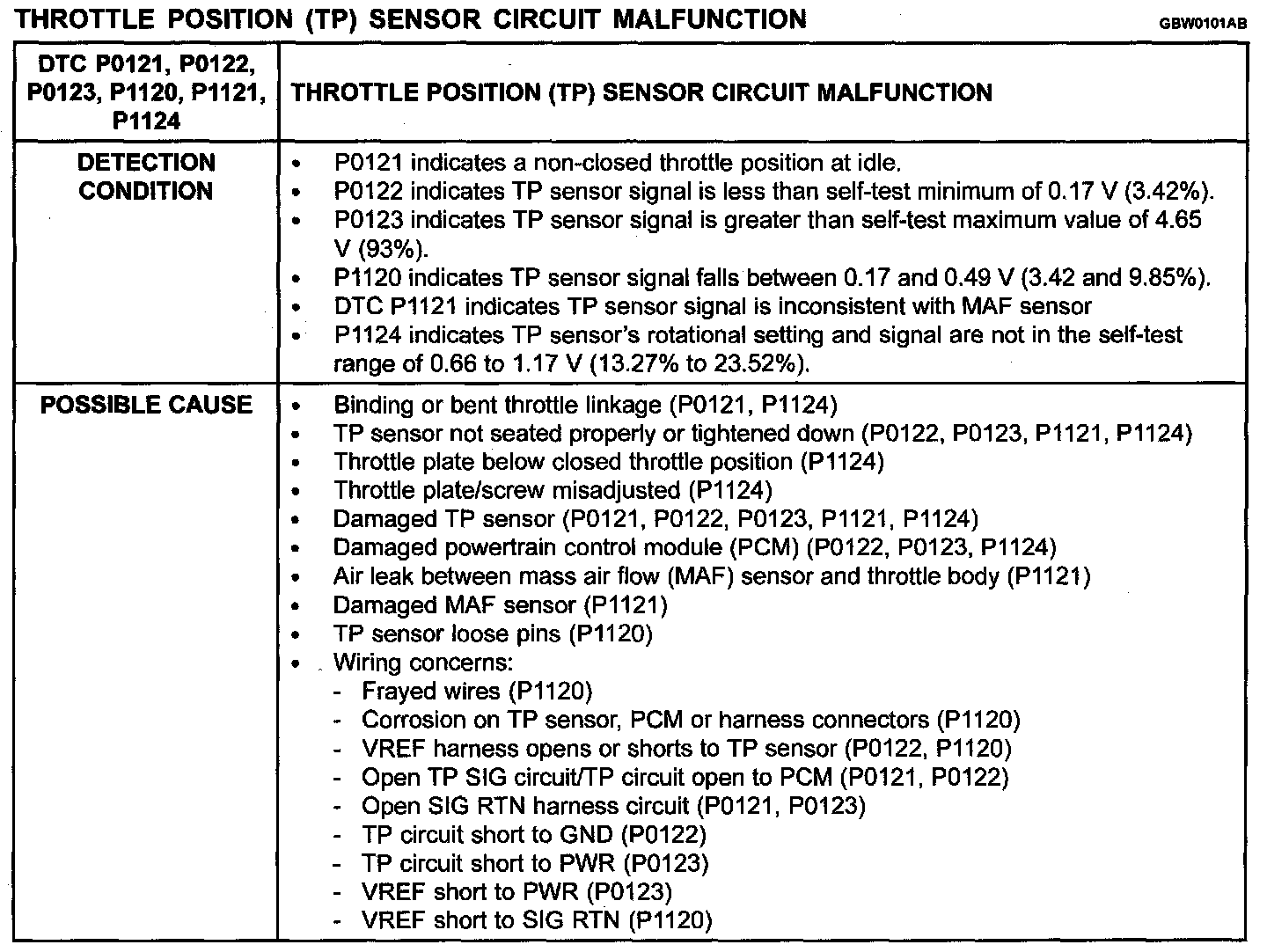

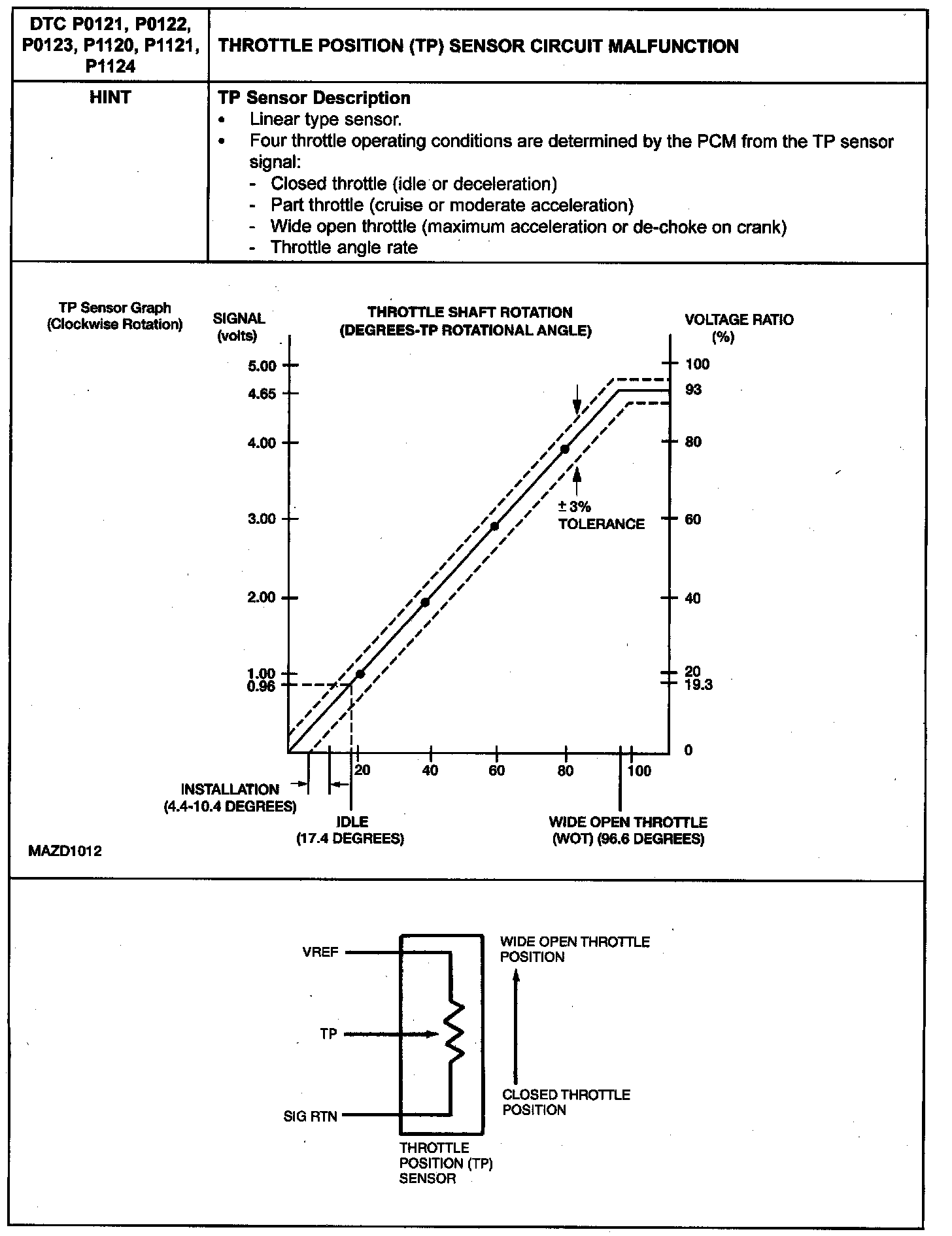

P0123

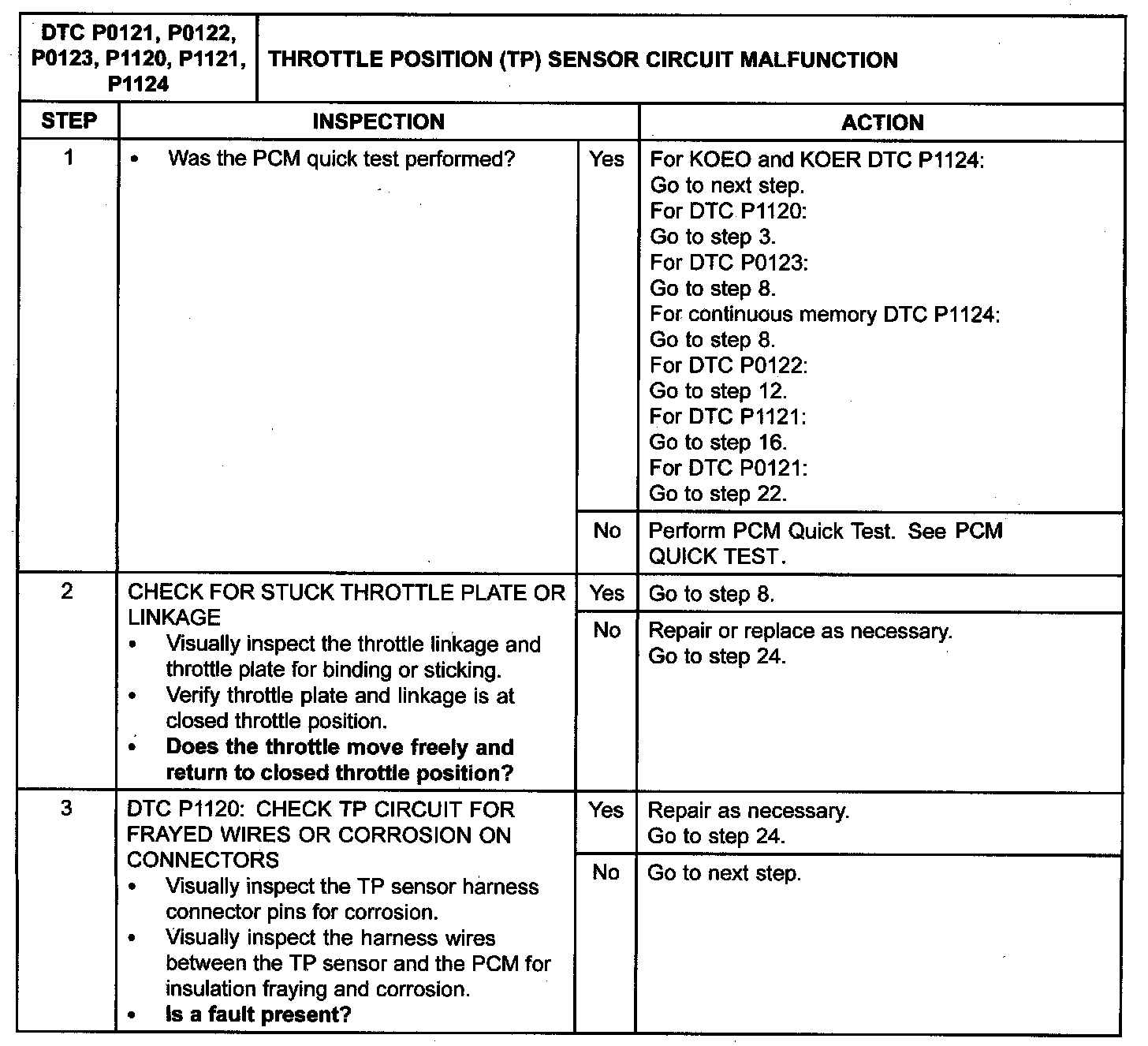

Step 1-Step 3:

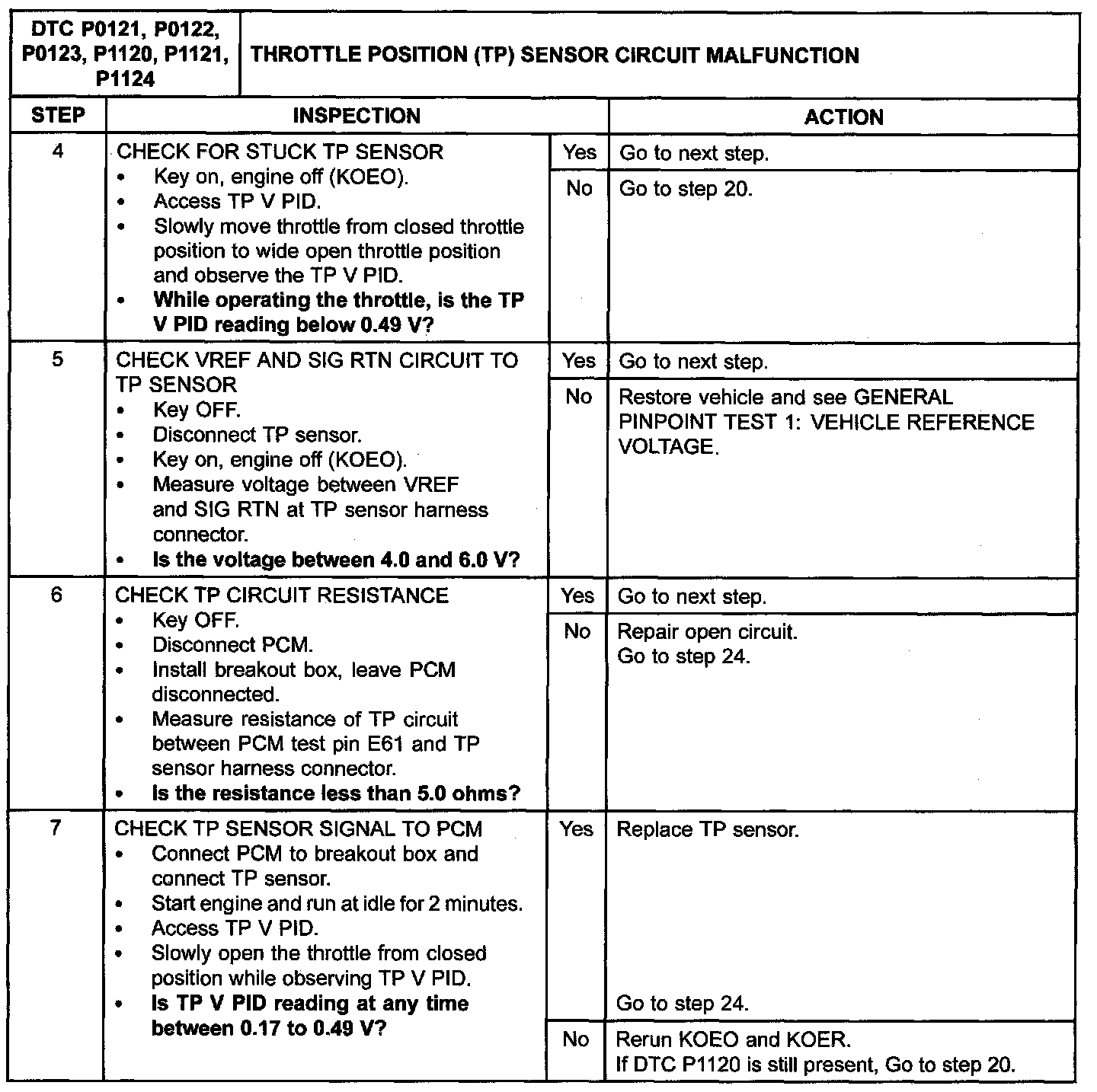

Step 4-Step 7:

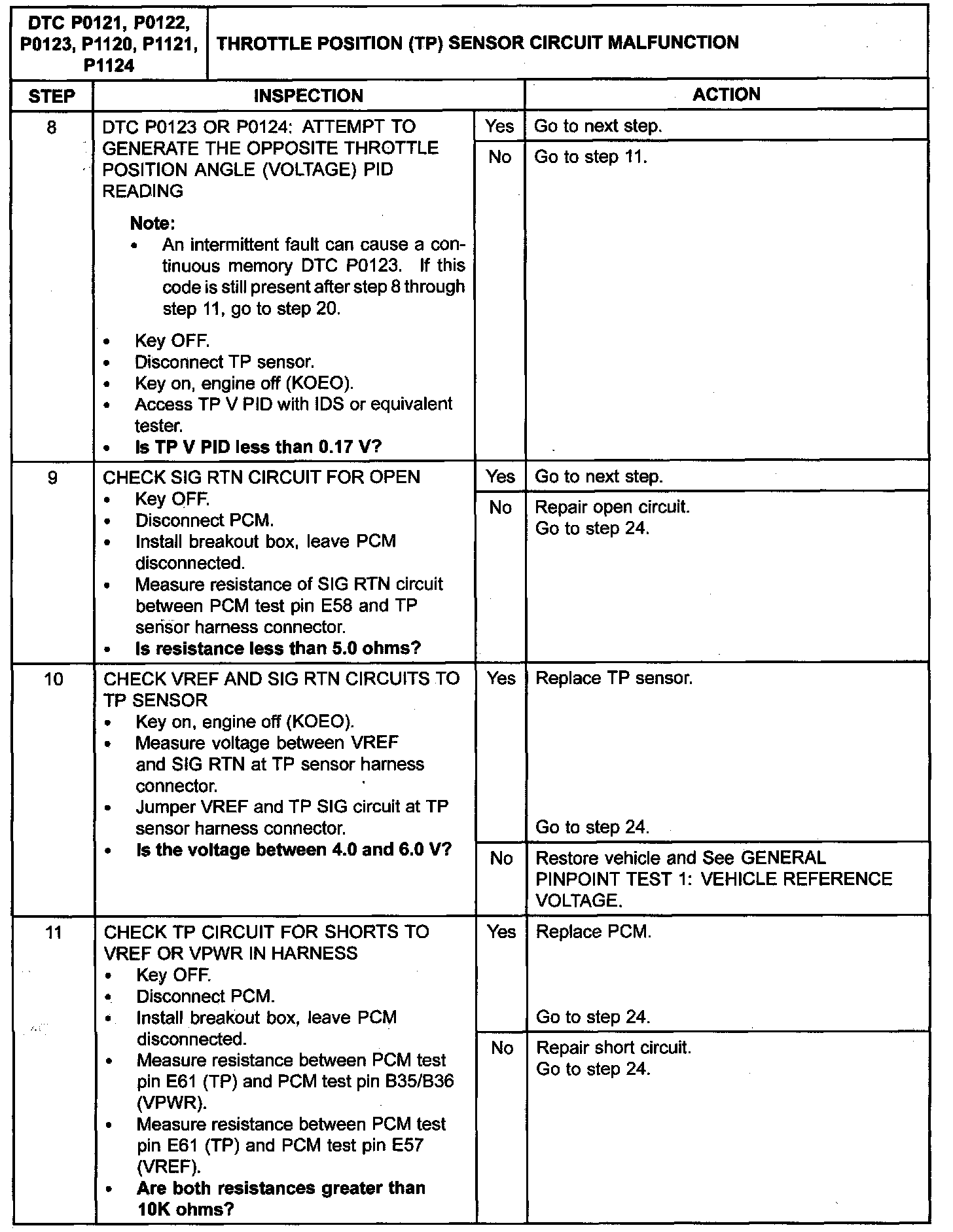

Step 8-Step 11:

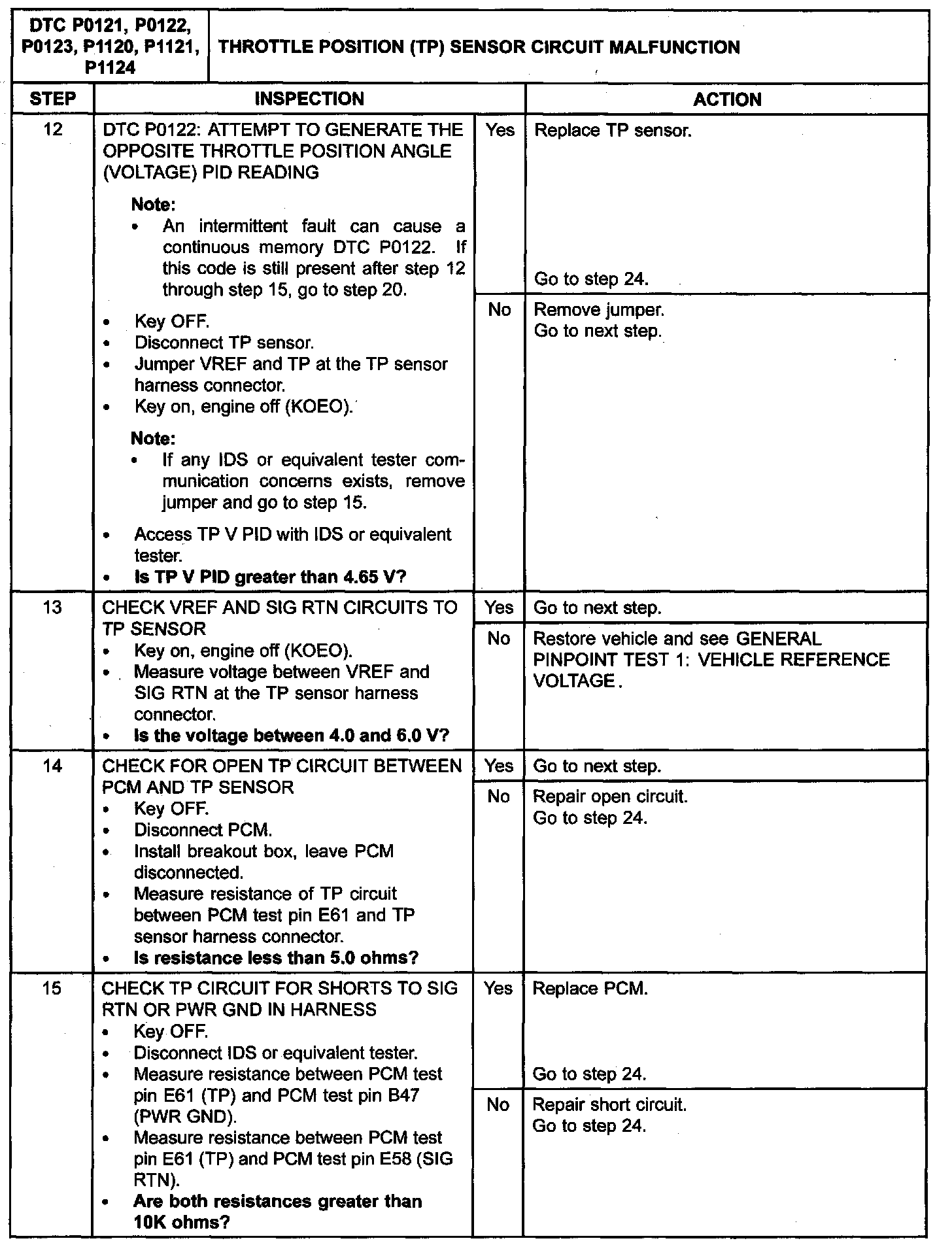

Step 12-Step 15:

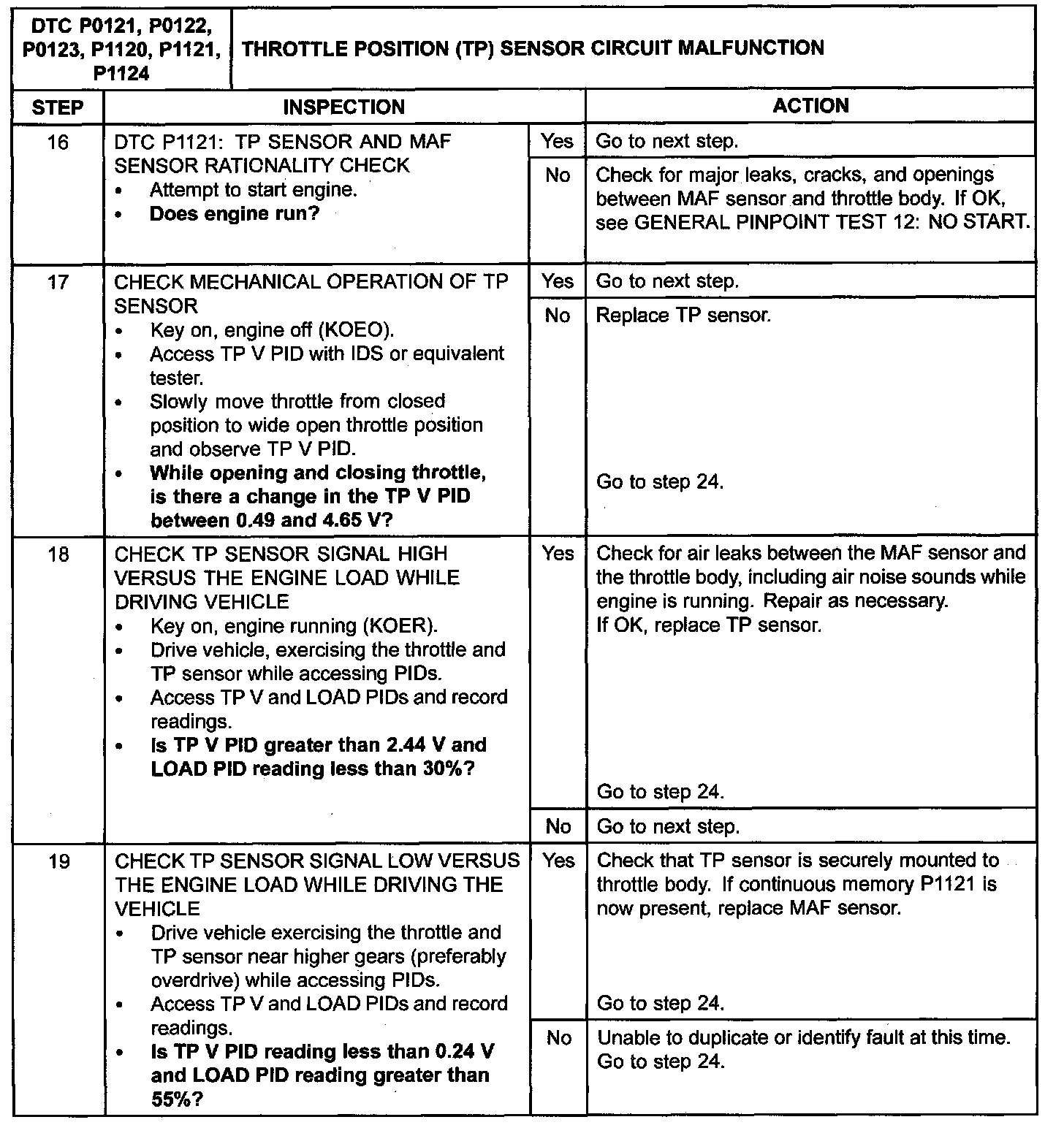

Step 16-Step 19:

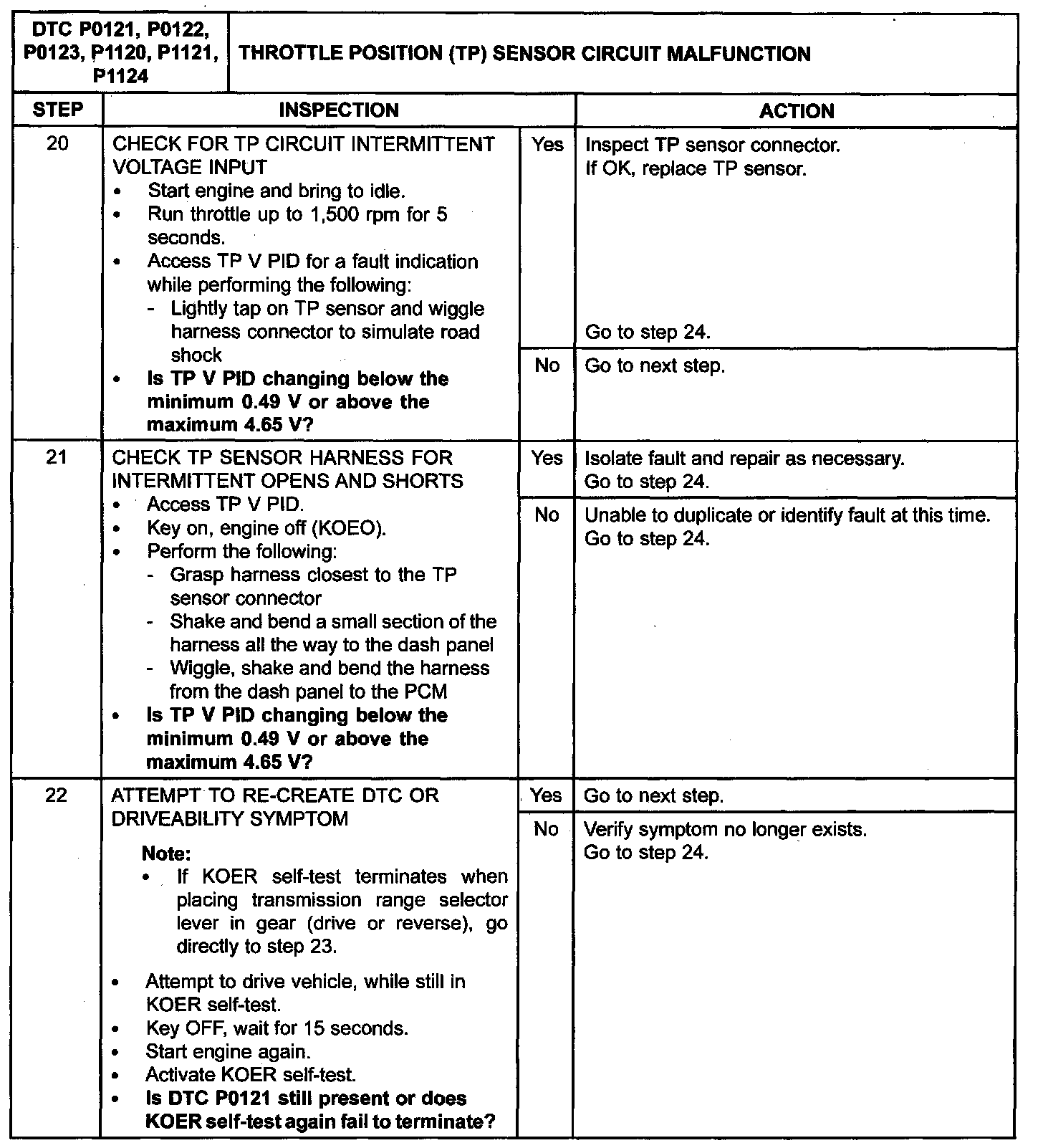

Step 20-Step 22:

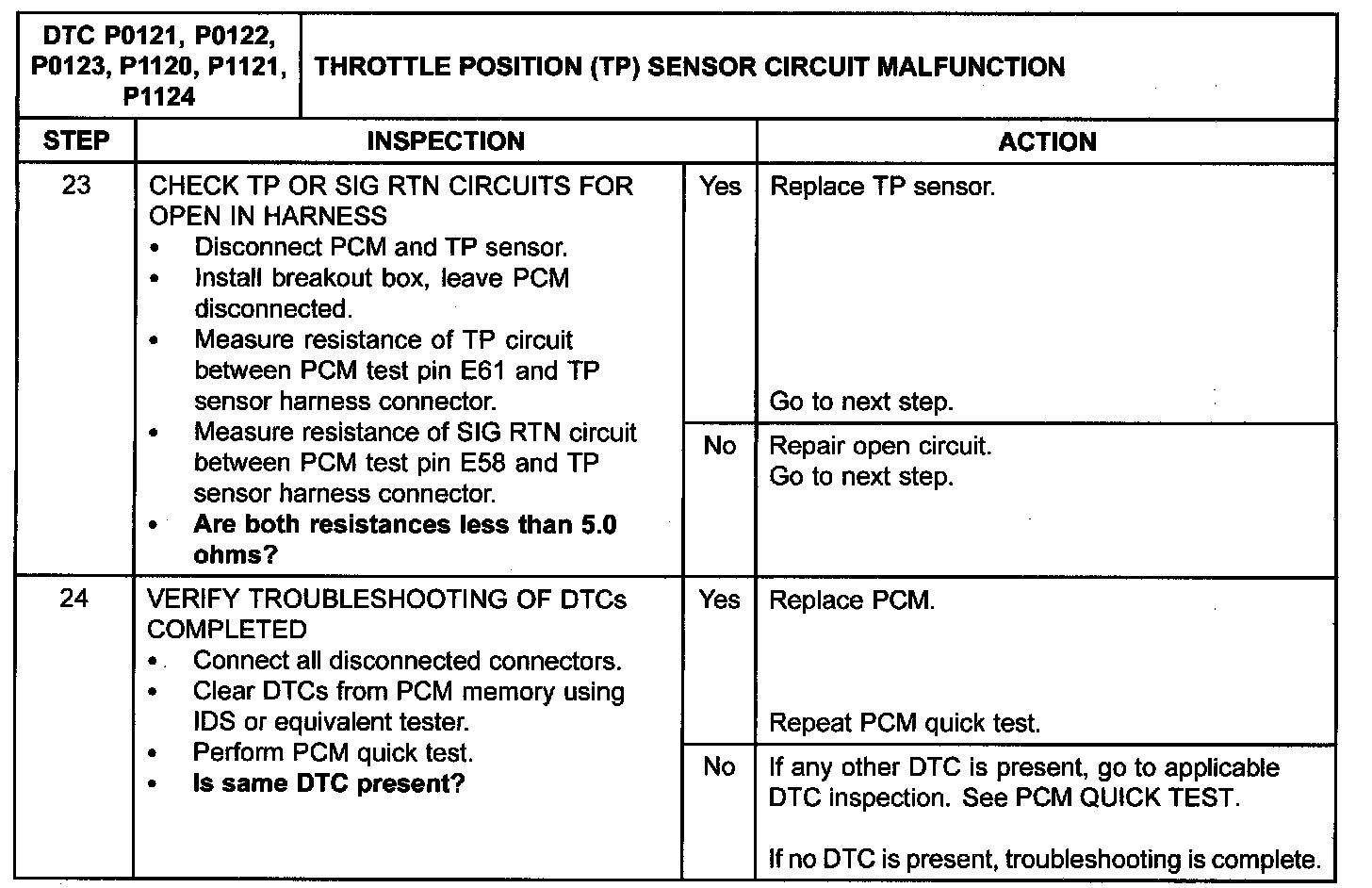

Step 23-Step 24:
