Pinpoint Test 6: The Audio Input Jack Is Inoperative/Does Not Work Correctly - Audio Units With External Audio Input
PINPOINT TEST 6: THE AUDIO INPUT JACK IS INOPERATIVE/DOES NOT WORK CORRECTLY - AUDIO UNITS WITH EXTERNAL AUDIO INPUTNormal Operation
Audio signals are sent from the audio input jack to the audio unit. There are no external power or ground circuits to the audio input jack.
This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Audio input jack
- Audio unit
CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

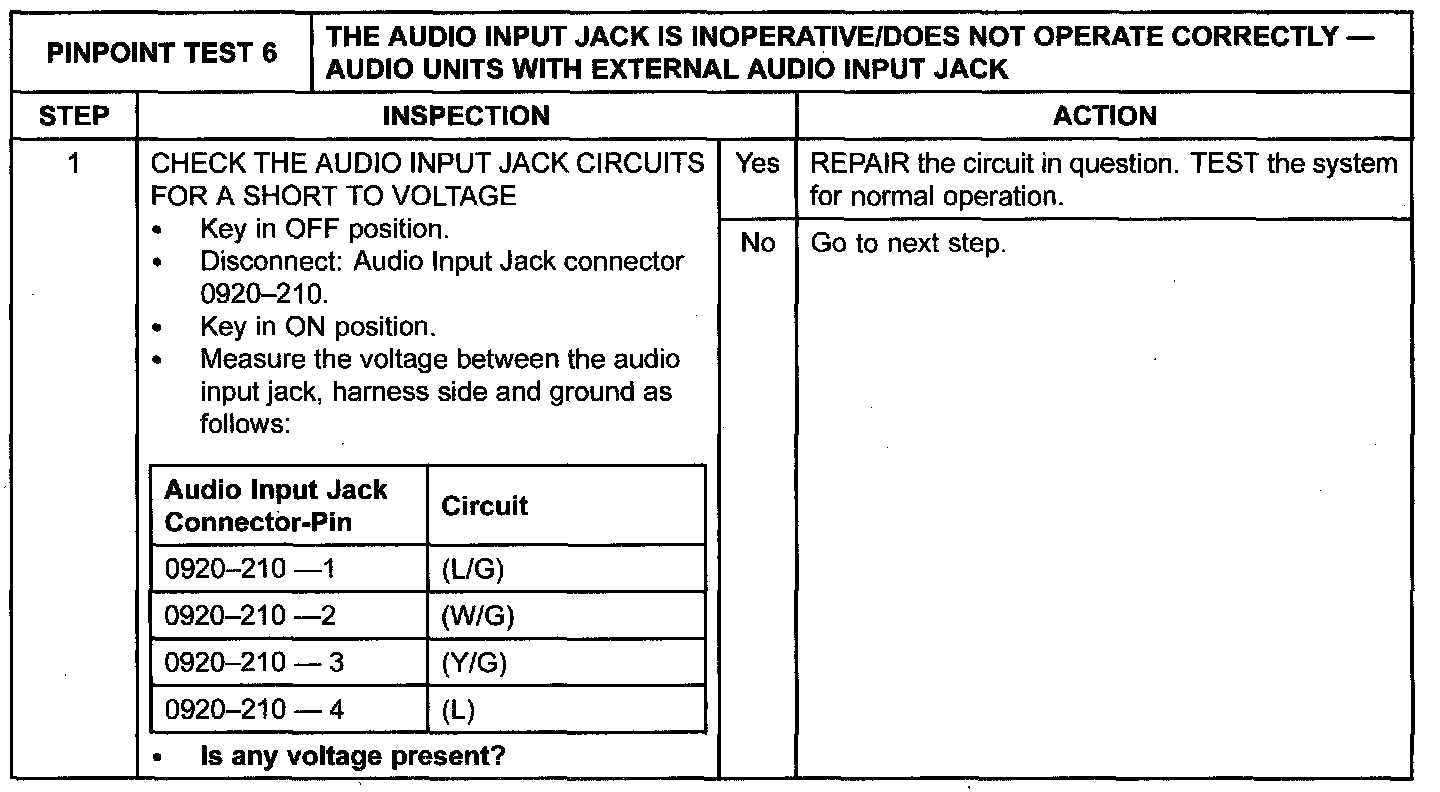

Step 1:

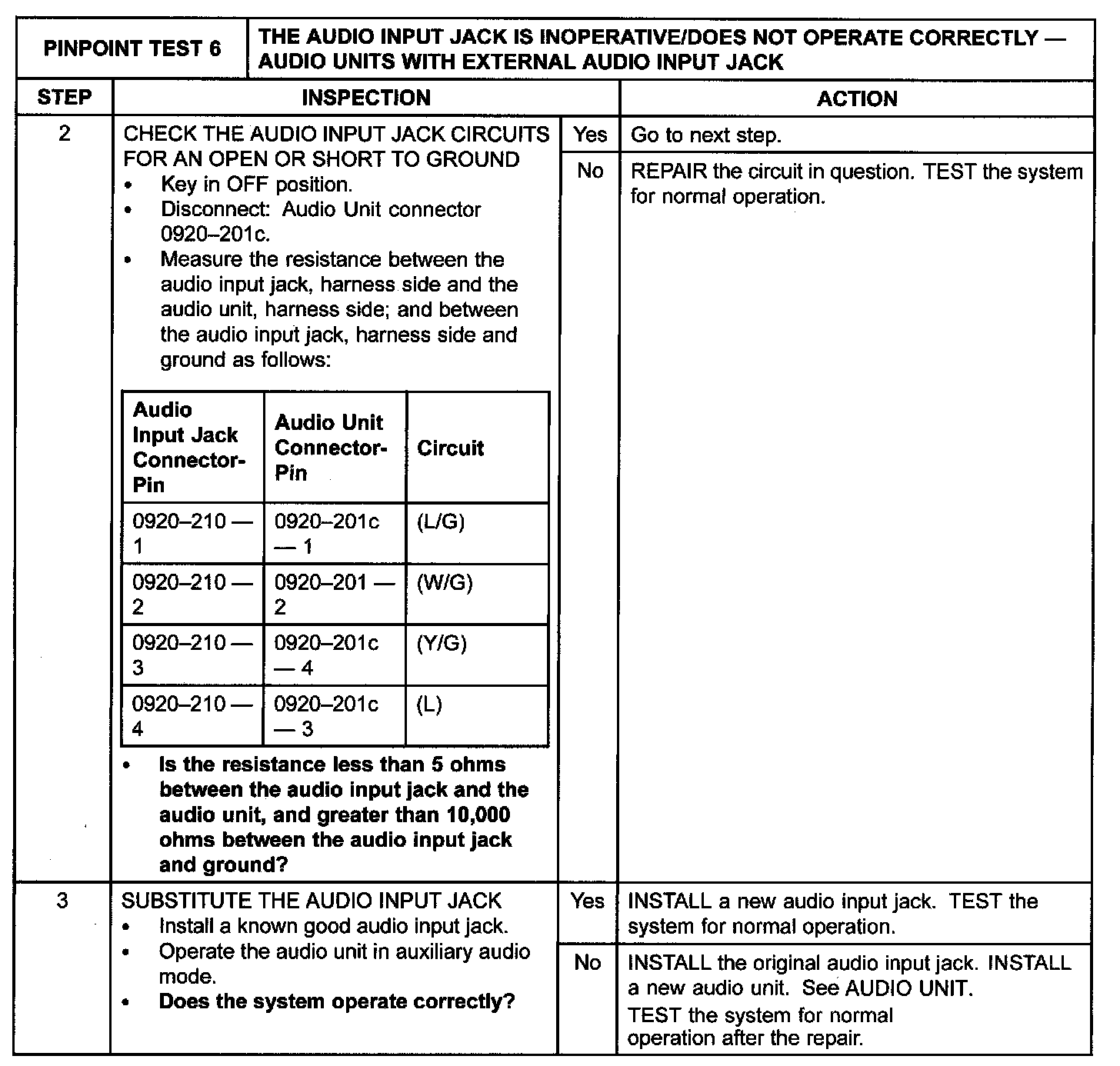

Step 2-Step 3:
