Grille Opening Panel Reinforcement Removal/Installation

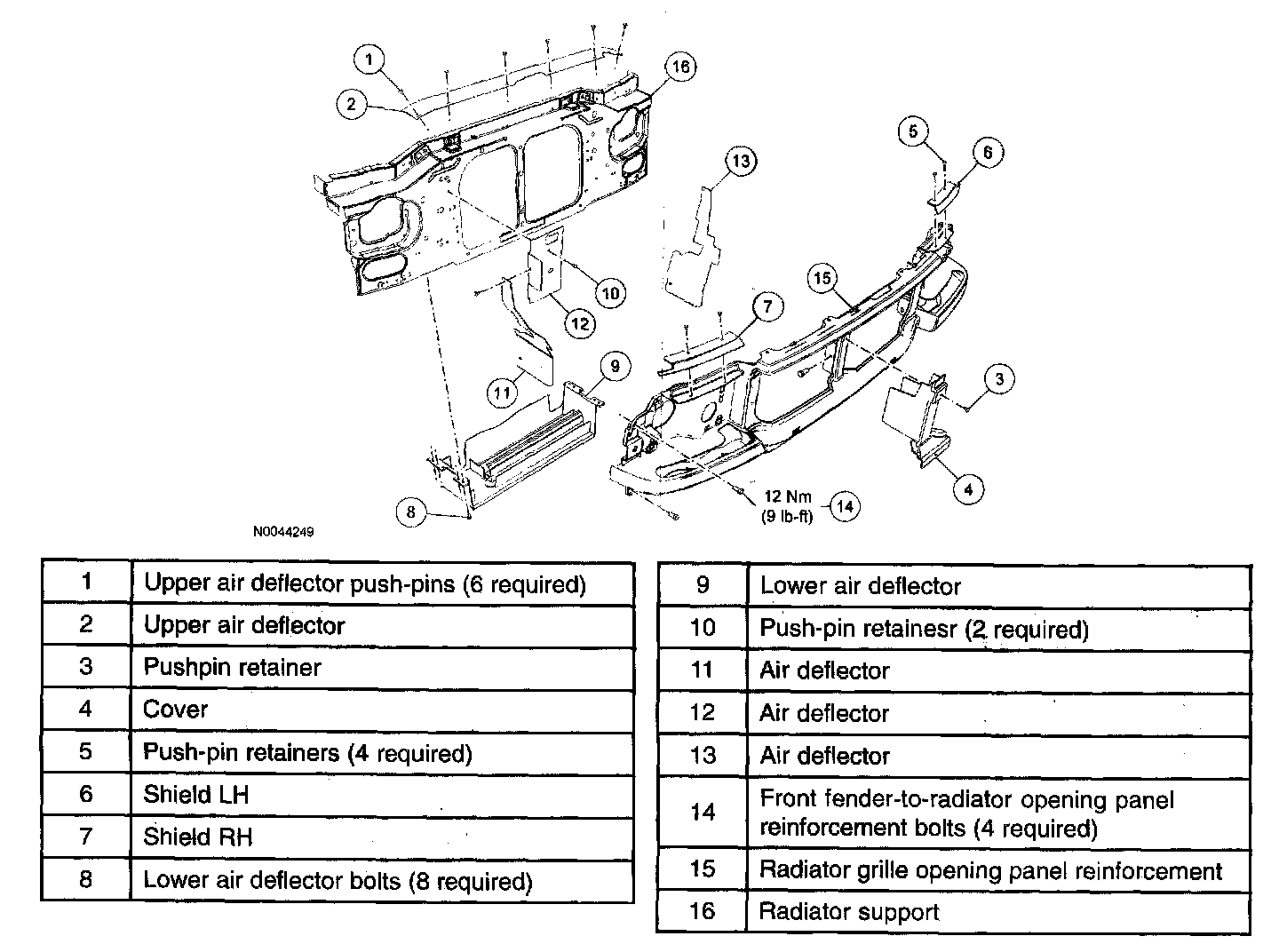

RADIATOR GRILLE OPENING PANEL REINFORCEMENTRadiator Grille Opening Panel Reinforcement:
Removal and Installation
1. Remove the radiator grille opening panel.
NOTE: LH side shown, RH side similar.

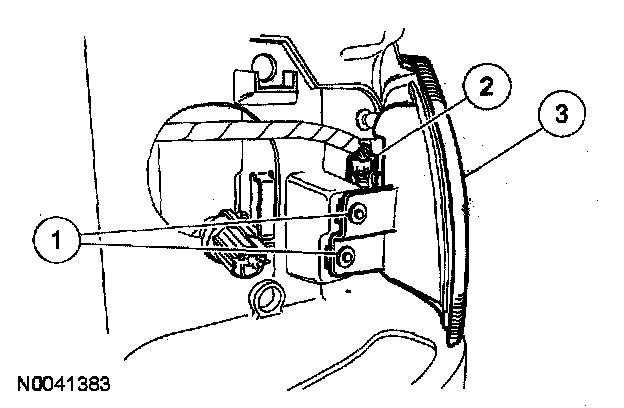

2. Remove the side marker lamps.
1. Remove the 2 bolts.
2. Disconnect the electrical connector.
3. Remove the side marker lamp.
NOTE: LH side shown, RH side similar.

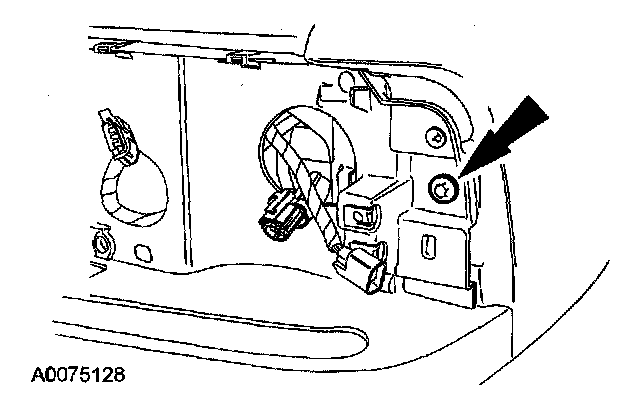

3. Remove the front tender-to-grille opening panel reinforcement bolts.
- To install, tighten to 12 N-m (1.2 kgf-m, 9 ft-lbf).

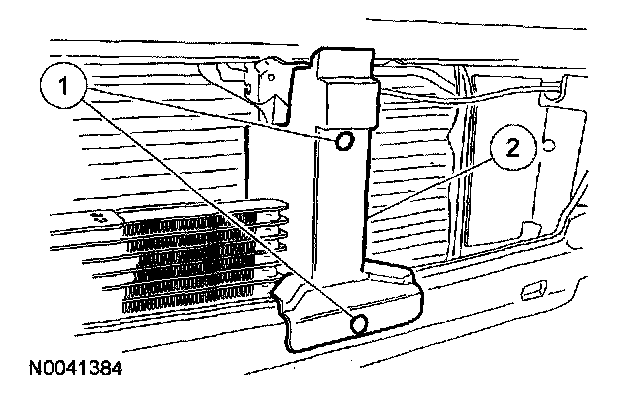

4. Remove the air deflector.
1. Remove the 2 push-pins
2. Remove the air deflector.

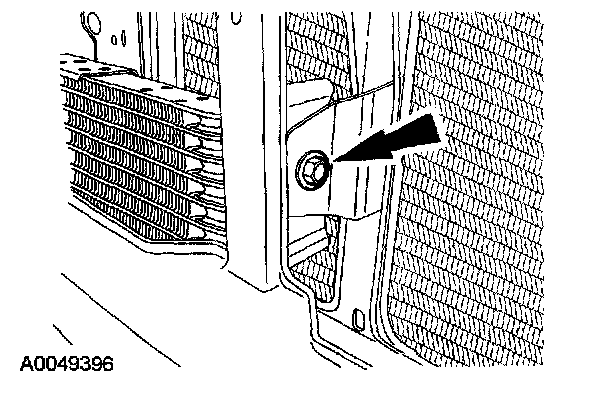

5. Remove the auxiliary power steering cooler-to-radiator grille opening panel reinforcement bolt.
- To install, tighten to 12 N-m (1.2 kgf-m, 9 ft-lbf).
6. Remove the horn.
1. Remove the bolt.
2. Disconnect the electrical connector.
3. Remove the horn.
NOTE: LH side shown, RH side similar.

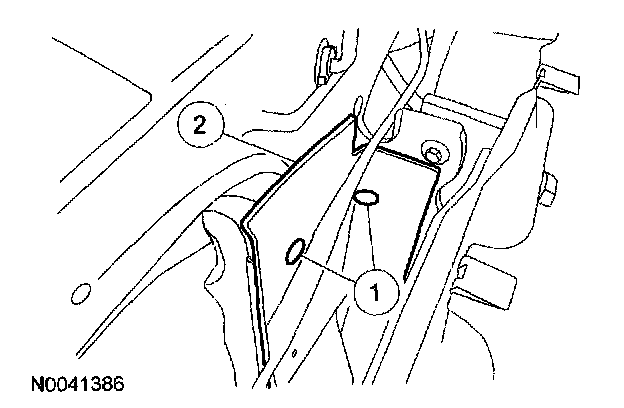

7. Position the air deflectors aside.
1. Remove the 2 push-pins.
2. Position the air deflectors aside.
NOTE: LH side shown, RH side similar.

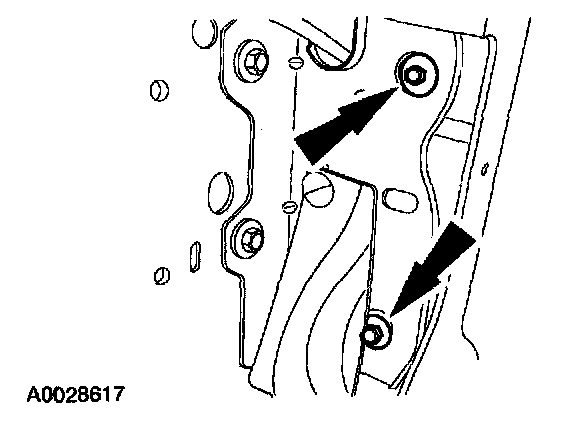

8. Remove the 2 radiator-to-radiator grille opening panel reinforcement bolts.
NOTE: LH side shown. RH side similar.

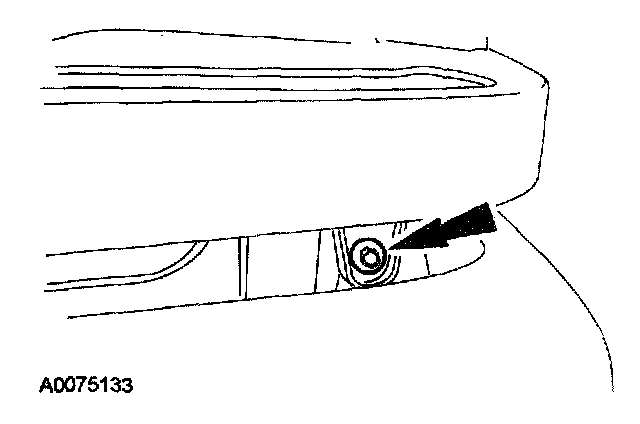

9. From beneath the vehicle, remove the air deflector.
- Remove the 4 push-pins.
NOTE: LH side shown, RH side similar.

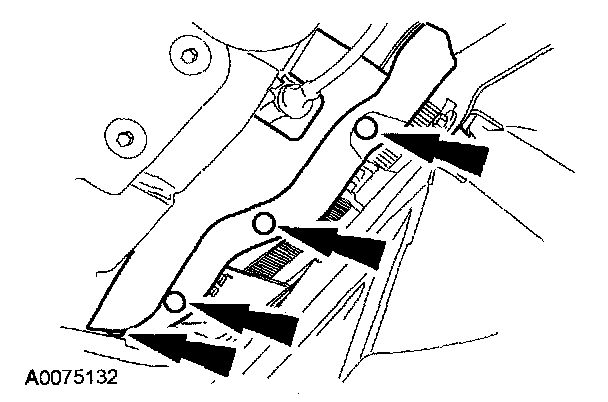

10. Remove the radiator grille opening panel reinforcement-to-front tender bolts.
- To install, tighten to 12 N-m (1.2 kgf-m, 9 ft-lbf).

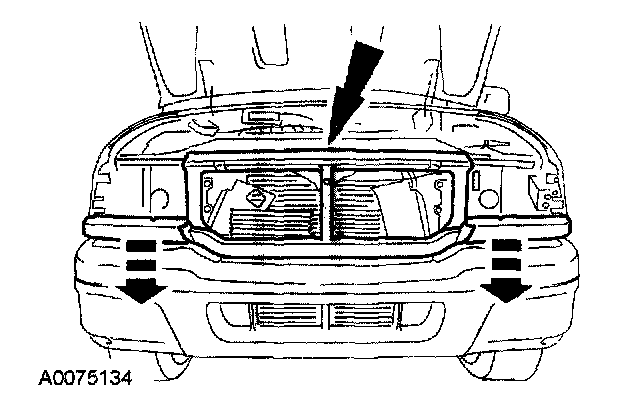

11. Remove the grille opening panel reinforcement.
- Pull straight outward.
12. To install, reverse the removal procedure.
