Radiator Grille Opening Panel

RADIATOR GRILLE OPENING PANEL

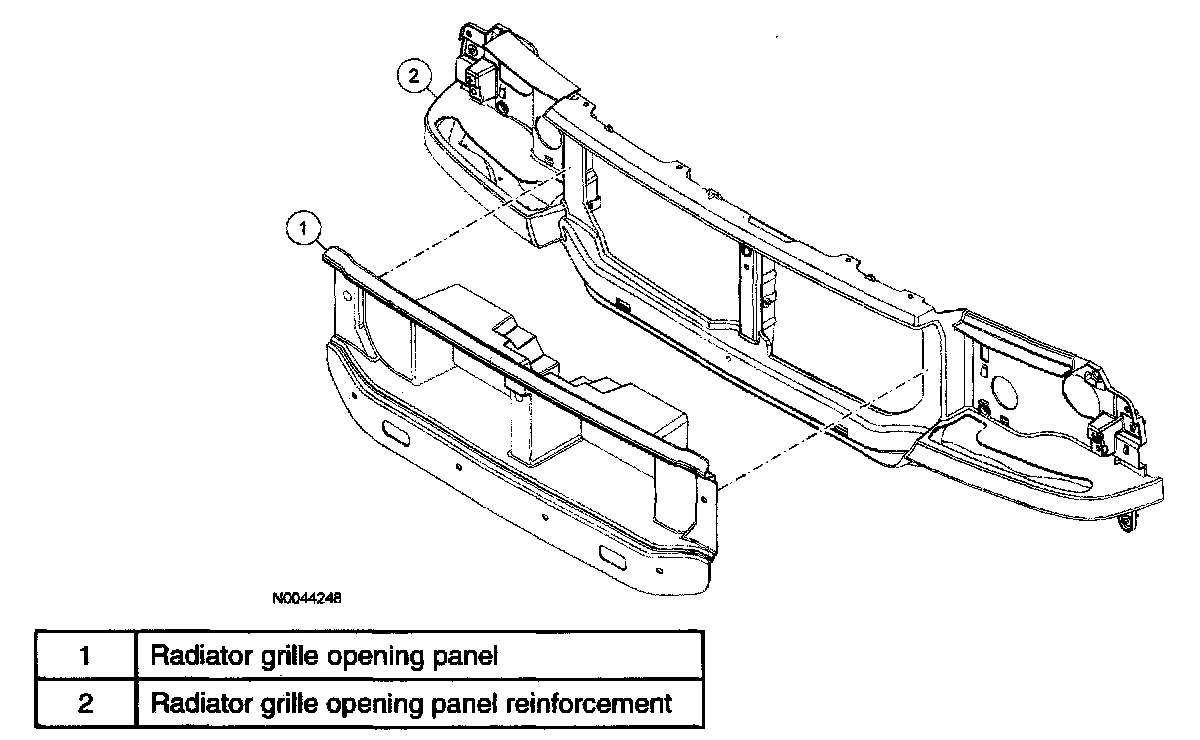

Radiation Grill Opening Panel:

Removal and Installation

1. Remove the headlamp assemblies.

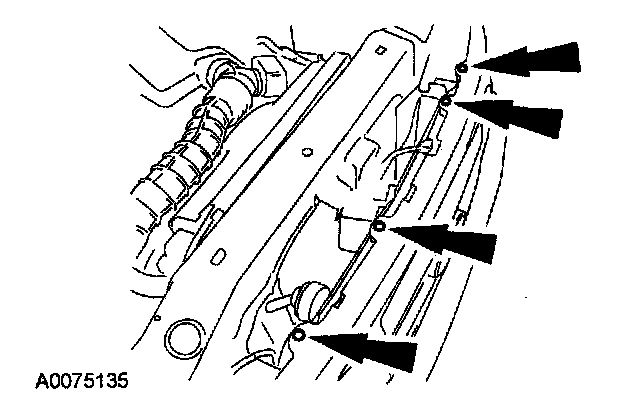

2. Remove the 4 screws from the top of the radiator grille.






3. Remove the radiator grille.
- Position the radiator grille outward and release the retaining clips.

4. Remove the radiator grille opening panel by pulling outward on the panel.
5. To install, reverse the removal procedure.
