Radiator Grille Removal/Installation

RADIATOR GRILLE

Removal and Installation

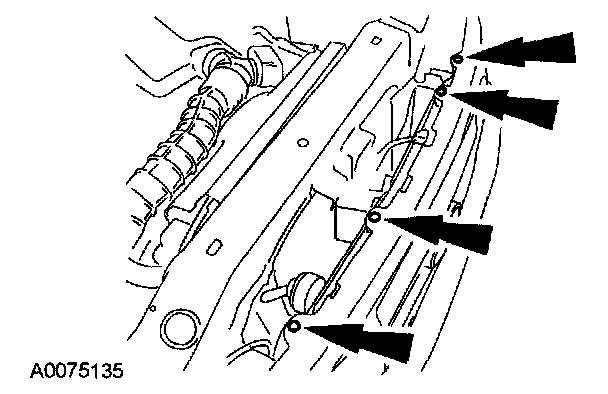

1. Remove the radiator grille screws.

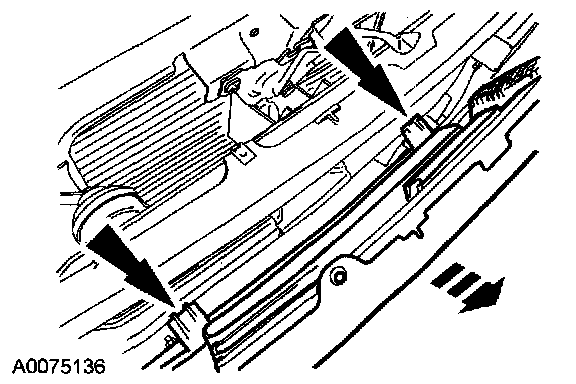

2. Remove the radiator grille opening panel.
- Position the opening panel outward and release the retaining clips.

3. To install, reverse the removal procedure.
