Home >> Mazda >> 2008 >> B2300 L4-2.3L >> Repair and Diagnosis >> Body and Frame >> Locations

Body and Frame: Locations

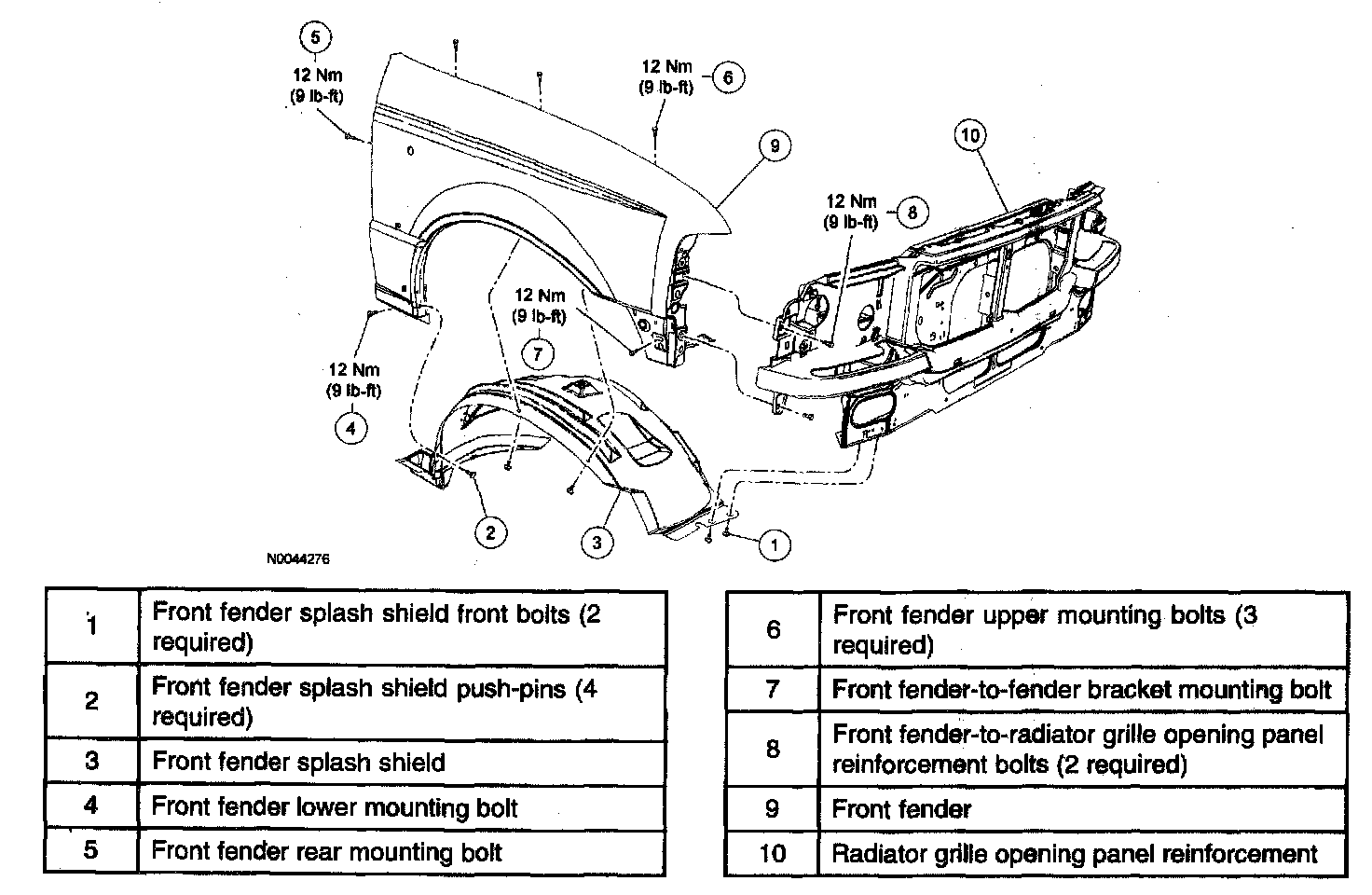

Front End Body Panels - Component View:
