Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Heating and Air Conditioning
Heating and Air Conditioning

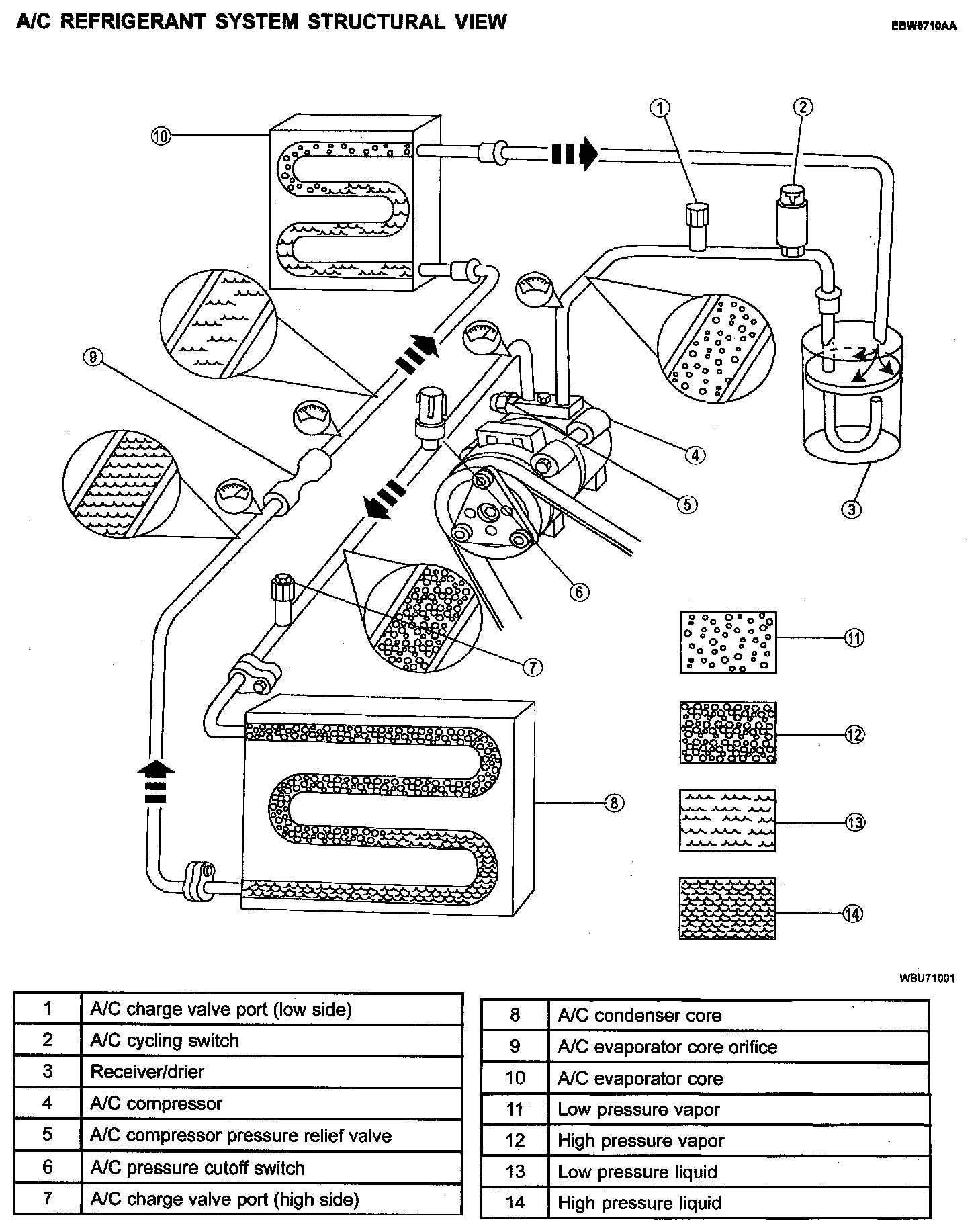

A/C Refrigerant System Structural View:

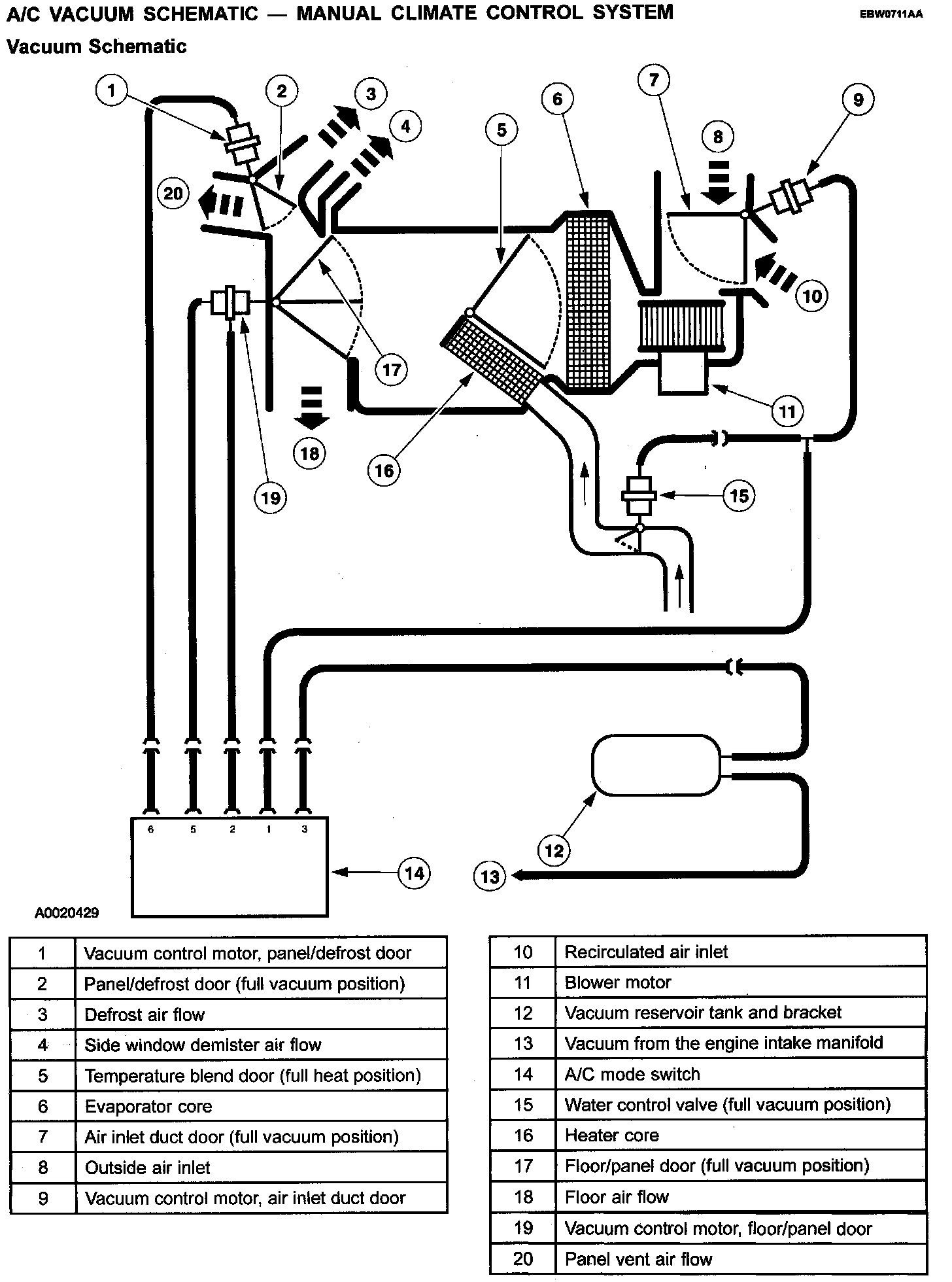

A/C Vacuum Schematic-Manual Climate Control System:

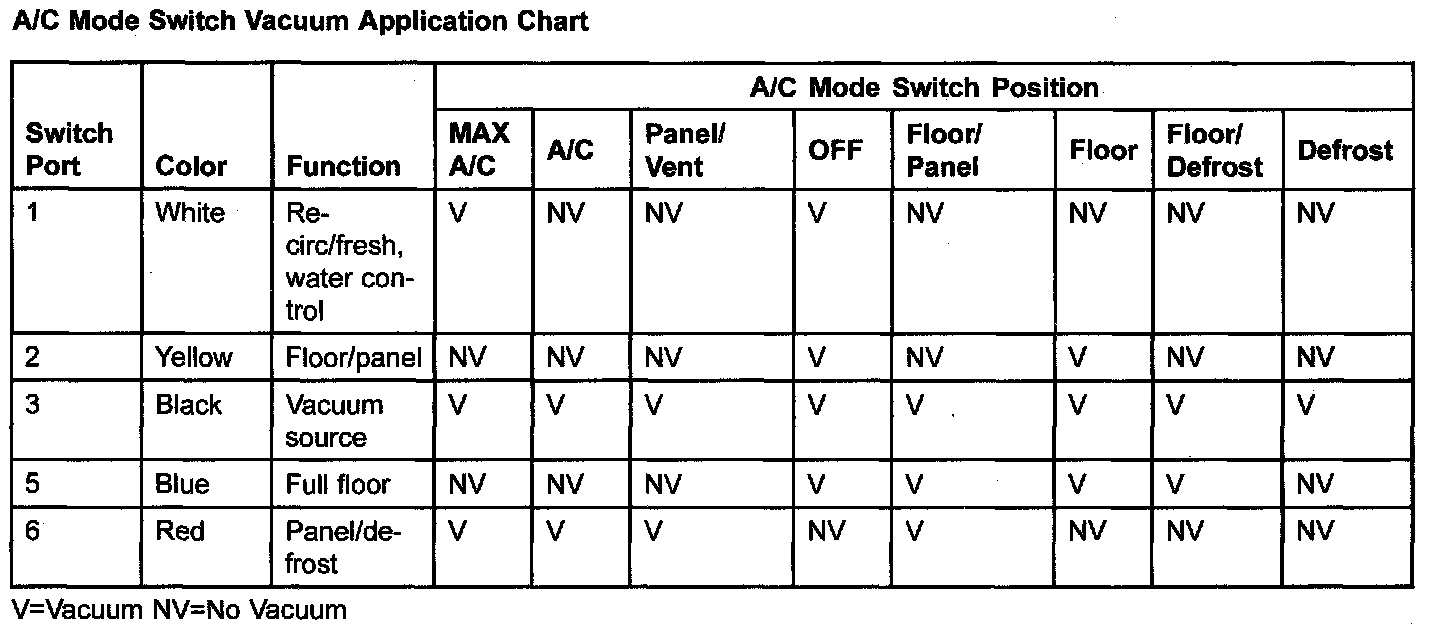

A/c Mode Switch Vacuum Application Chart:
