Pinpoint Test 1: Incorrect/Erratic Direction of Airflow From Outlets
Pinpoint Test 1: Incorrect/Erratic Direction of Airflow From Outlets

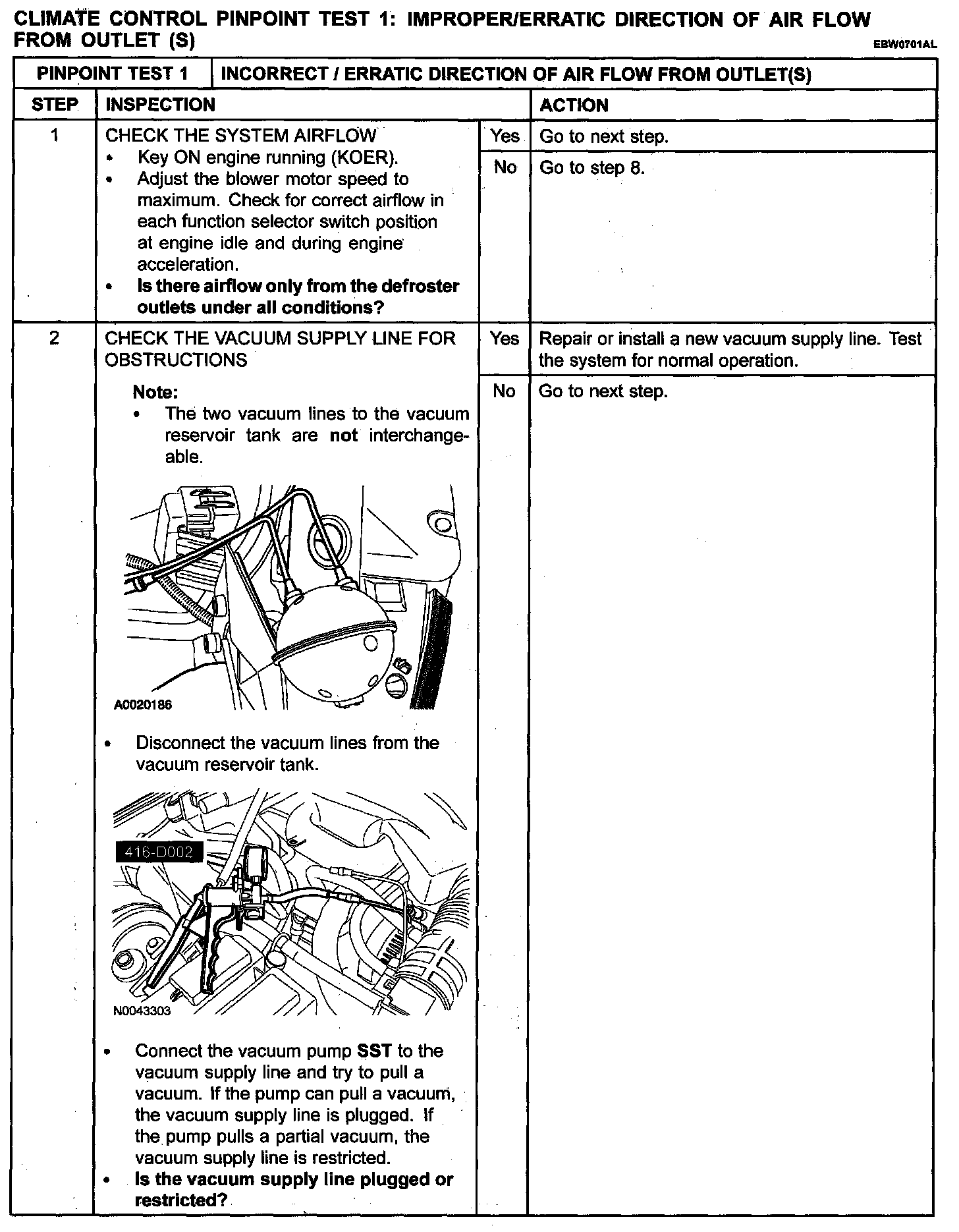

Step 1-Step 2:

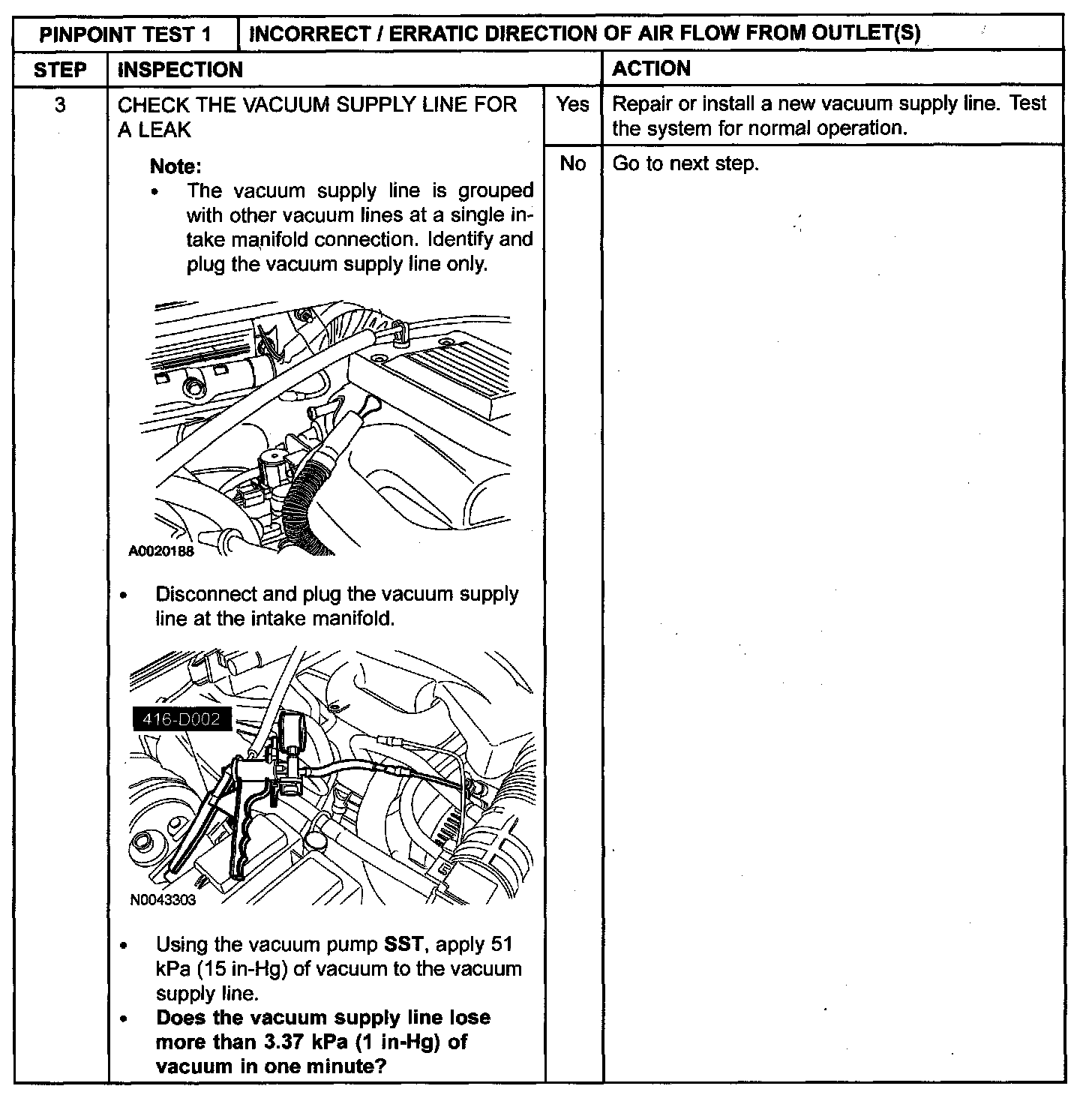

Step 3:

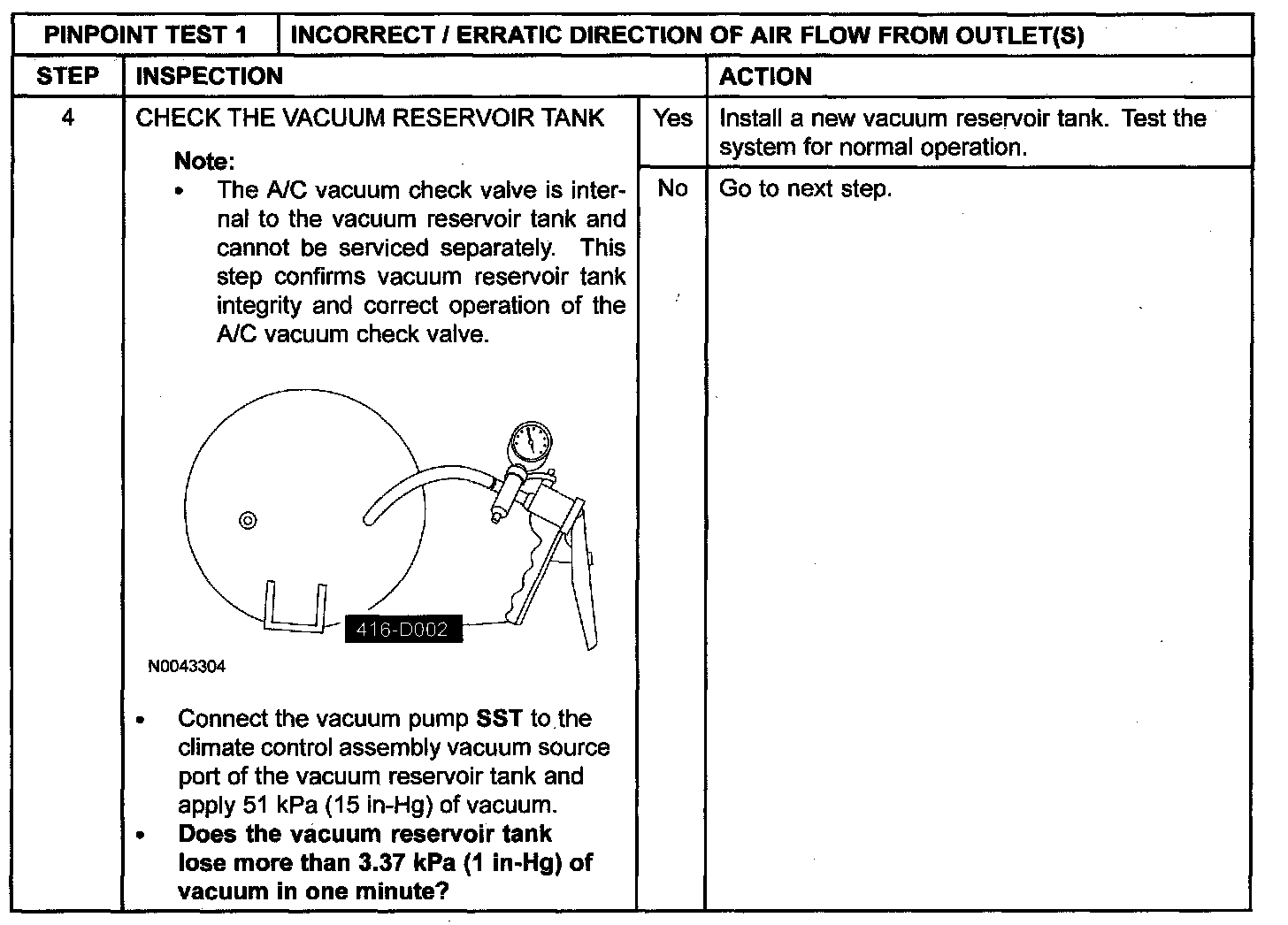

Step 4:

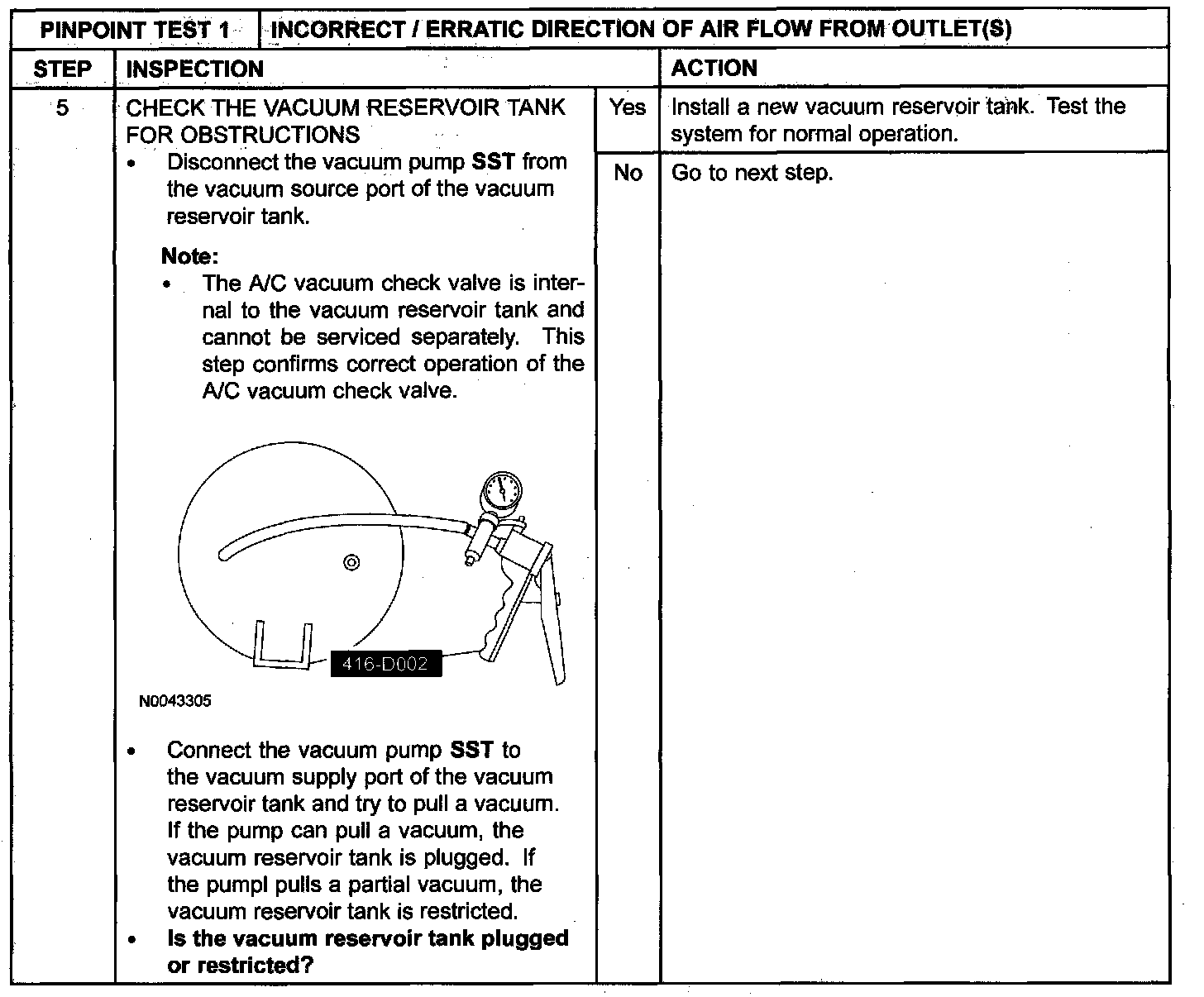

Step 5:

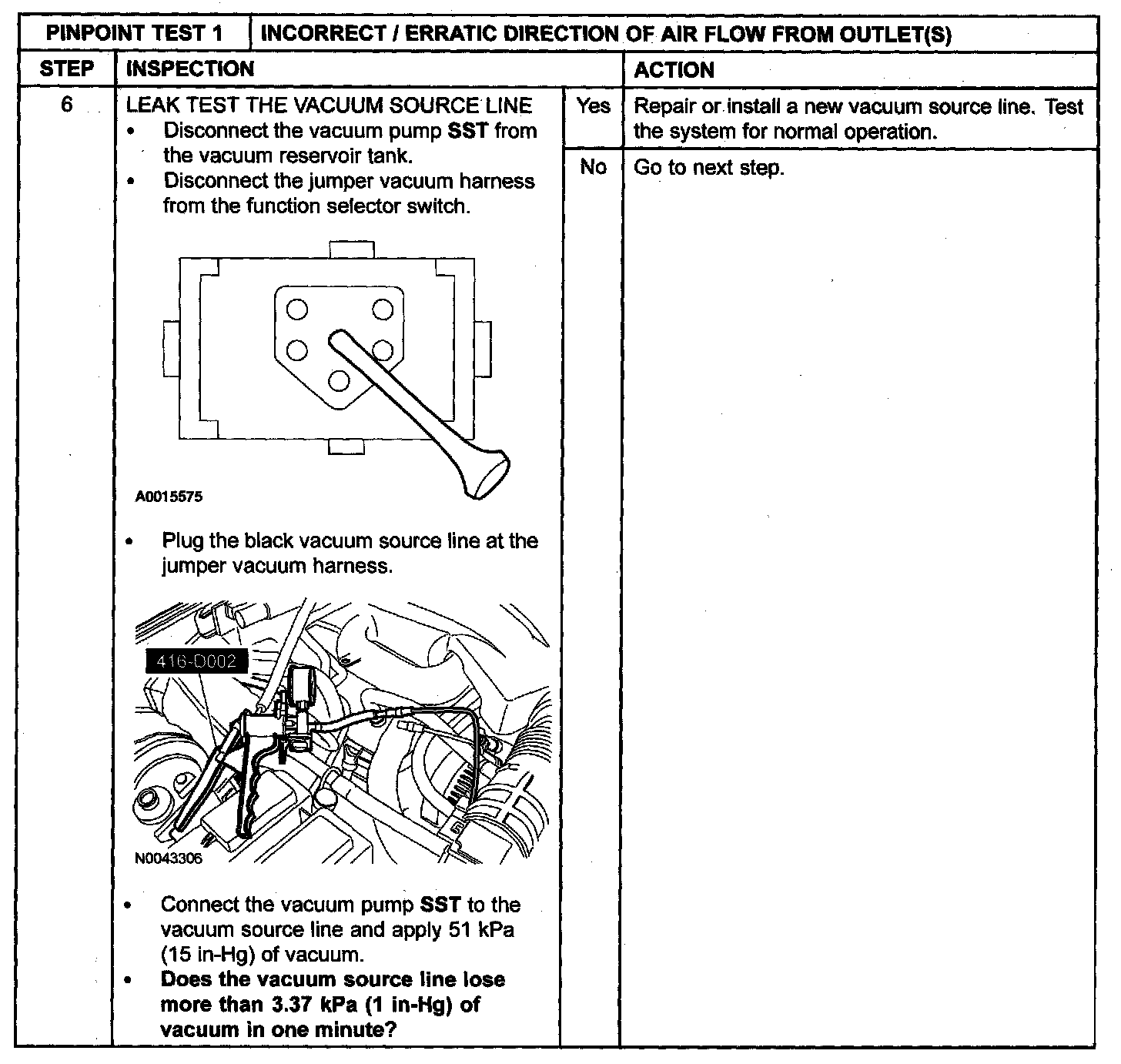

Step 6:

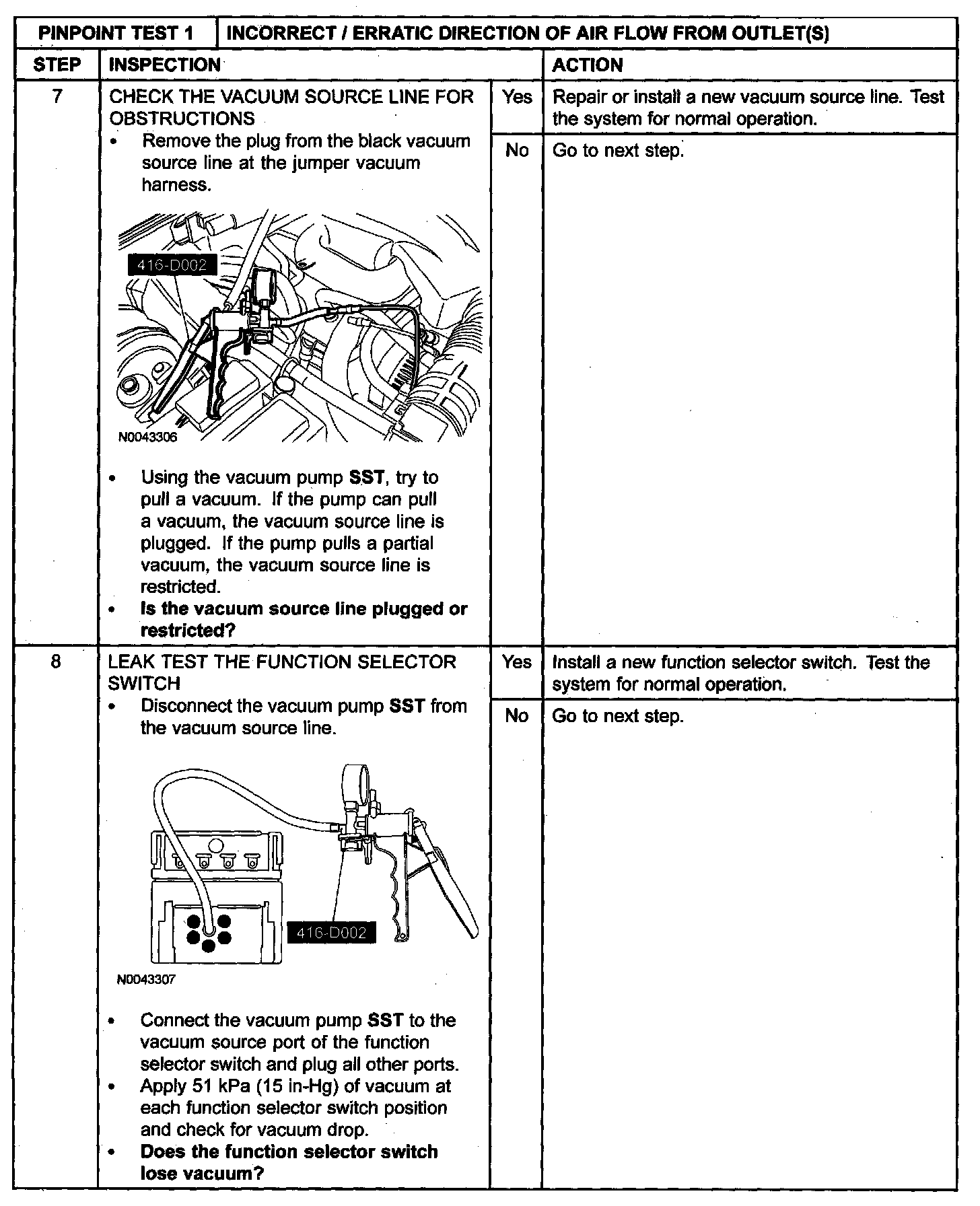

Step 7-Step 8:

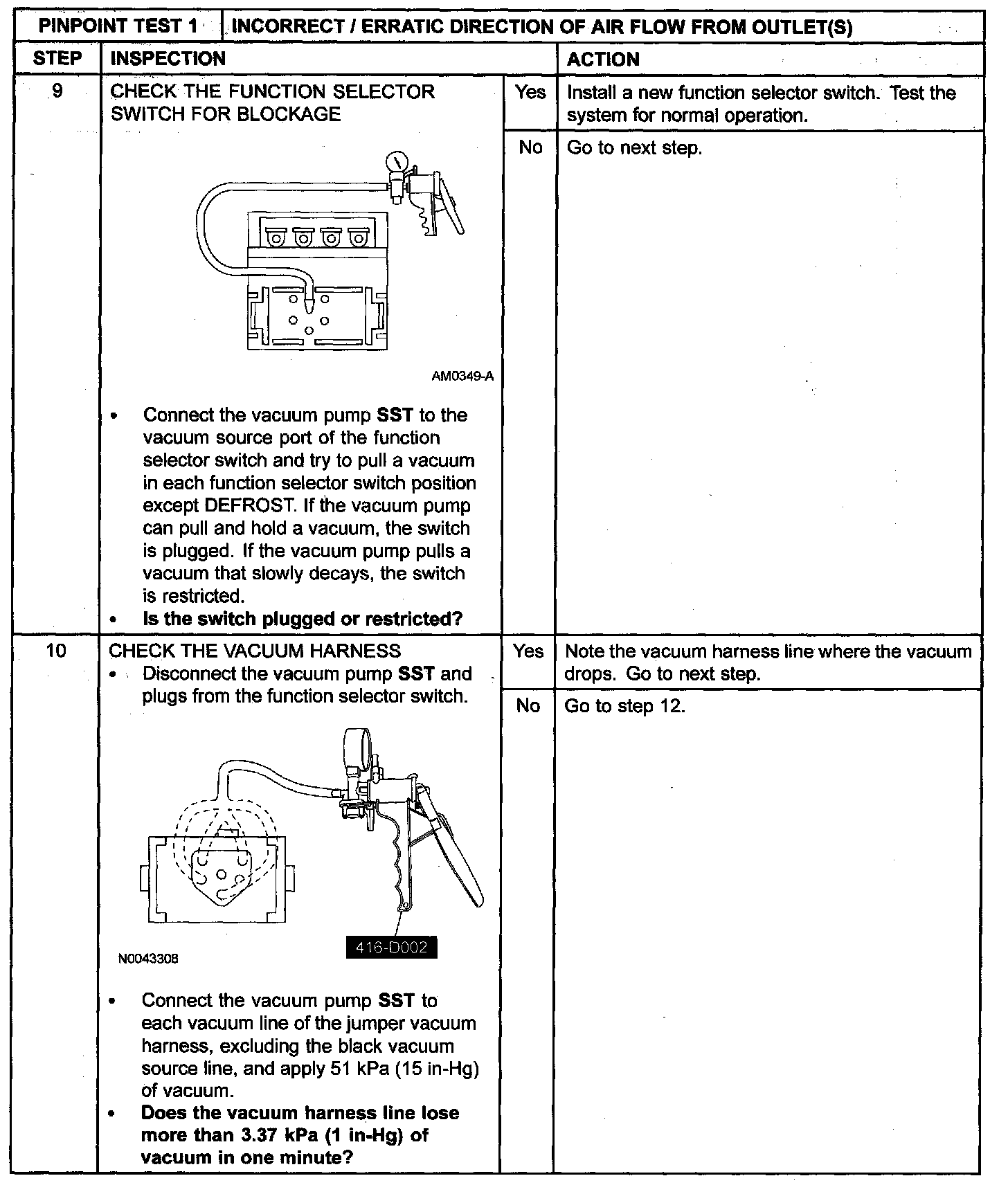

Step 9-Step 10:

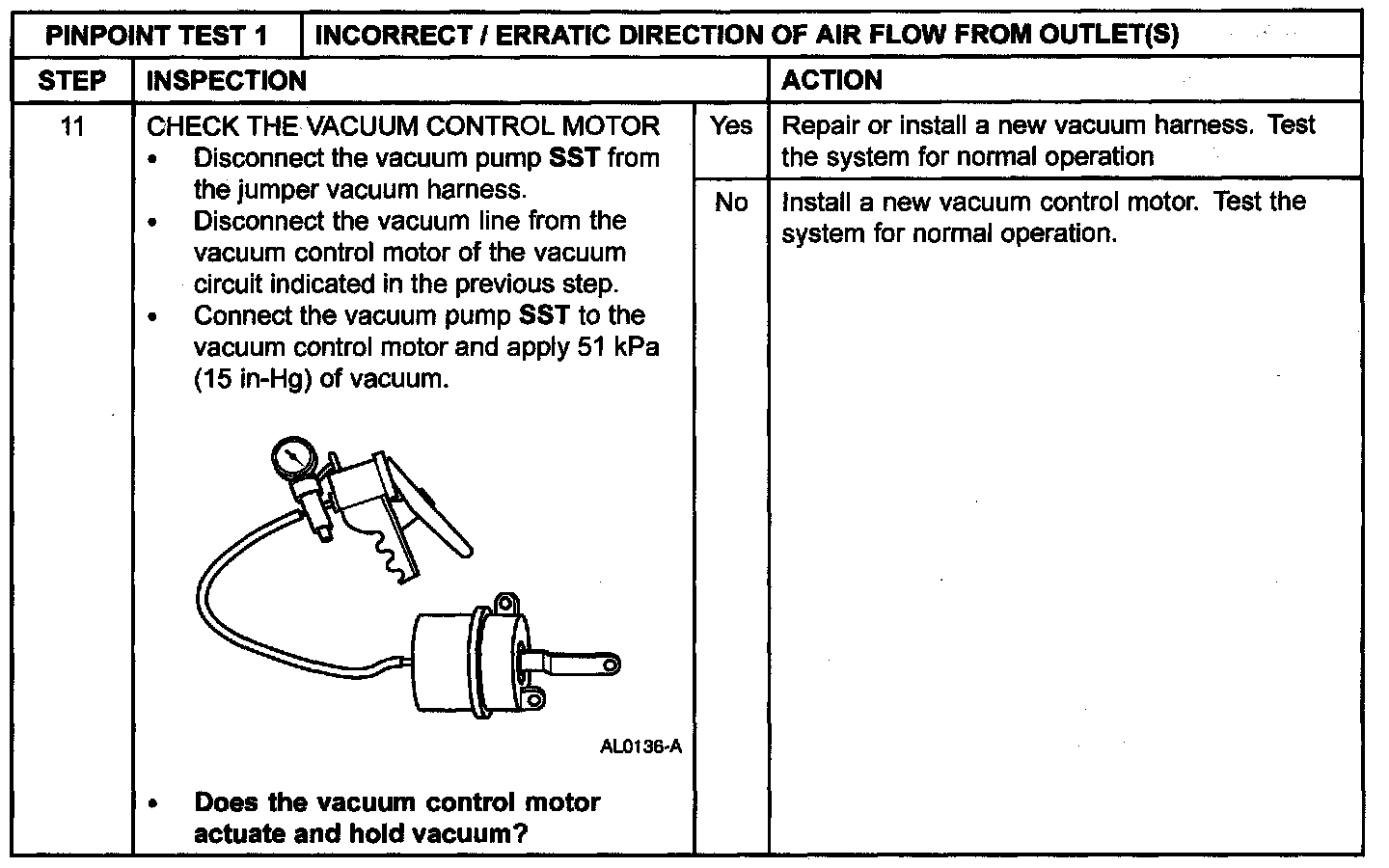

Step 11:

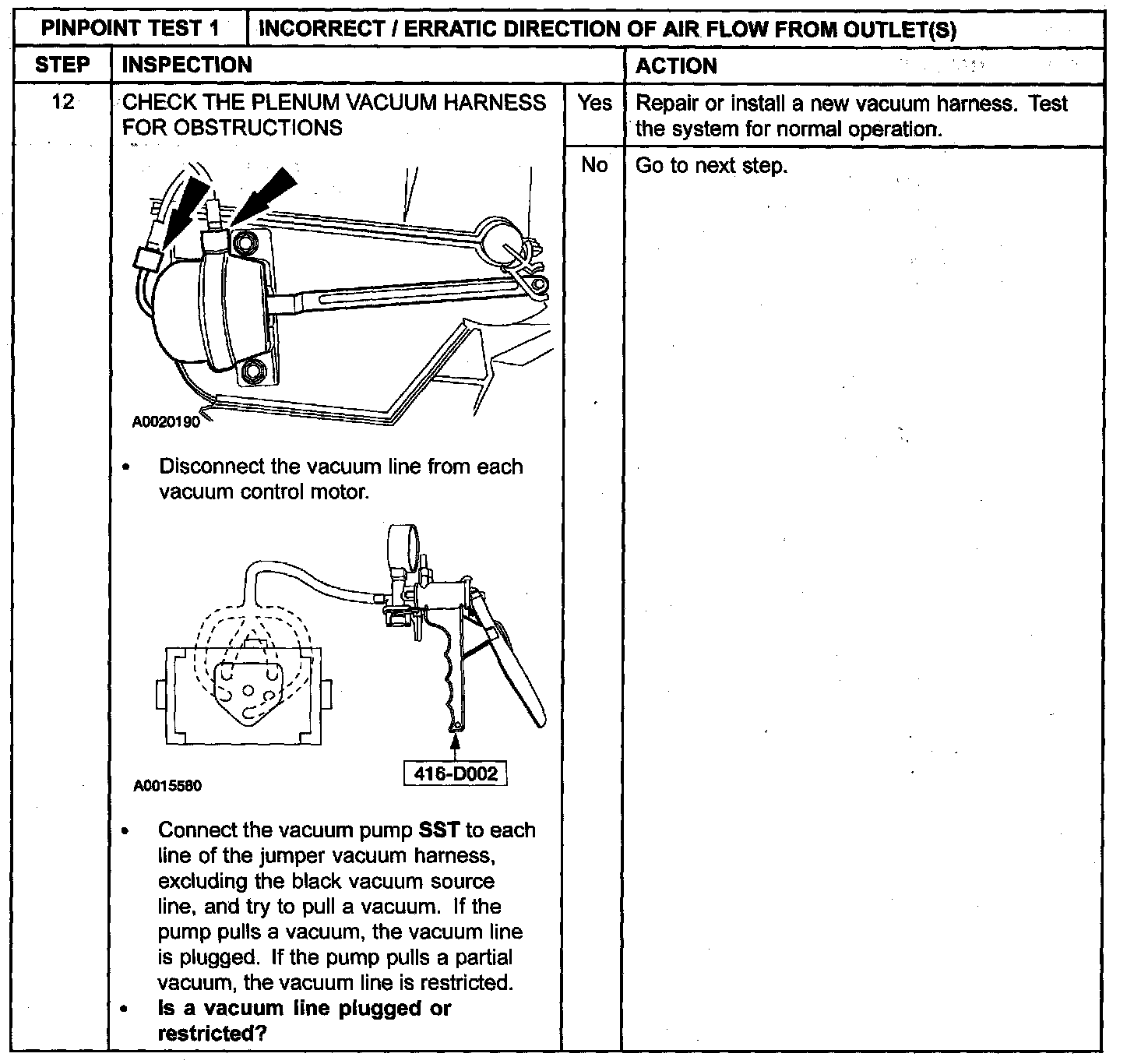

Step 12:

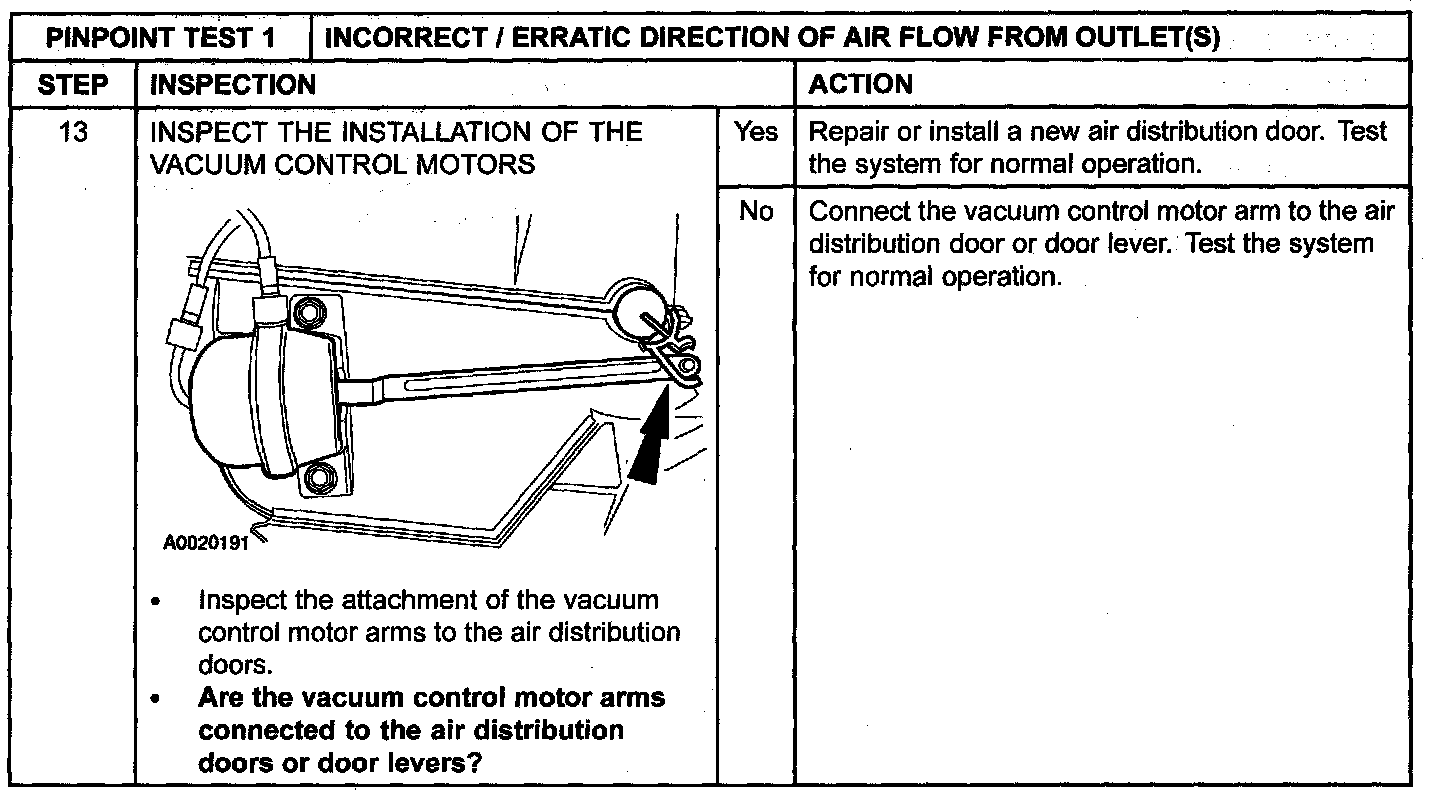

Step 13:
