Home >> Mazda >> 2008 >> B2300 L4-2.3L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Test 10: No Operation In Lower Speeds

Pinpoint Test 10: No Operation In Lower Speeds

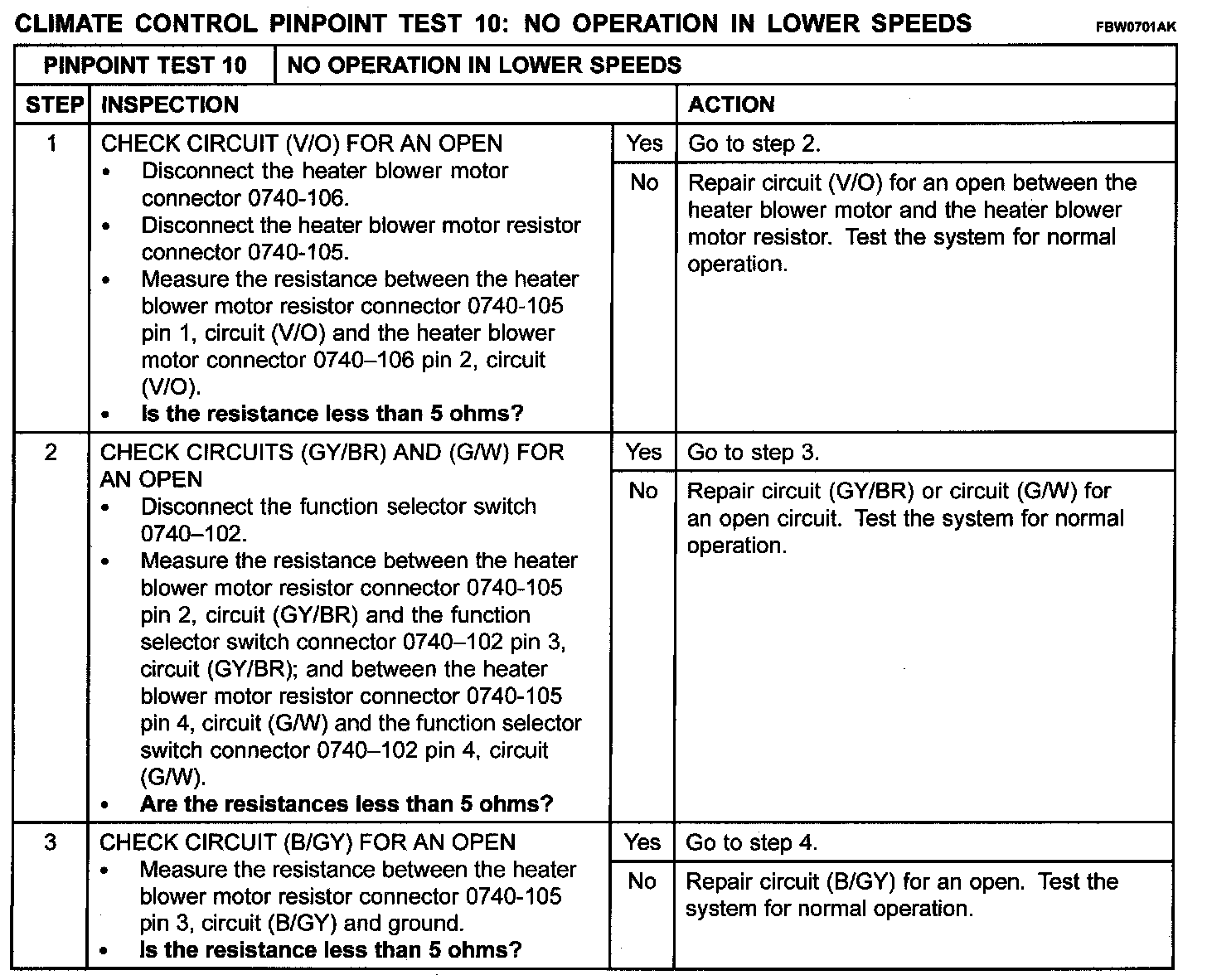

Step 1-Step 3:

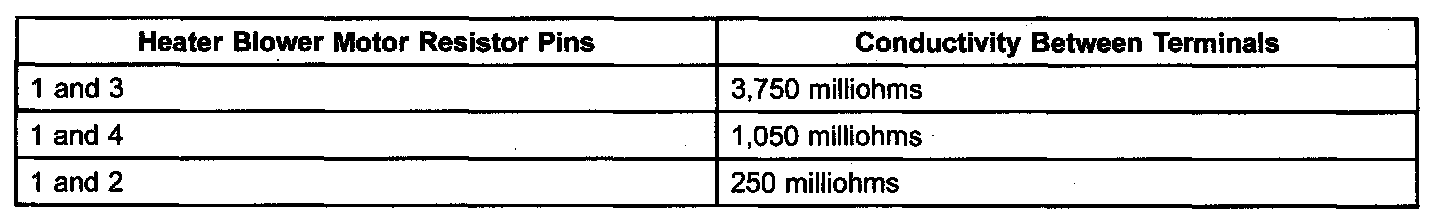

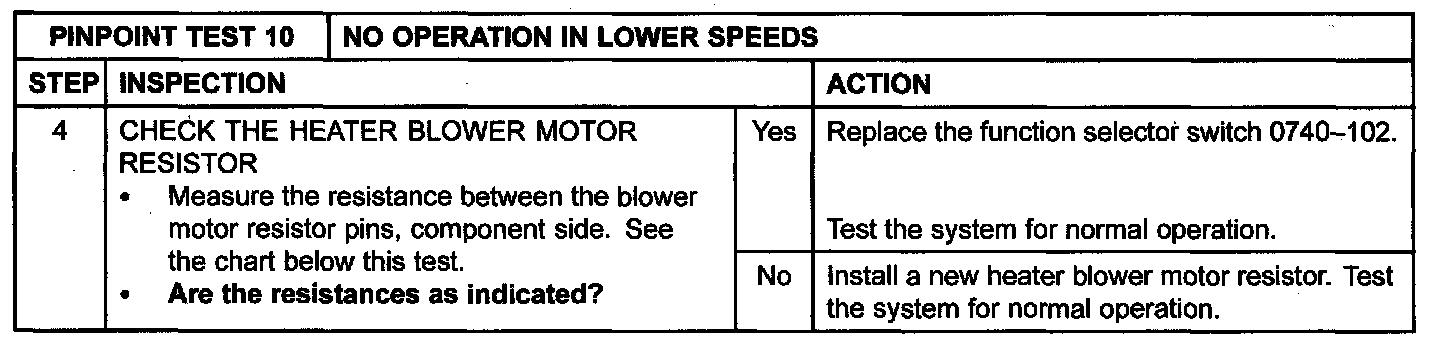

Step 4:
