Pinpoint Test 6: No Operation In All Temperature Settings
Pinpoint Test 6: No Operation In All Temperature Settings

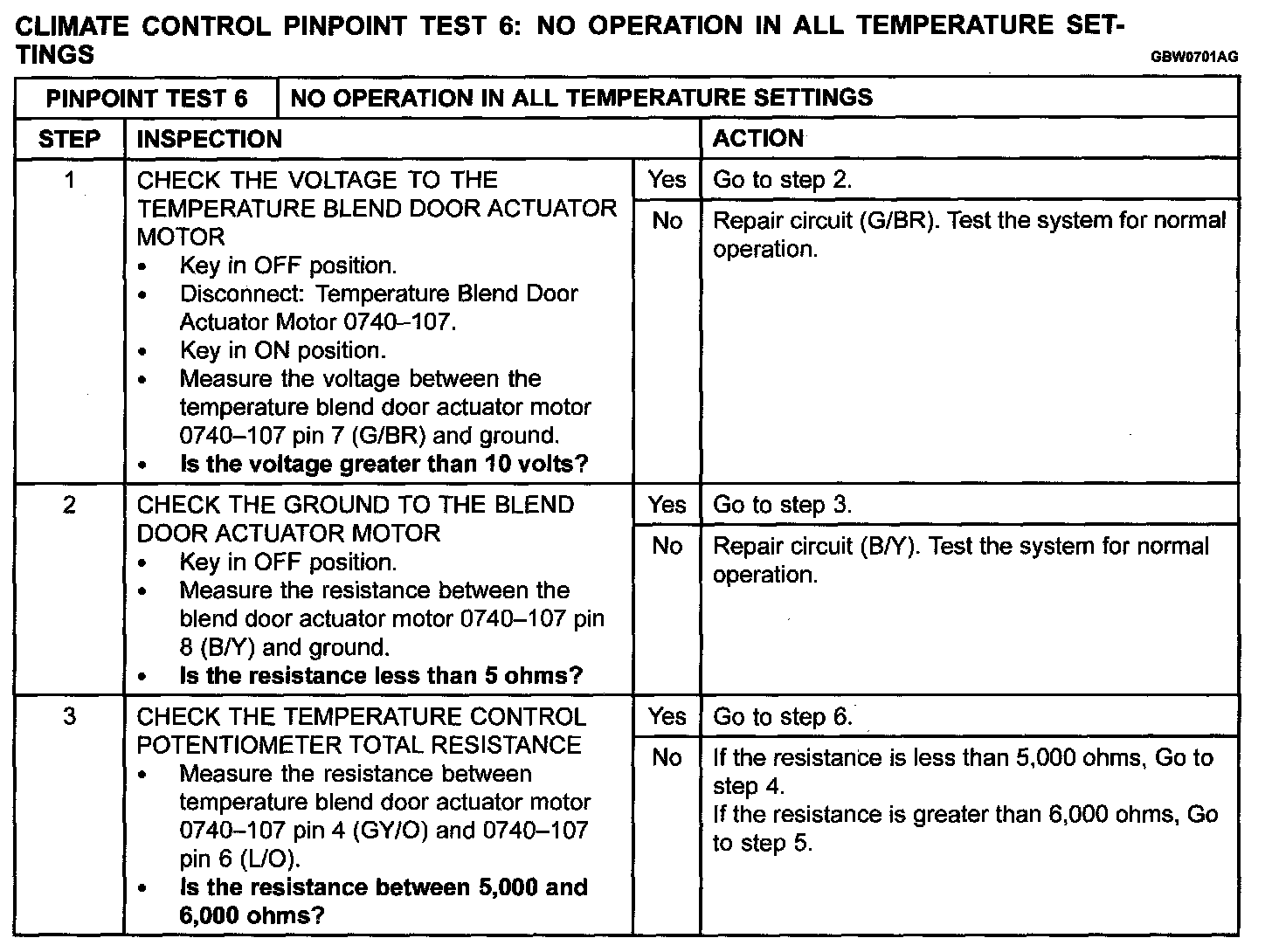

Step 1-Step 3:
Step 4-Step 8:

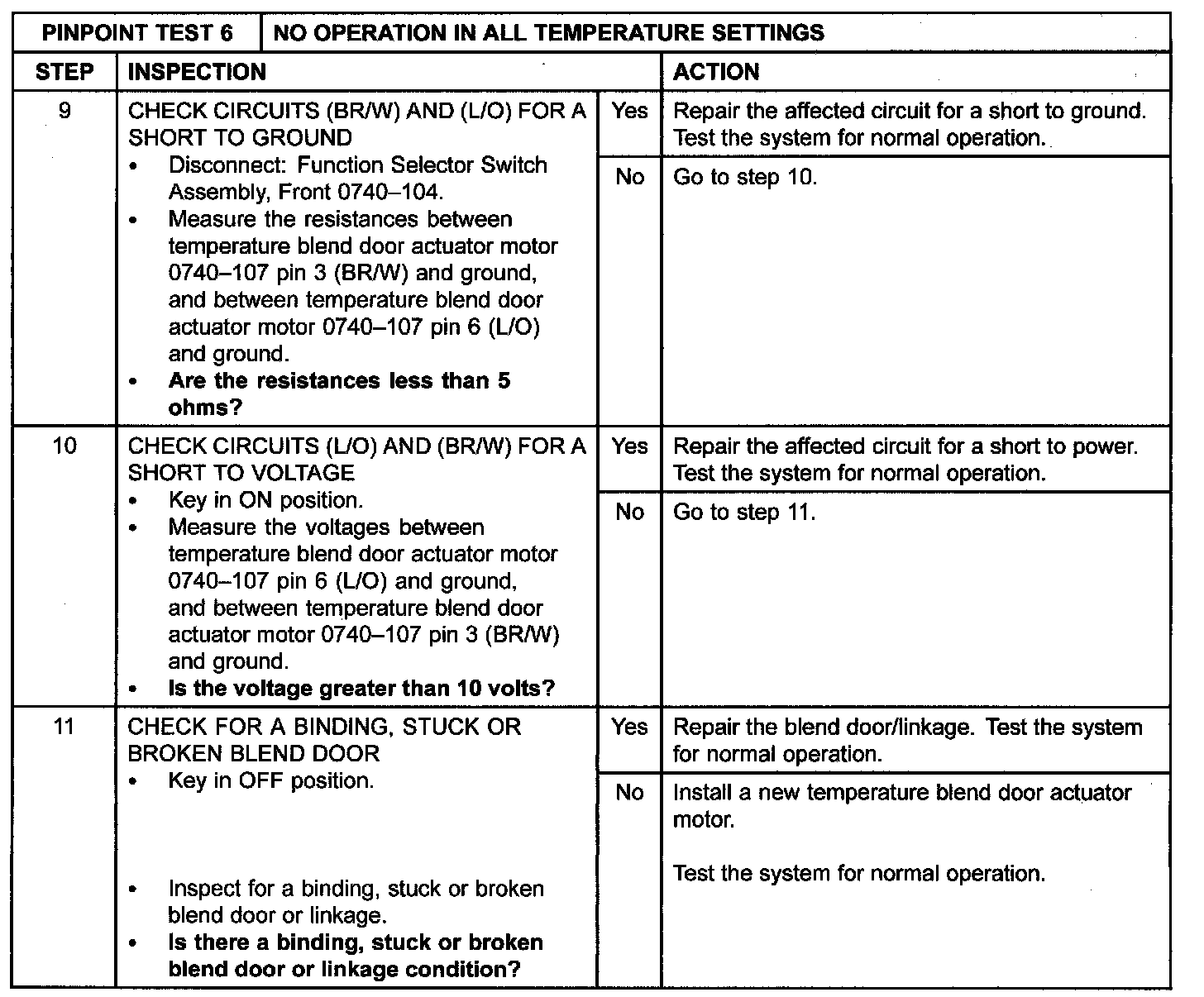

Step 9-Step 11:
