Home >> Mazda >> 2008 >> B2300 L4-2.3L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Test 7: Blower Motor Does Not Operate

Pinpoint Test 7: Blower Motor Does Not Operate

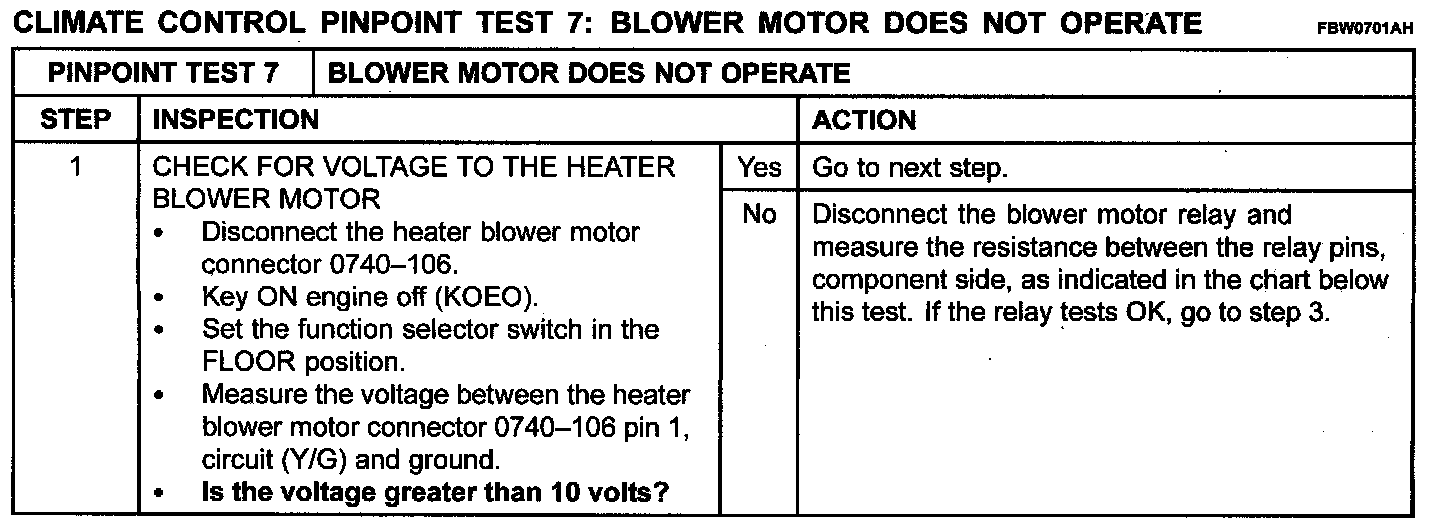

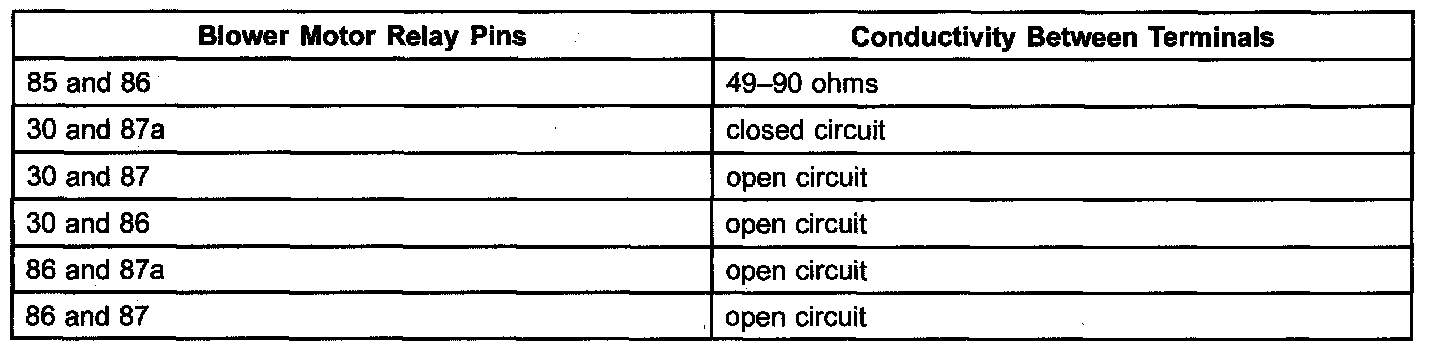

Step 1:

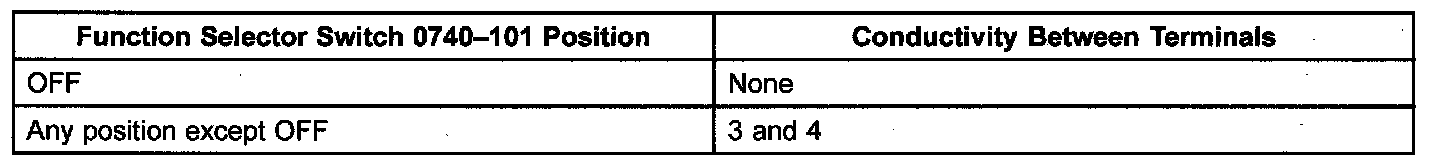

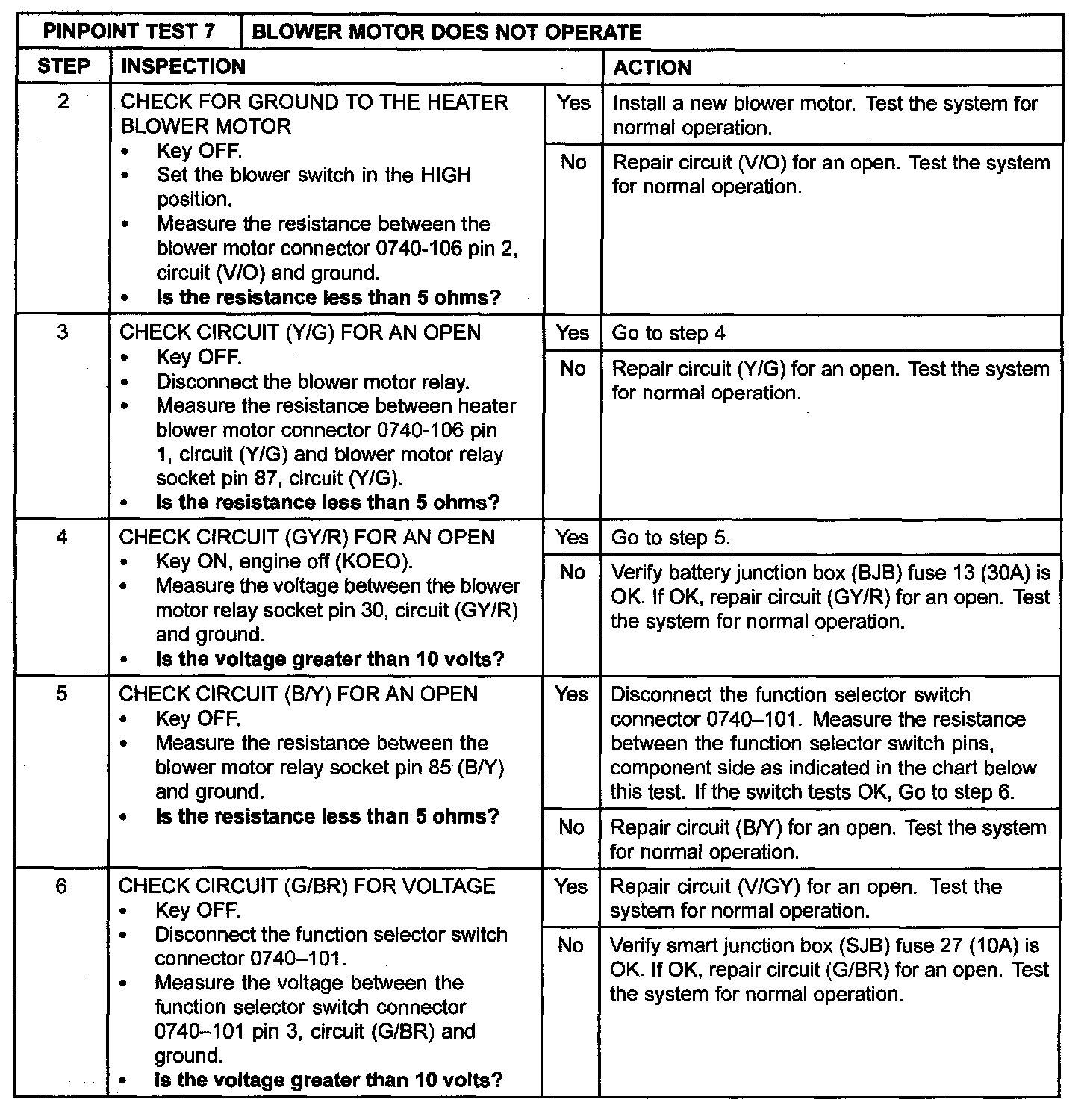

Step 2-Step 6:
