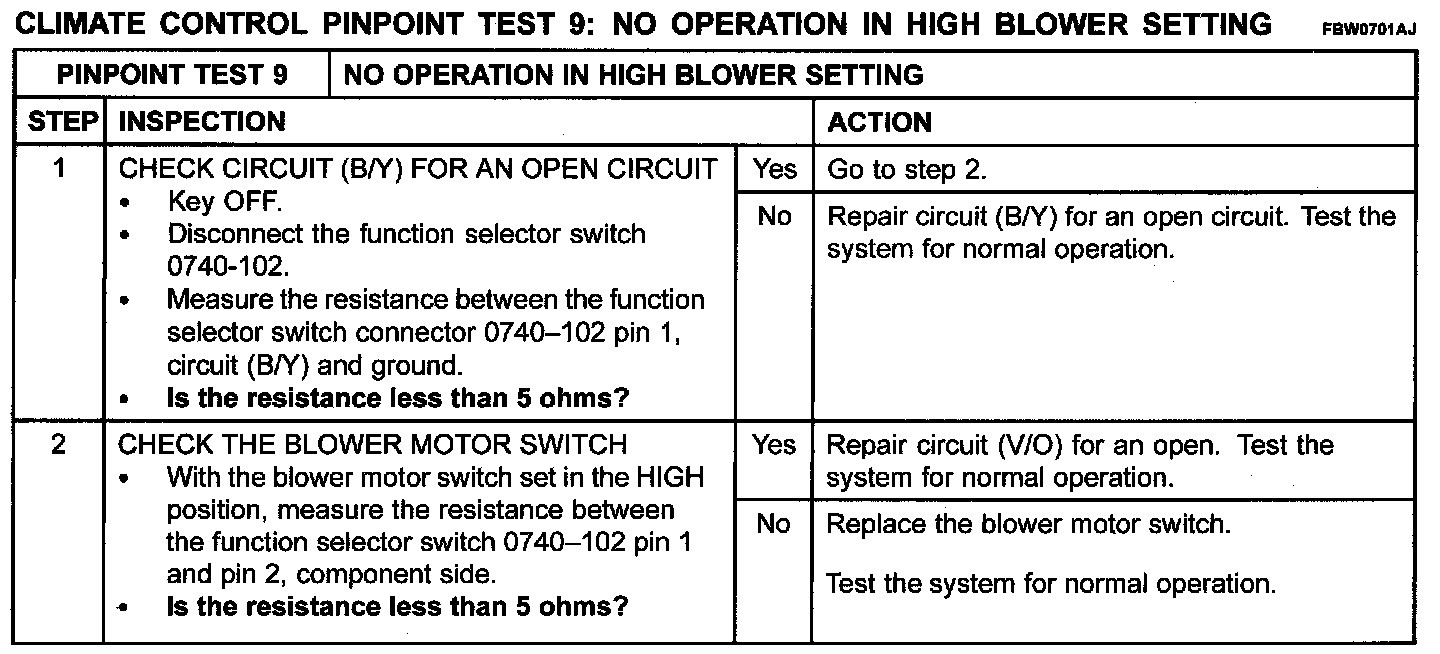

Pinpoint Test 9: No Operation In High Blower Setting
Pinpoint Test 9: No Operation In High Blower Setting
Step 1-Step 2:
