Instrument Cluster and Panel Illumination

INSTRUMENT CLUSTER AND PANEL ILLUMINATION

Inspection and Verification
1. Verify the customer concern.
2. Visually inspect the following for obvious signs of mechanical or electrical damage.

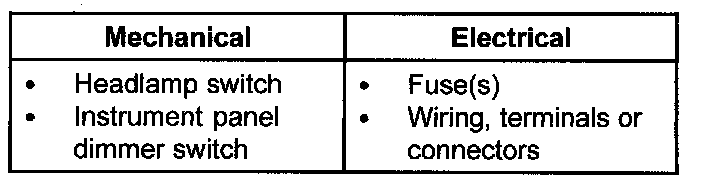

Visual Inspection Chart:

3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
4. If the fault is not visually evident, verify the symptom, see SYMPTOM TROUBLESHOOTING CHART - INSTRUMENT CLUSTER AND PANEL ILLUMINATION. Symptom Related Diagnostic Procedures
