Connector End Views

Connector End Views-Reversing Lamps:

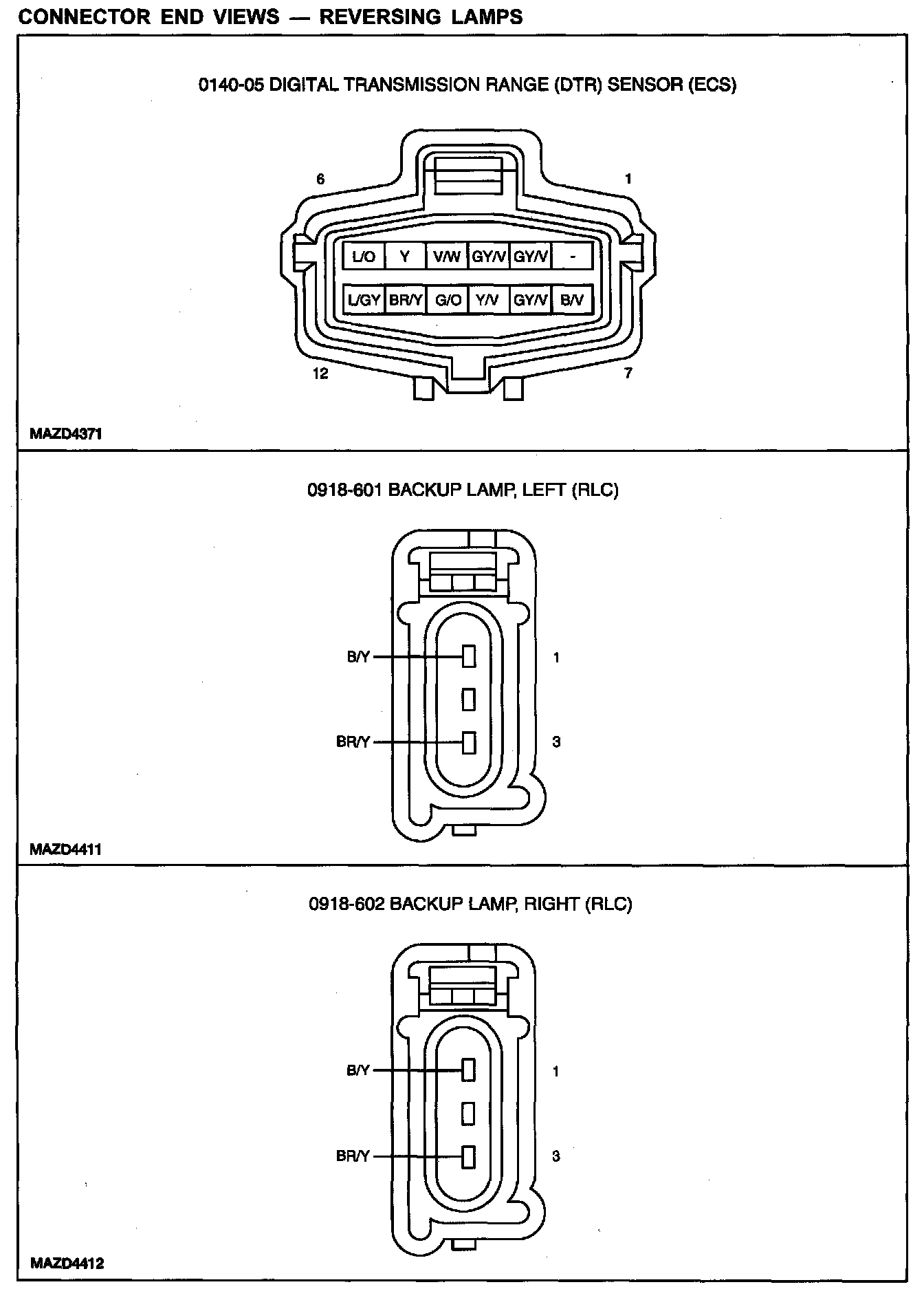

Connector End Views-Reversing Lamps (Part 1):
