Connector End Views

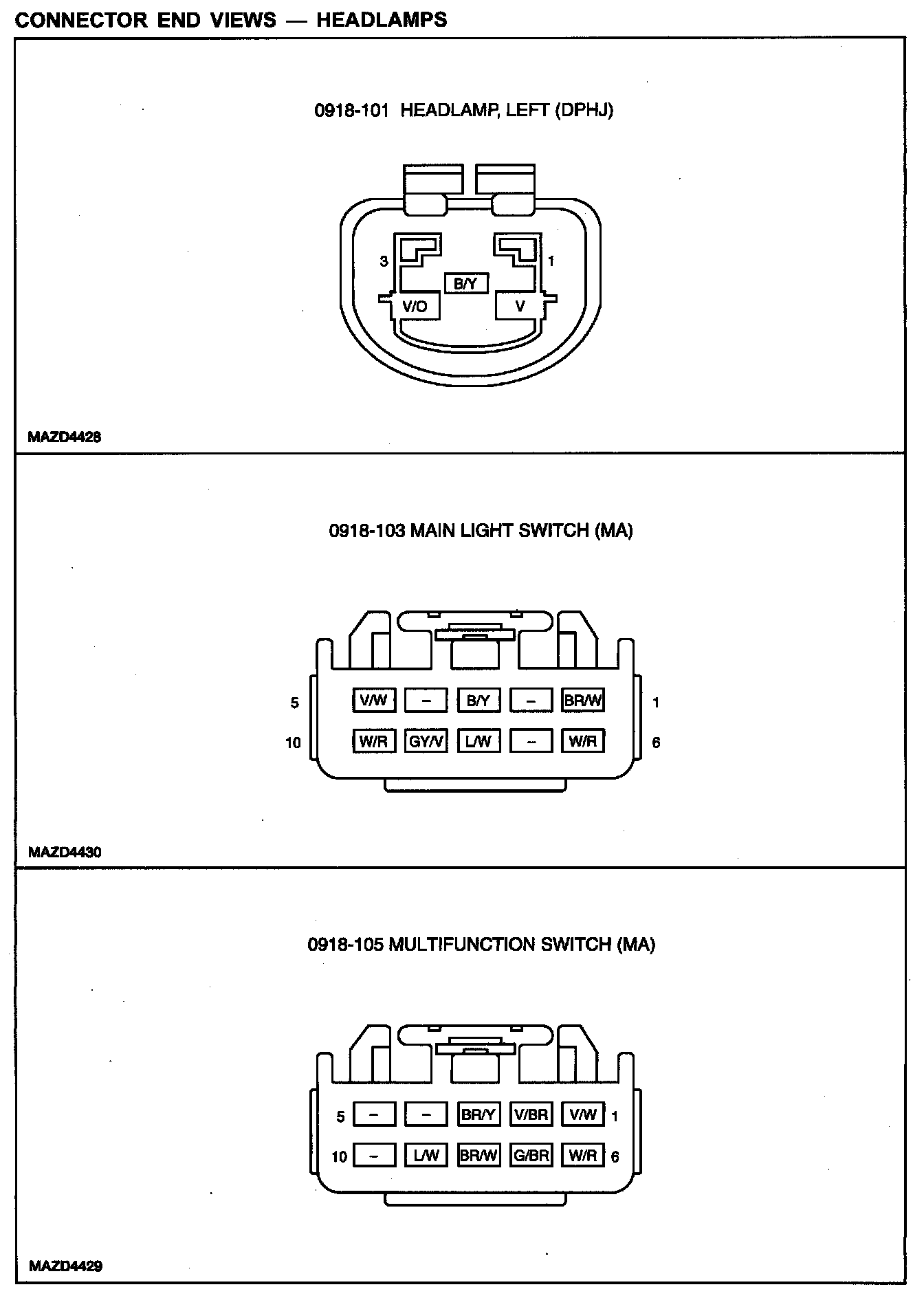

Connector End Views-Headlamps (Part 1):

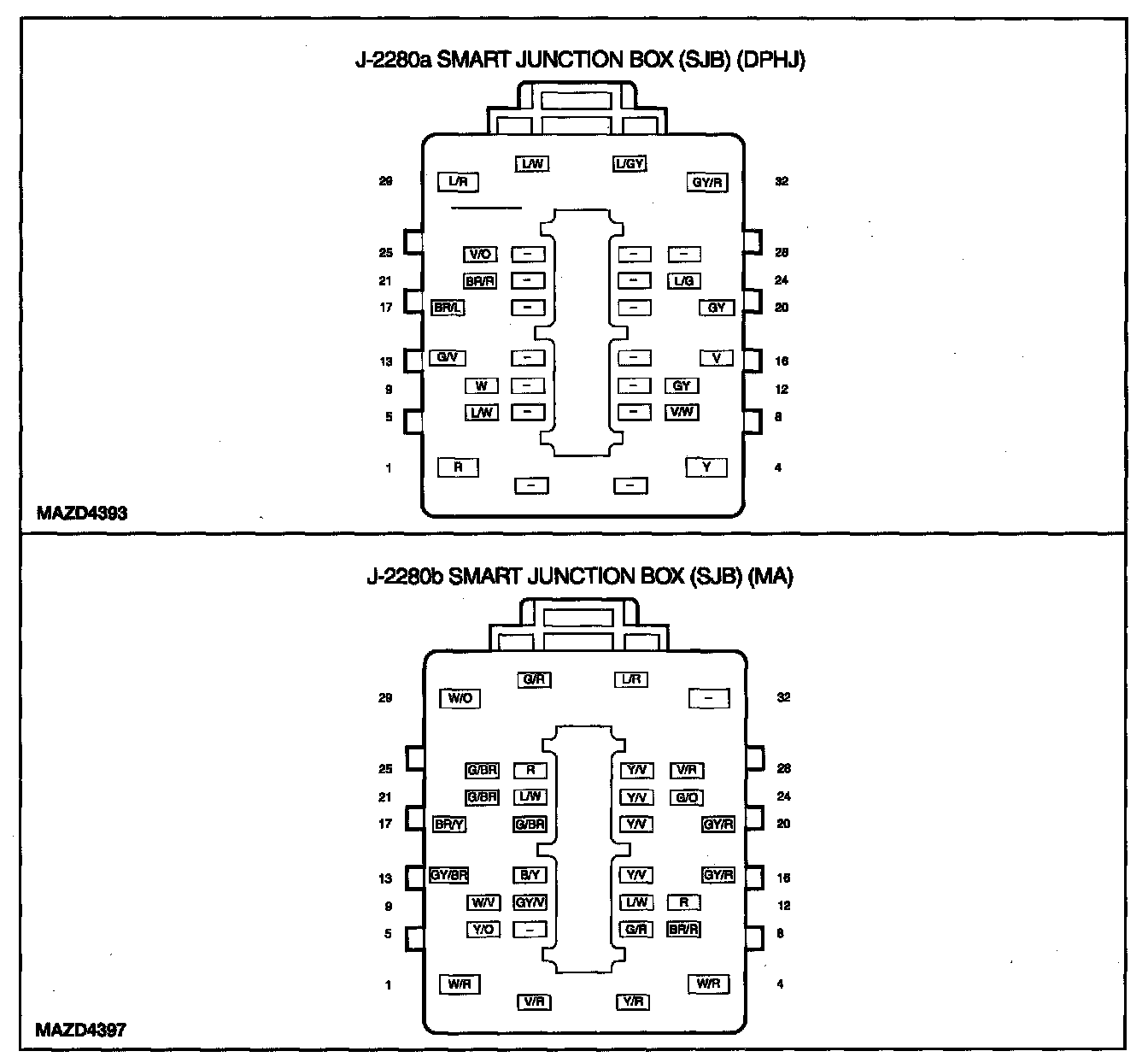

Connector End Views-Headlamps (Part 2):

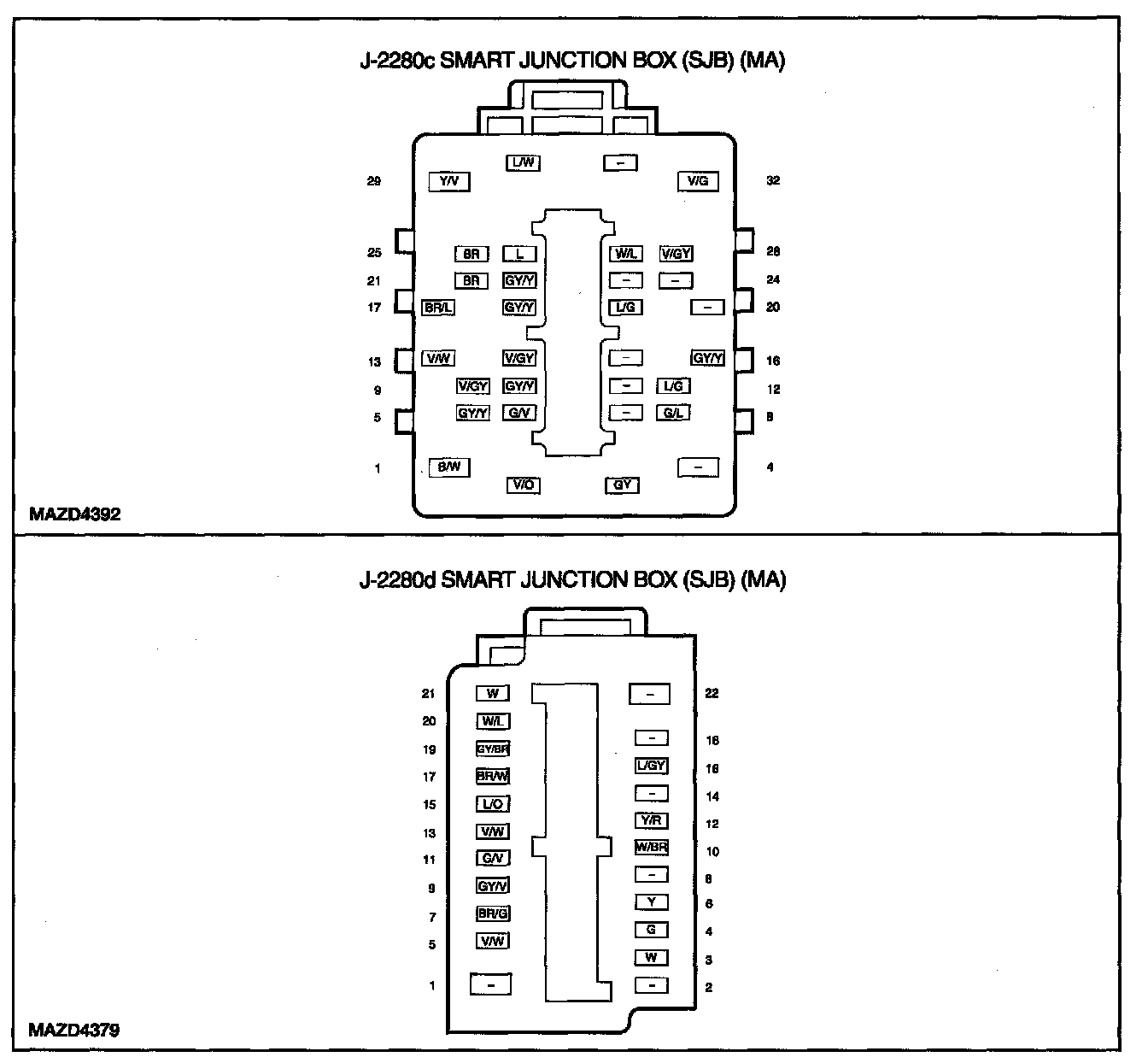

Connector End Views-Headlamps (Part 3):
