Horn: Service and Repair

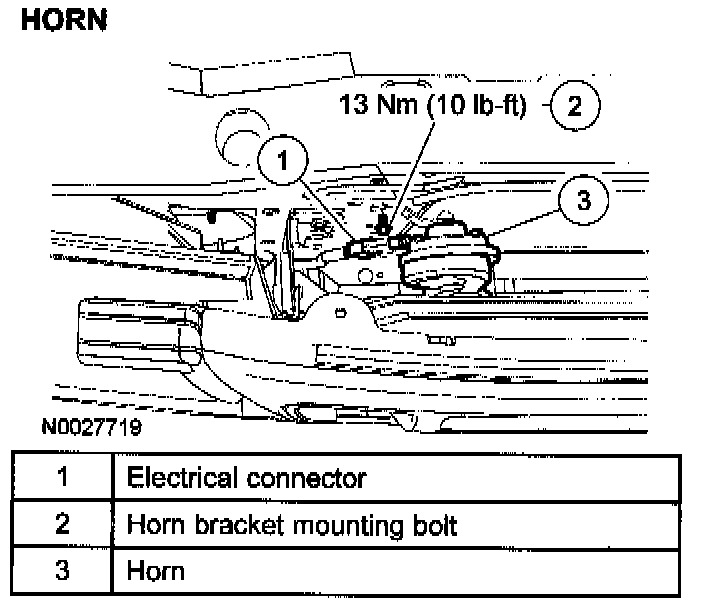

HORN
REMOVAL / INSTALLATION
1.
Remove the bolt and the
horn
.
1.
Disconnect the electrical connector.
2.
Install in the reverse order of removal.
