Home >> Mazda >> 2008 >> B2300 L4-2.3L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> PID/Data Monitor Item Table >> Table 2

Table 2

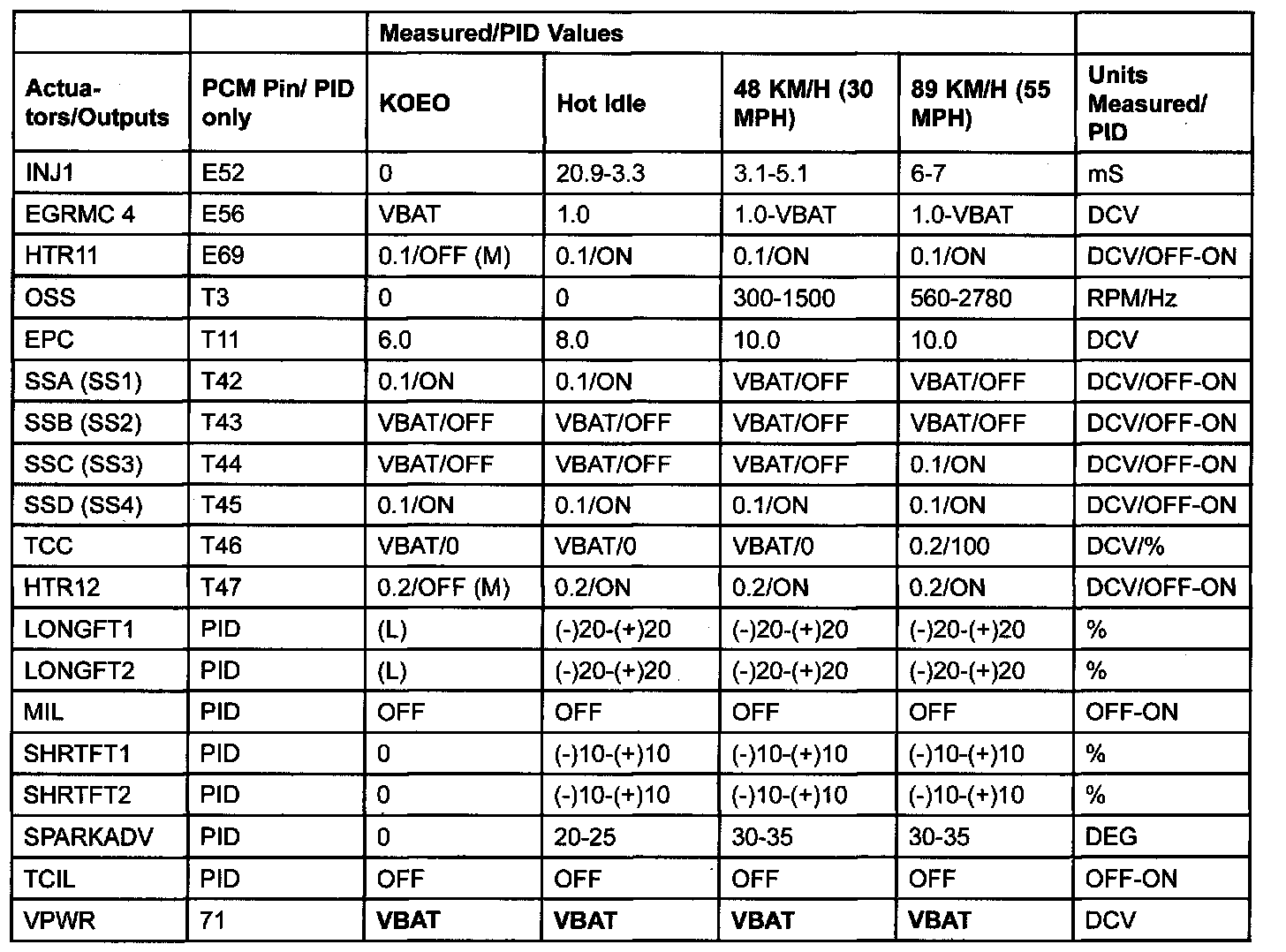

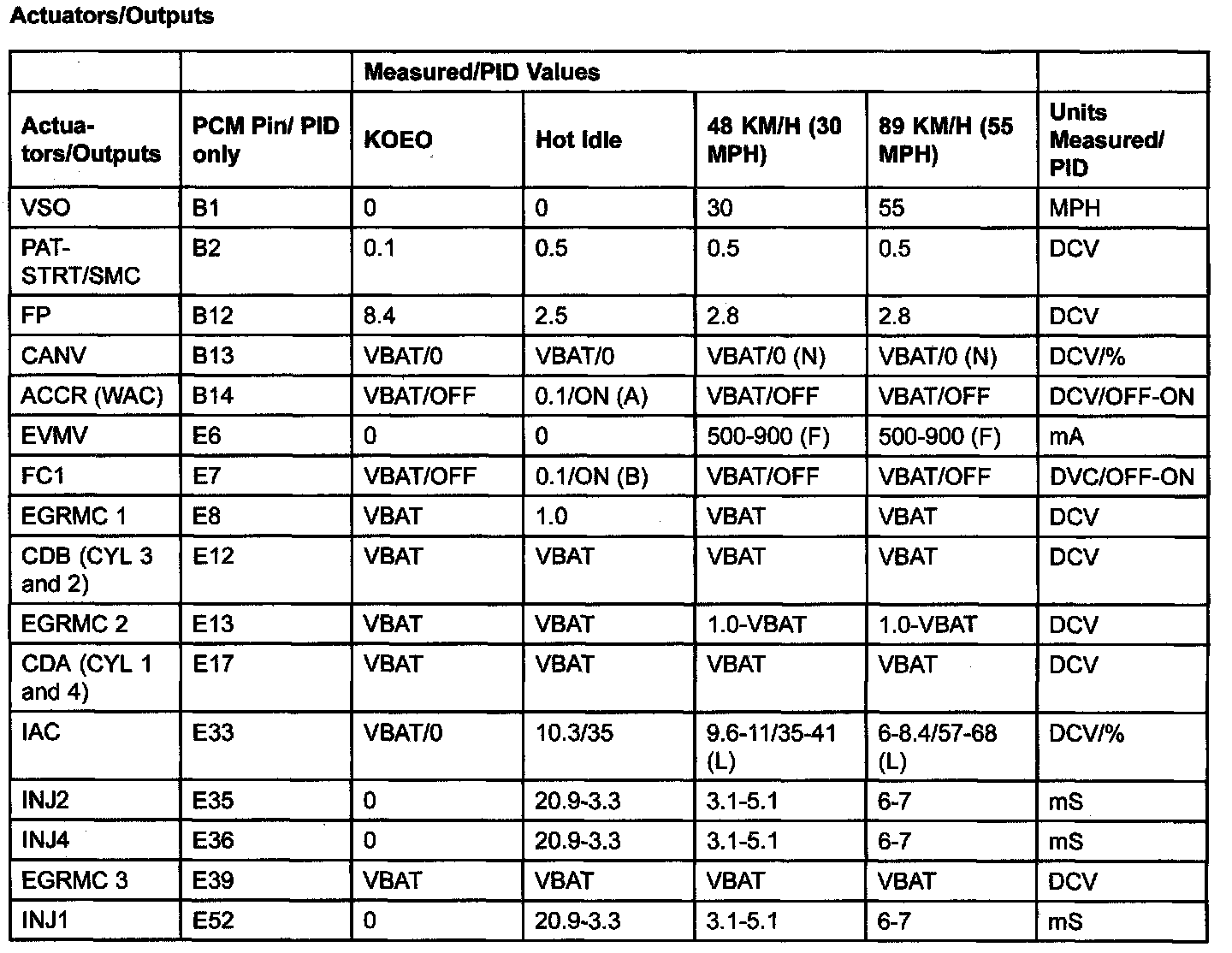

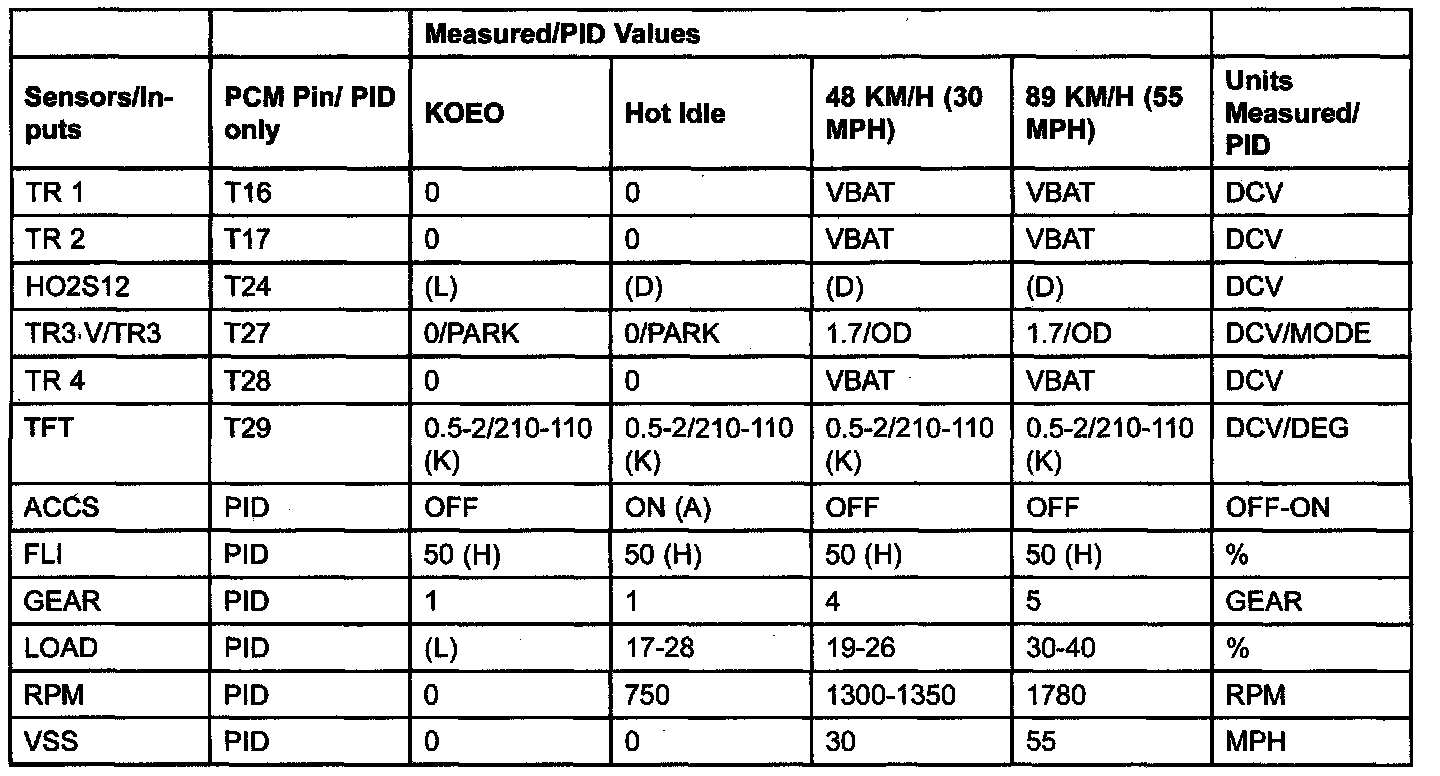

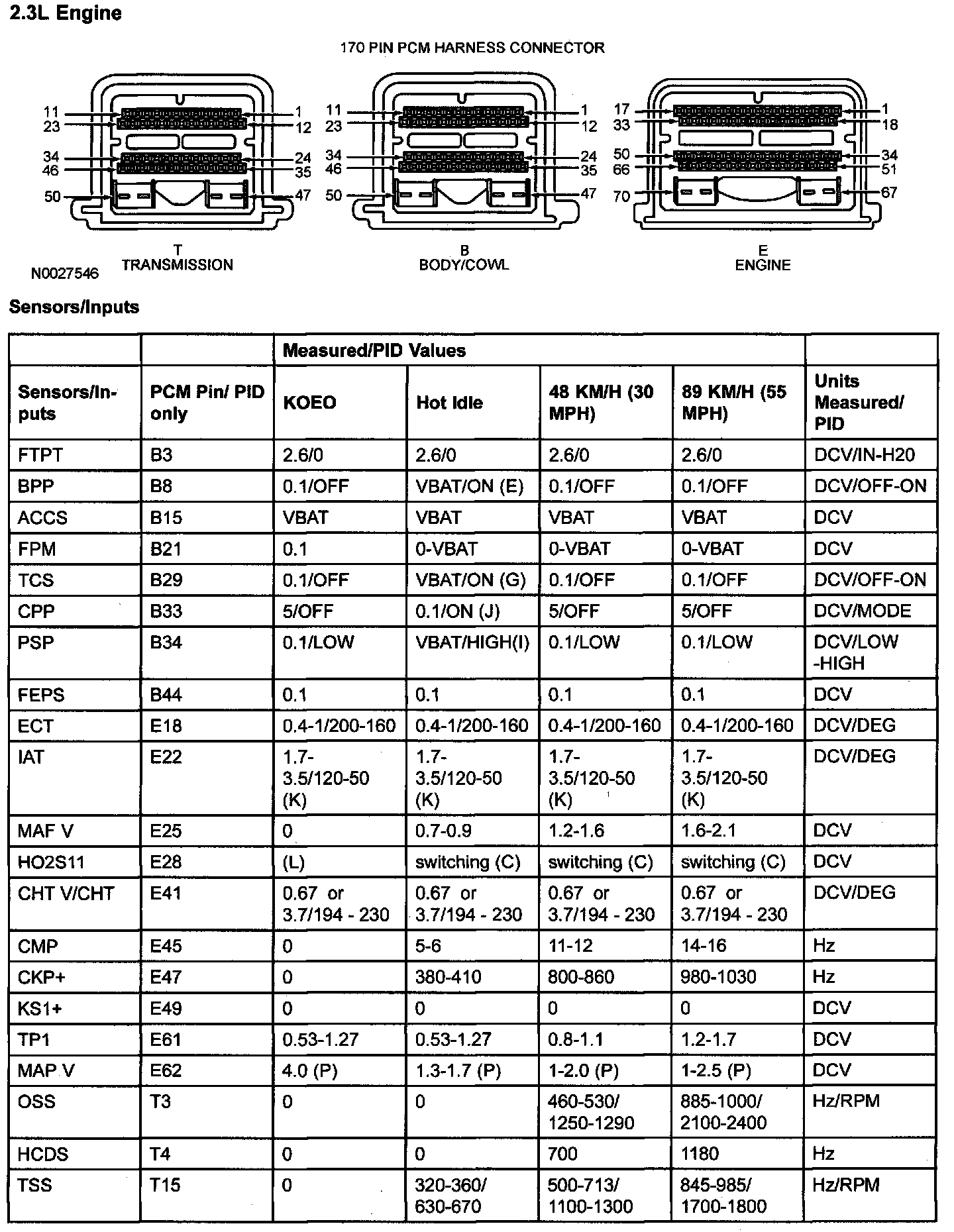

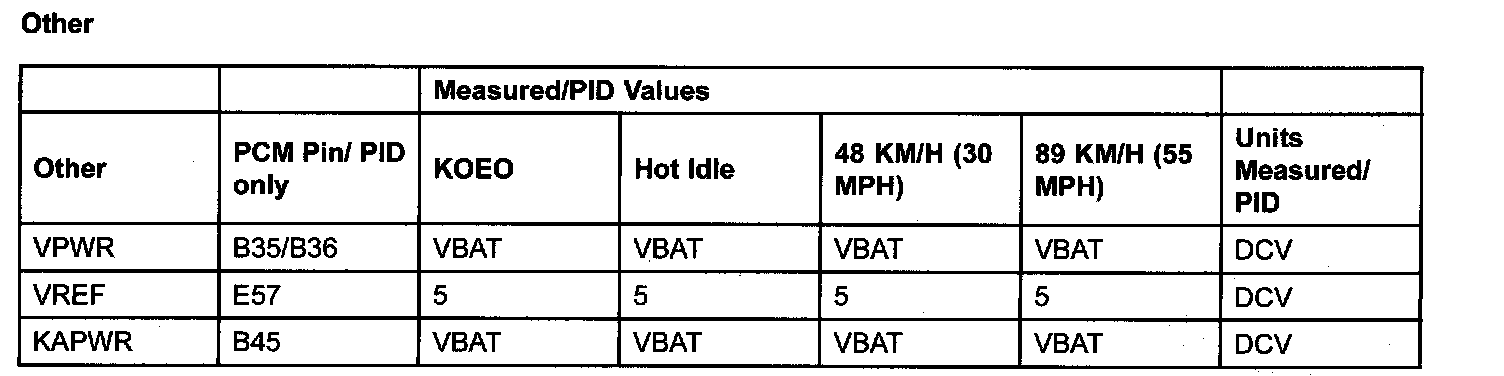

PID/DATA MONITOR ITEM TABLE

2.3L
