Operation CHARM: Car repair manuals for everyone.
Home >> Mazda >> 2008 >> B2300 L4-2.3L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Charts >> Emission Compliance

Emission Compliance

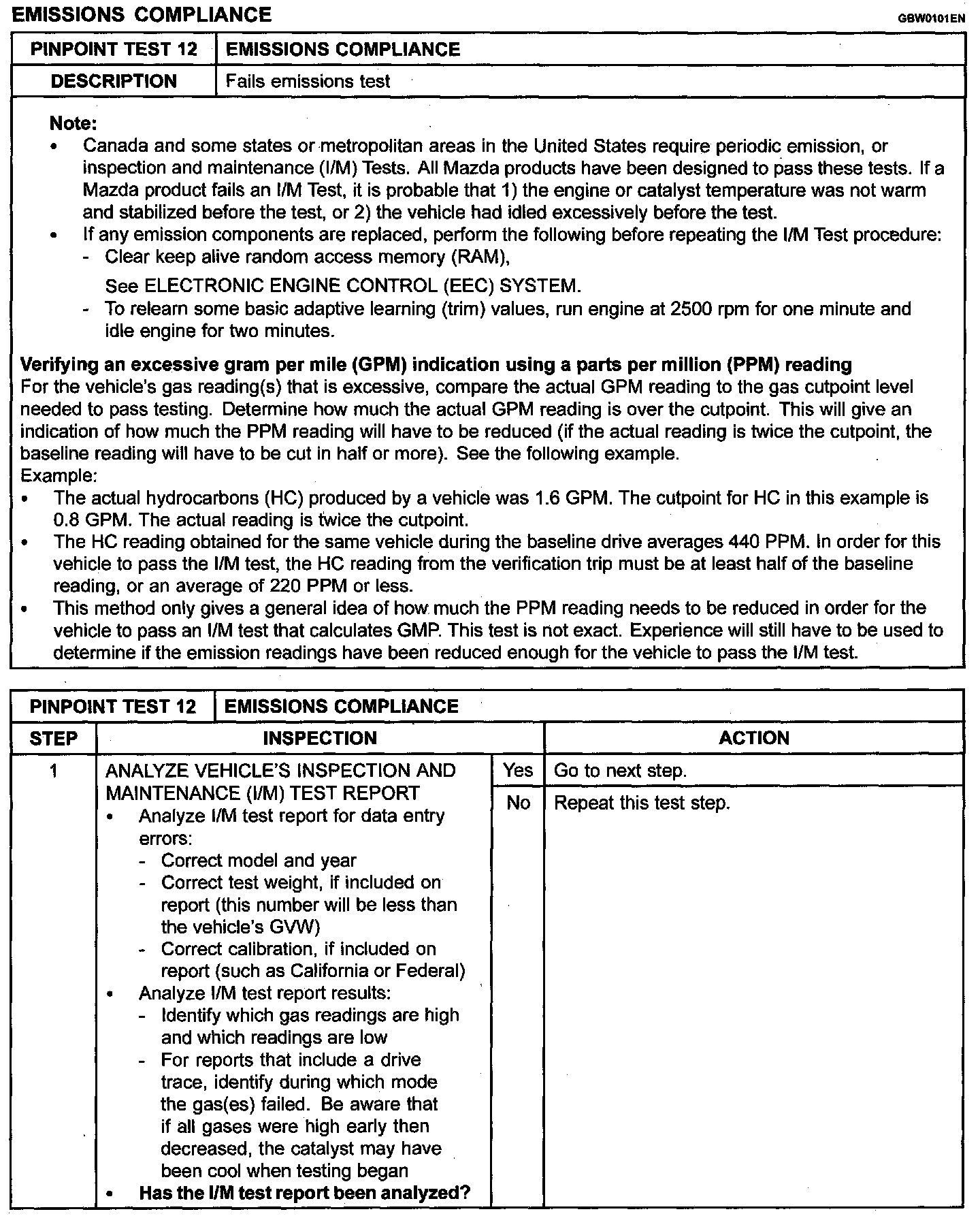

Step 1:



Step 2-Step 6:

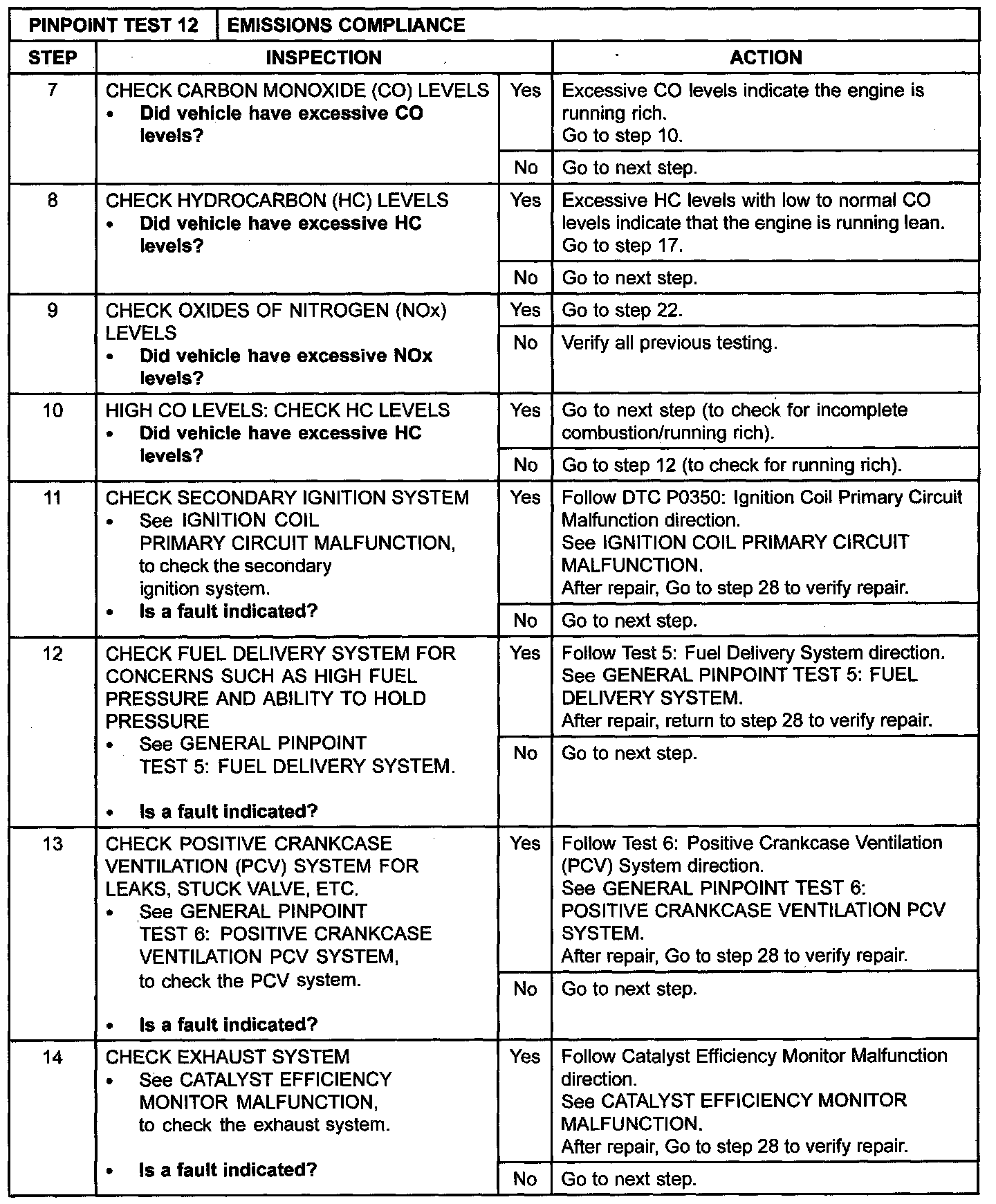

Step 7-Step 14:

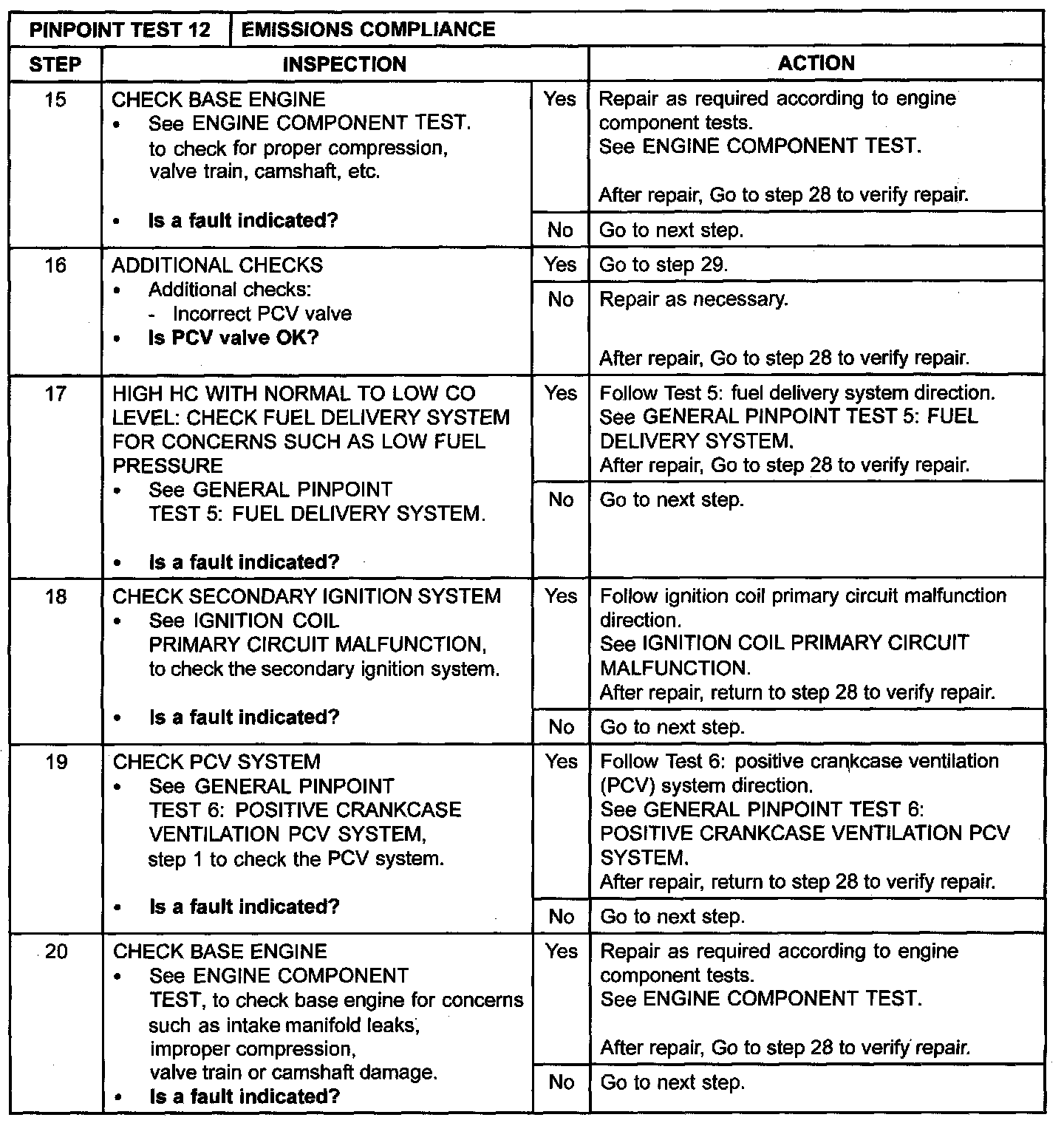

Step 15-Step 20:

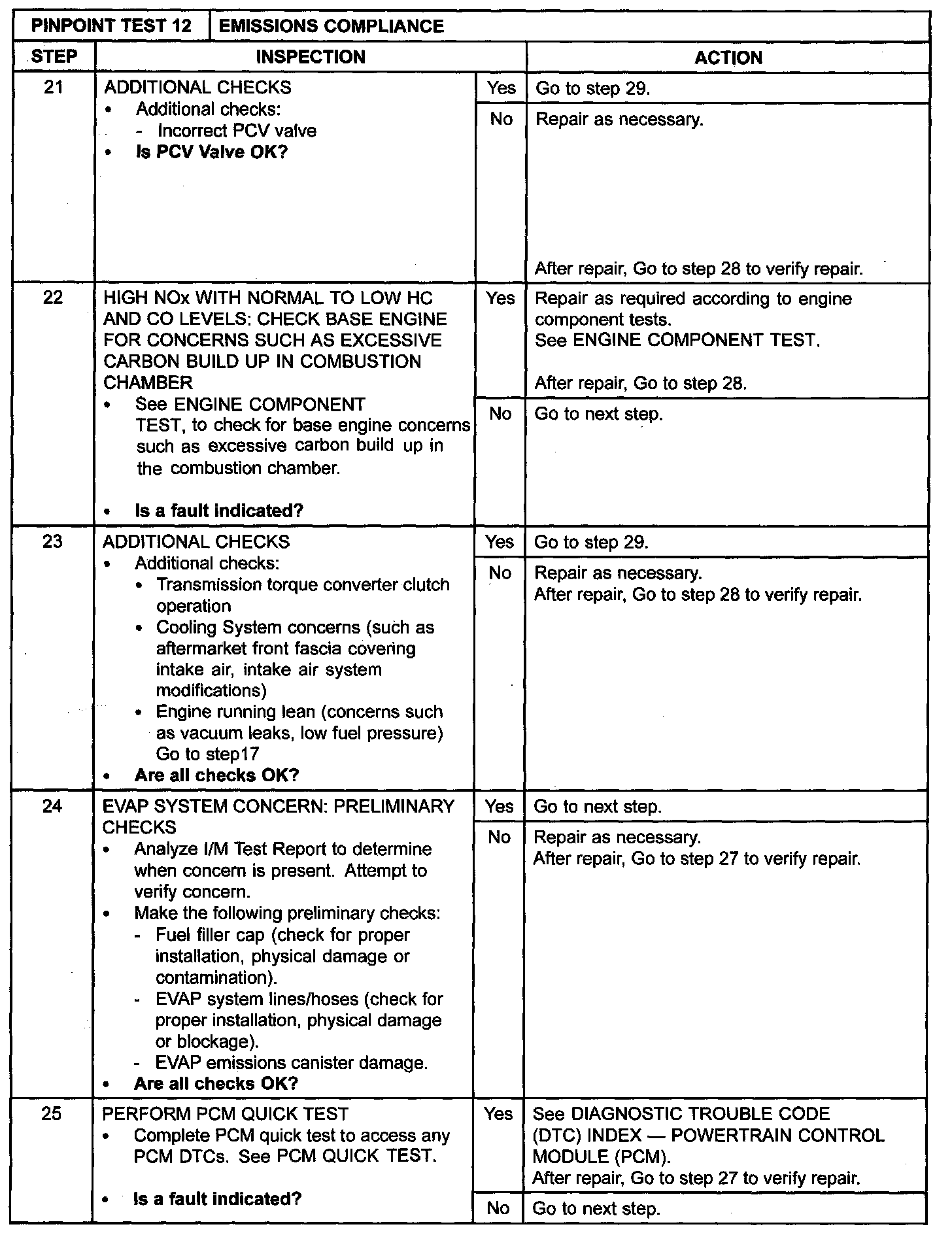

Step 21-Step 25:



Step 26-Step 27:

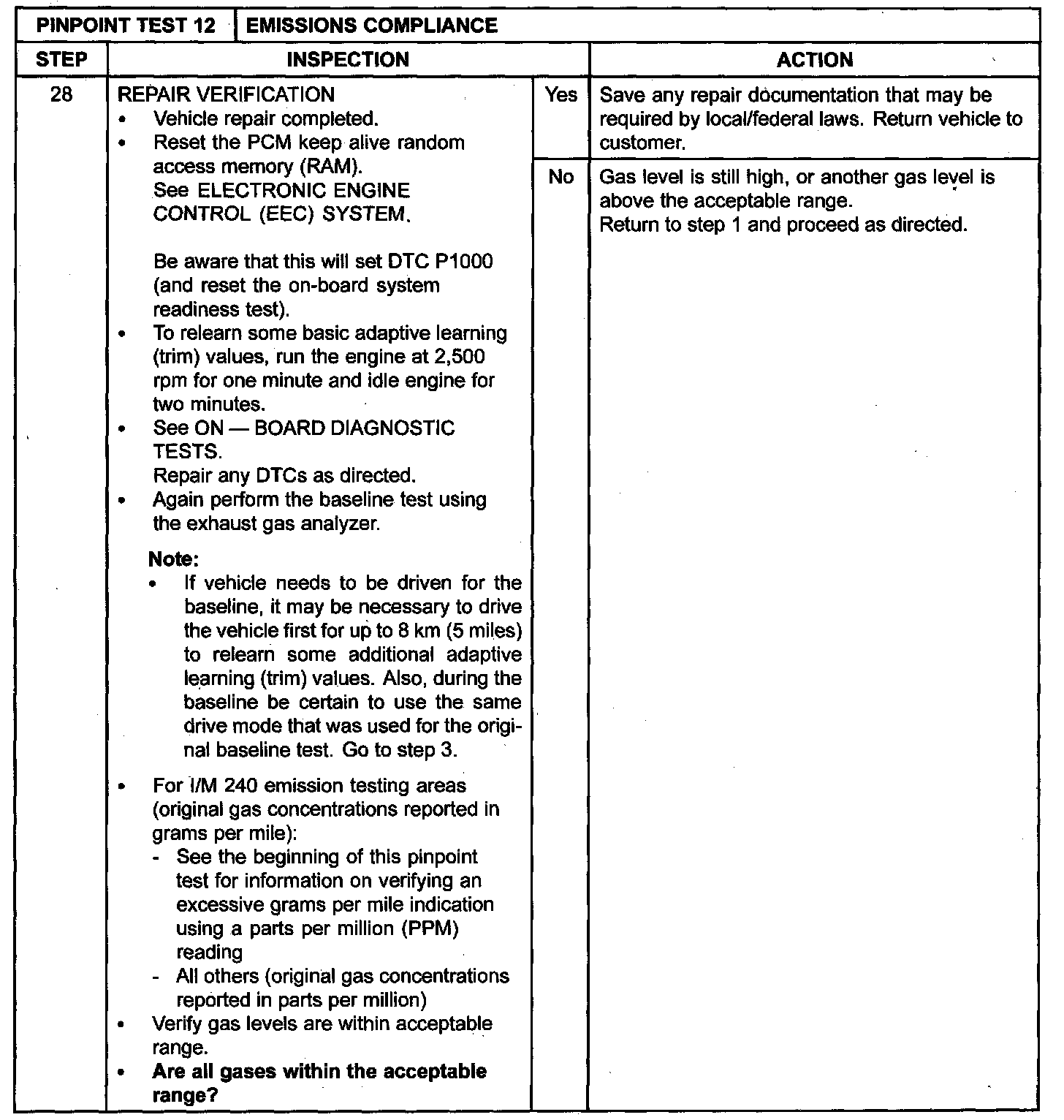

Step 28:

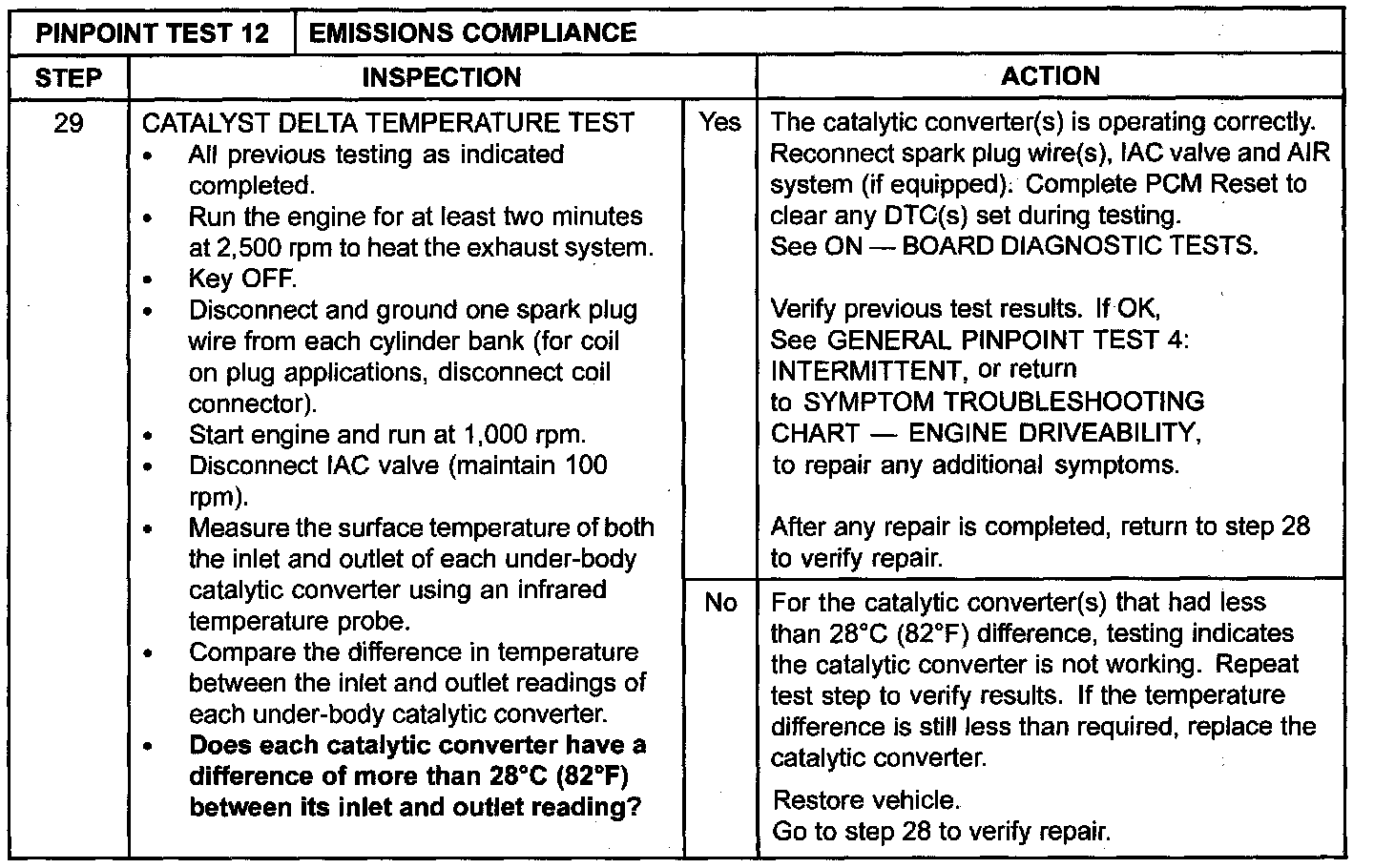

Step 29:
