EGR Tube: Service and Repair

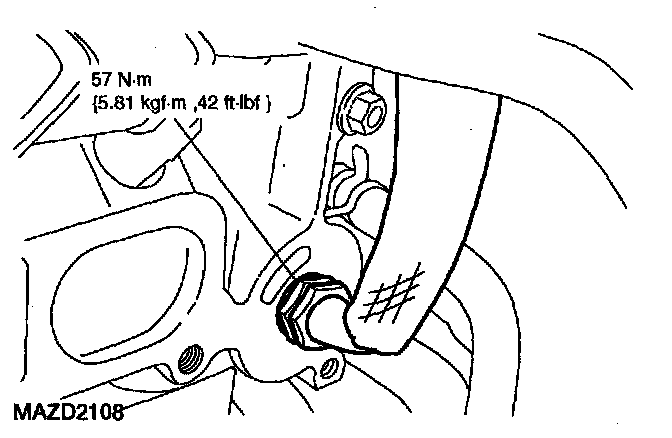

EGR VALVE TUBE REMOVAL / INSTALLATION -2.3L

1. Remove the intake manifold.

2. Remove the EGR tube.
3. To install, reverse the removal procedure.
