Ignition Coil Bracket Removal/Installation

IGNITION COIL BRACKET REMOVAL/INSTALLATION

1. Remove the ignition coil from the bracket. See IGNITION COIL PACK REMOVAL/INSTALLATION - 3.0L.

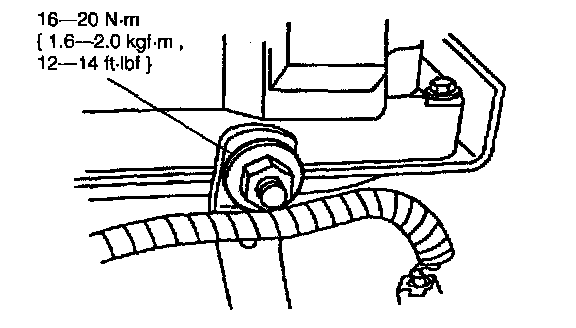

2. Remove the nut.

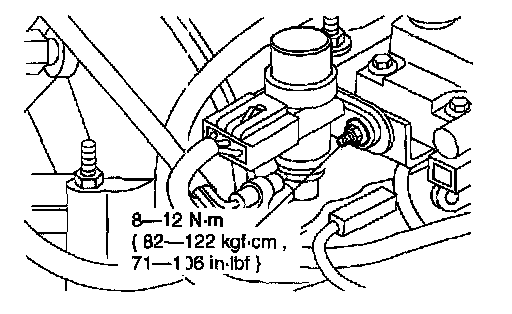

3. Remove the nut and position the EGR vacuum regulator solenoid out of the way.

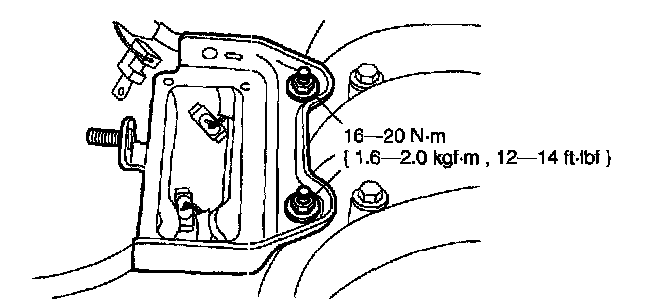

4. Remove the nuts and remove the ignition coil mounting bracket from the upper intake manifold.
5. Install in reverse order of removal.
