Rear Driveline Angles @ Curb (4X2) Specifications

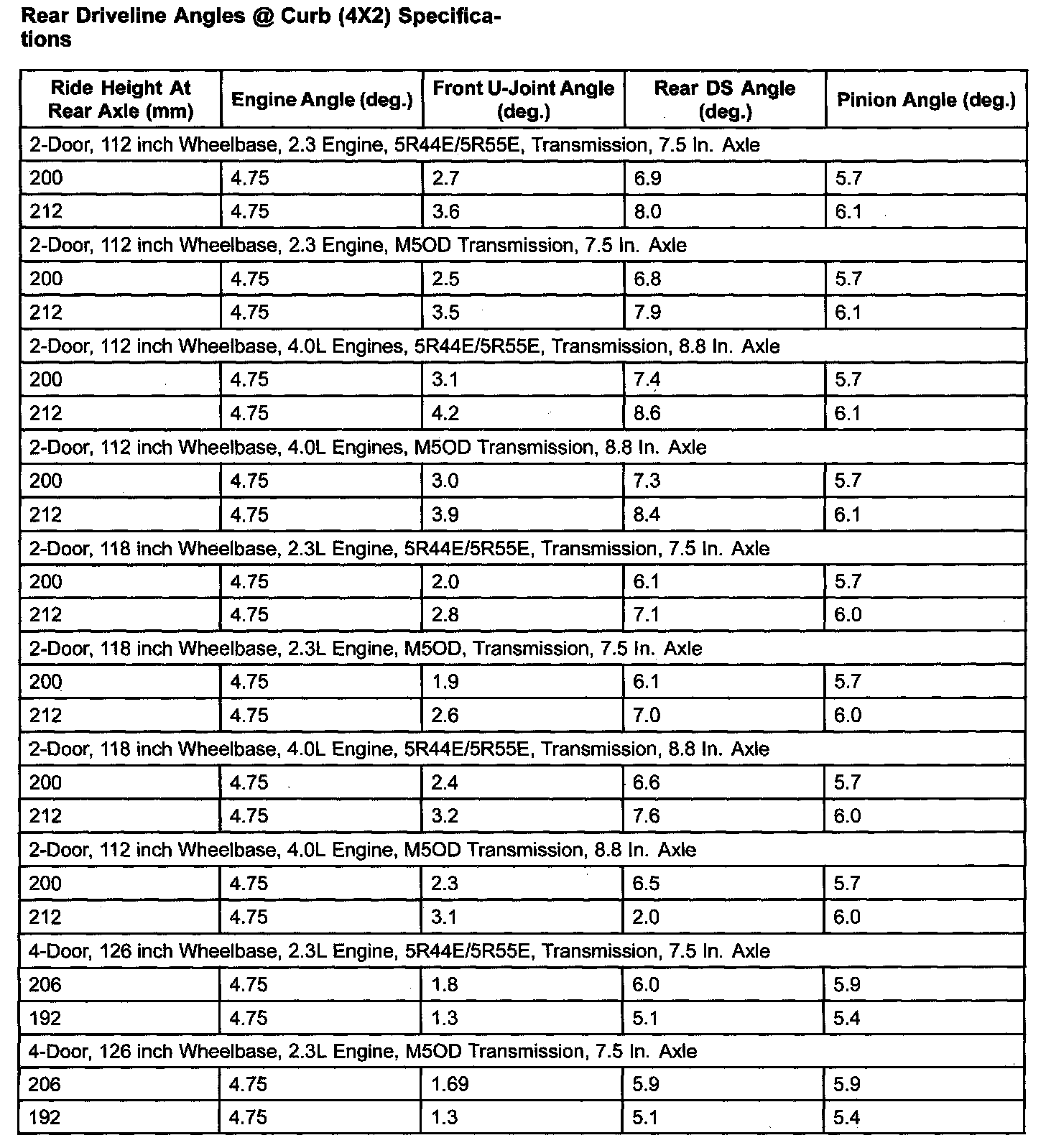

Rear Driveline Angles @ Curb (4X2) Specifications (Part 1):

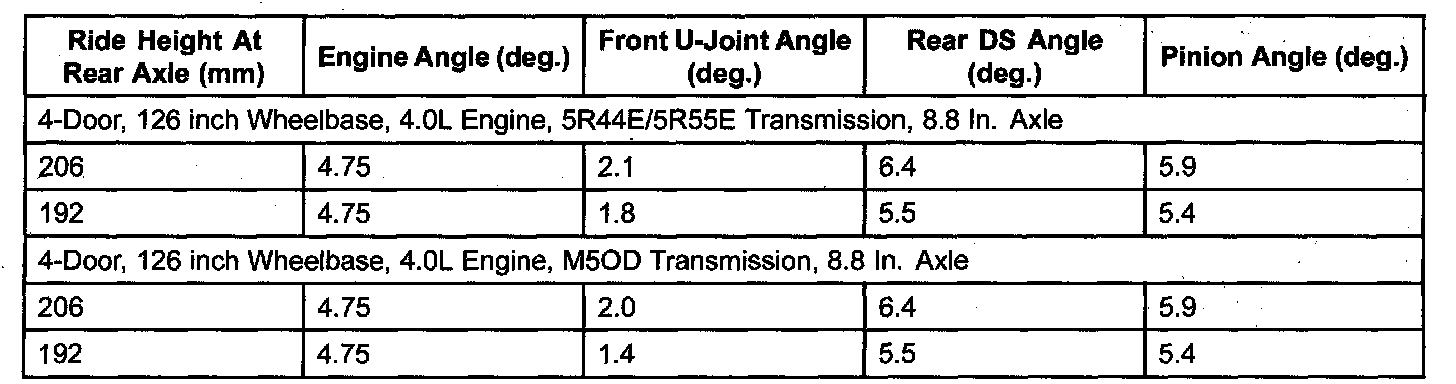

Rear Driveline Angles @ Curb (4X2) Specifications (Part 2):
